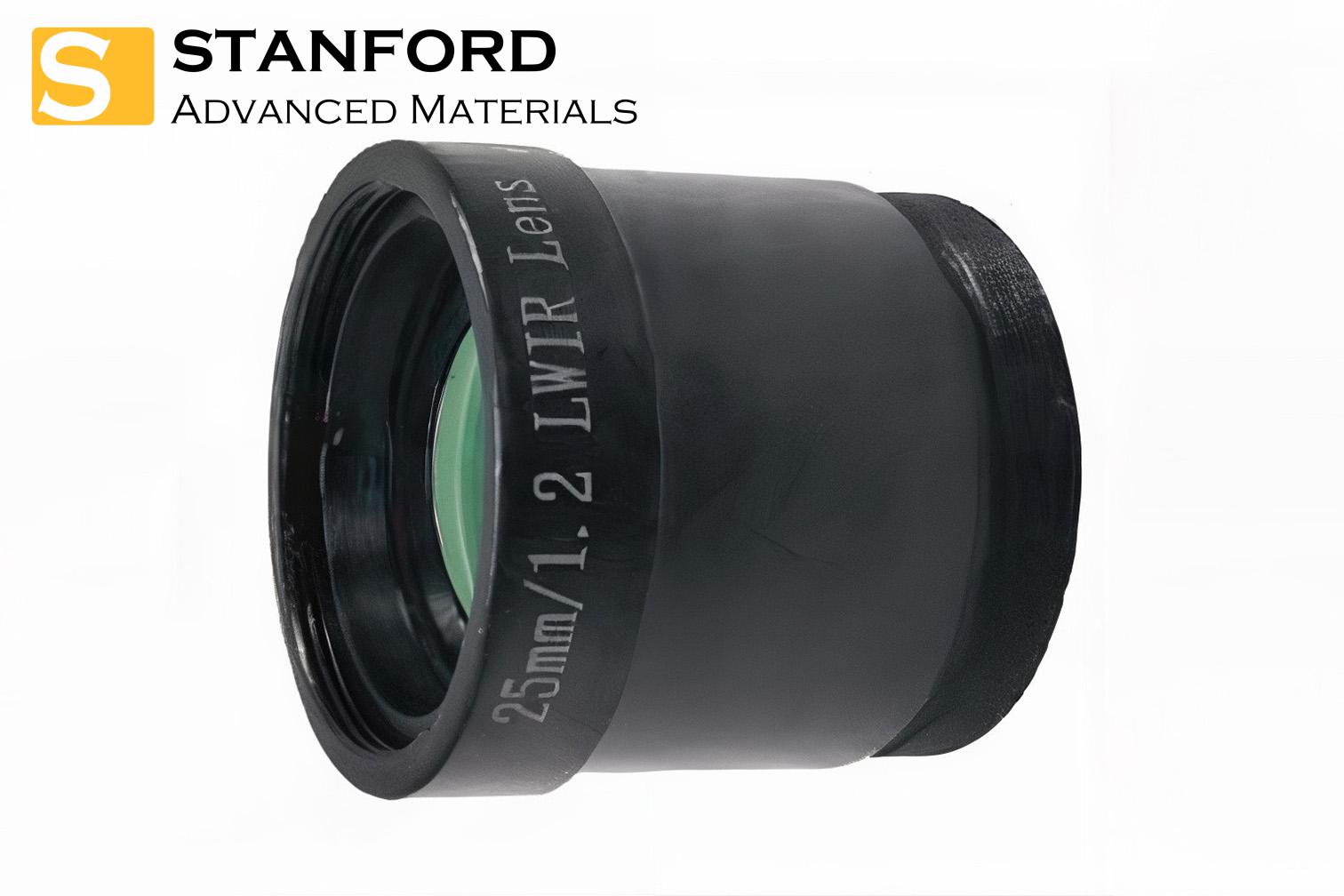

The Athermalized LWIR Lens 25mm F/1.2 is perfectly suited for high-performance infrared applications that demand accuracy and reliability. Stanford Optics is dedicated to the research, development, and manufacturing of mid-wave infrared (MWIR) and long-wave infrared (LWIR) optical systems.
The Athermalized LWIR Lens is meticulously crafted to provide exceptional performance in long-wave infrared applications, maintaining optical stability over a wide temperature range. By utilizing advanced athermalization techniques and high-quality materials, this lens ensures consistent focus and minimizes thermal-induced distortions, delivering clear and precise imaging in varying environmental conditions. With its high transmission efficiency within the LWIR spectrum, it is ideal for applications such as thermal imaging, night vision, surveillance systems, and scientific instruments. The lens features a robust and compact design that facilitates seamless integration into diverse optical configurations, while its durable construction guarantees long-term reliability and performance. Offering outstanding thermal stability and superior optical clarity, the Athermalized LWIR Lens is the perfect solution for demanding infrared applications that require accuracy and reliability.
Thermal Imaging Cameras
Military and Defense
Environmental Monitoring and Fire Detection
Our Athermalized LWIR Lens 25mm F/1.2 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
|
HFOV |
160x120 |
384x288 |
640x512 |
1024x768 |
|
25μm |
9.15 |
21.74 |
- |
- |
|
17μm |
6.23 |
14.88 |
24.55 |
- |
|
12μm |
4.4 |
10.53 |
17.46 |
- |
Optical Properties
|
Focal Length (mm) |
25mm |
|
F/# |
1.2 |
|
Average Transmission |
>86% |
|
Back Focal Length |
13.37mm |
Environmental Durability
|
Operating Temperature |
-40℃ to +80℃ |
|
Storage Temperature |
-50℃ to +80℃ |
|
Protection Rating |
IR67 |
|
First Surface Coating |
AR |
Mechanical Properties
|
Focusing Range |
0.5m~∞ |
|
Back Working Distance |
11mm |
|
Detector Interface Size |
M29 x 0.5 |
|

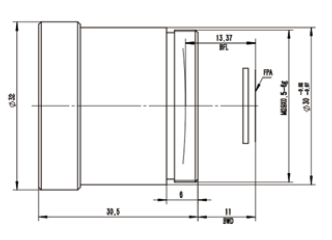

Overall Dimensions (mm) |
Φ32 x 30.5 |
|
Weight |
50g |
*For drawing, please contact us.
