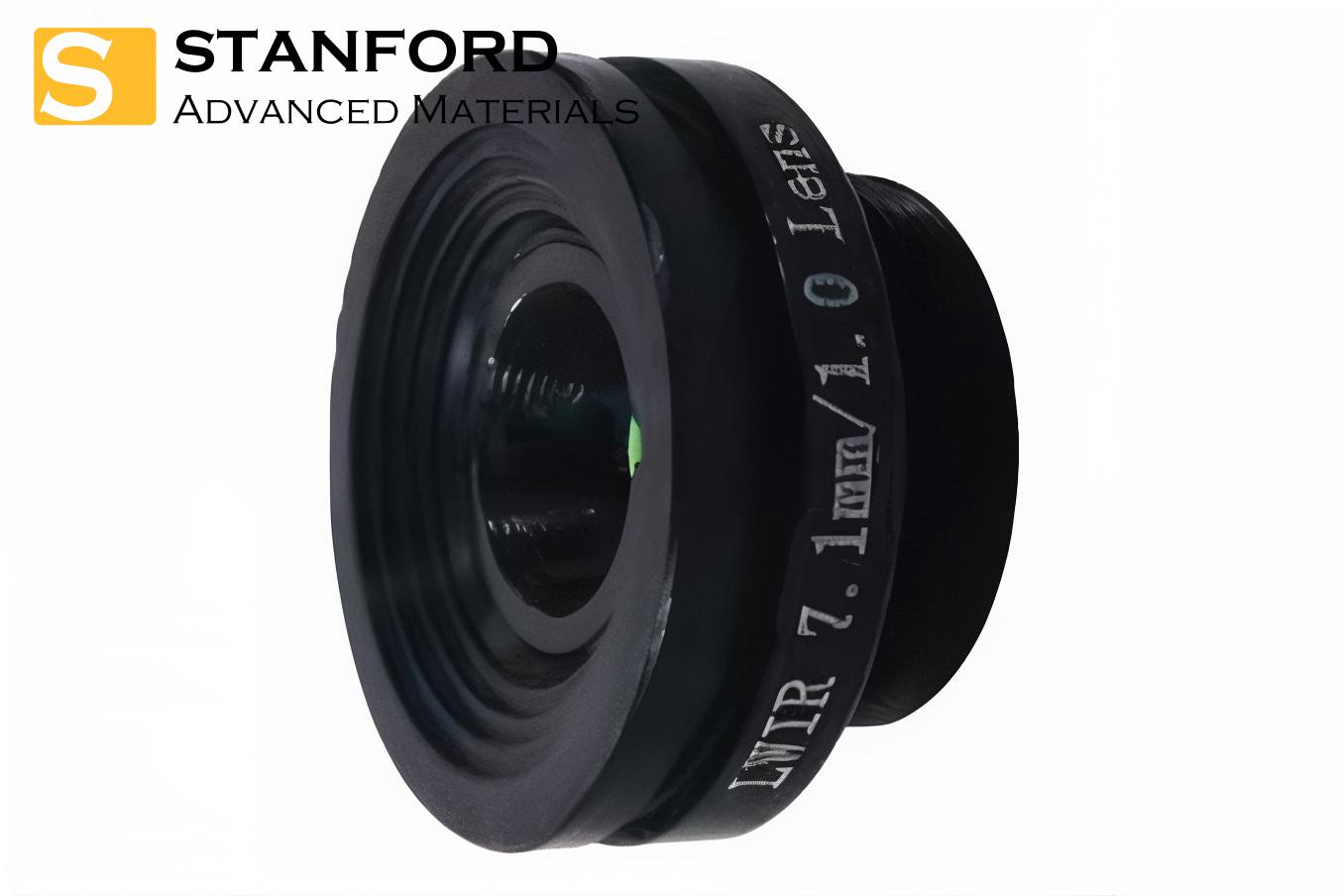

Athermalized LWIR Lens 7.1mm F/1.0 Description
The Athermalized LWIR Lens 7.1mm F/1.0 is a high-performance optical lens designed specifically for long-wave infrared (LWIR) imaging systems, offering exceptional clarity and reliability across a wide temperature range. Its athermalized design ensures consistent focus and image quality, even in fluctuating temperatures, making it ideal for outdoor and industrial applications.
With a 7.1mm focal length and a fast F/1.0 aperture, this lens provides a wide field of view and superior light sensitivity, enabling precise thermal imaging even in low-light or challenging conditions. It is widely used in various applications, including:
- Thermal cameras
- Surveillance systems
- Industrial inspections
- Firefighting equipment
- Military applications
In these fields, accurate and dependable infrared imaging is essential. The lens’s rugged construction and advanced design make it a reliable choice for high-quality thermal imaging in demanding environments, ensuring professionals can obtain precise results no matter the conditions.
Athermalized LWIR Lens 7.1mm F/1.0 Application
The Athermalized LWIR Lens 7.1mm F/1.0 has a broad range of applications, making it suitable for various industries that rely on thermal imaging for safety, monitoring, and diagnostics. Here are some key areas where it is commonly used:
-
Thermal Imaging Cameras:
Utilized in infrared thermal cameras for capturing high-quality thermal images, crucial for industrial, security, and scientific purposes. These systems provide detailed insights into temperature variations and heat signatures.
-
Surveillance Systems:
Perfect for security and surveillance, these cameras utilize the lens for precise thermal imaging even in low-light or no-light conditions, ensuring clear visibility in all environments.
-
Firefighting Equipment:
A valuable tool for firefighters, the lens helps thermal imaging devices identify heat sources, pinpoint hotspots, and navigate safely through smoke-filled areas, enhancing situational awareness during rescues.
-
Industrial Inspection:
Used to inspect machines, electrical systems, and buildings, the lens can detect temperature variations that highlight potential faults, inefficiencies, or hazards, improving maintenance and safety protocols.
-
Automotive Night Vision:
Installed in vehicles for night vision applications, helping drivers detect obstacles, pedestrians, and animals in total darkness, contributing to safer nighttime driving and enhanced visibility.
This lens is designed for precision, reliability, and clarity, providing consistent performance across a wide range of challenging environments and applications.
Athermalized LWIR Lens 7.1mm F/1.0 Packing
Our Athermalized LWIR Lens 7.1mm F/1.0 is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
|
HFOV
|
160x120
|
256x192
|
320x256
|
384x288
|
|
17μm
|
21.7
|
-
|
-
|
-
|
|
12μm
|
15.4
|
24.41
|
-
|
-
|
Optical Properties
|
Focal Length (mm)
|
7.1mm
|
|
F/#
|
1.0
|
|
Average Transmission
|
>92%
|
|
Back Focal Length
|
5.4mm
|
Environmental Durability
|
Operating Temperature
|
-40℃ to +60℃
|
|
Storage Temperature
|
-50℃ to +70℃
|
|
Protection Rating
|
IR67
|
|
First Surface Coating
|
AR
|
Mechanical Properties
|
Focusing Range
|
0.3m~∞
|
|
Back Working Distance
|
4.8mm
|
|
Detector Interface Size
|
M17 x 0.5-4g
|
|
Overall Dimensions (mm)
|
Φ23.3 x 13.2
|
|
Weight
|
12g
|
*For drawing, please contact us.
