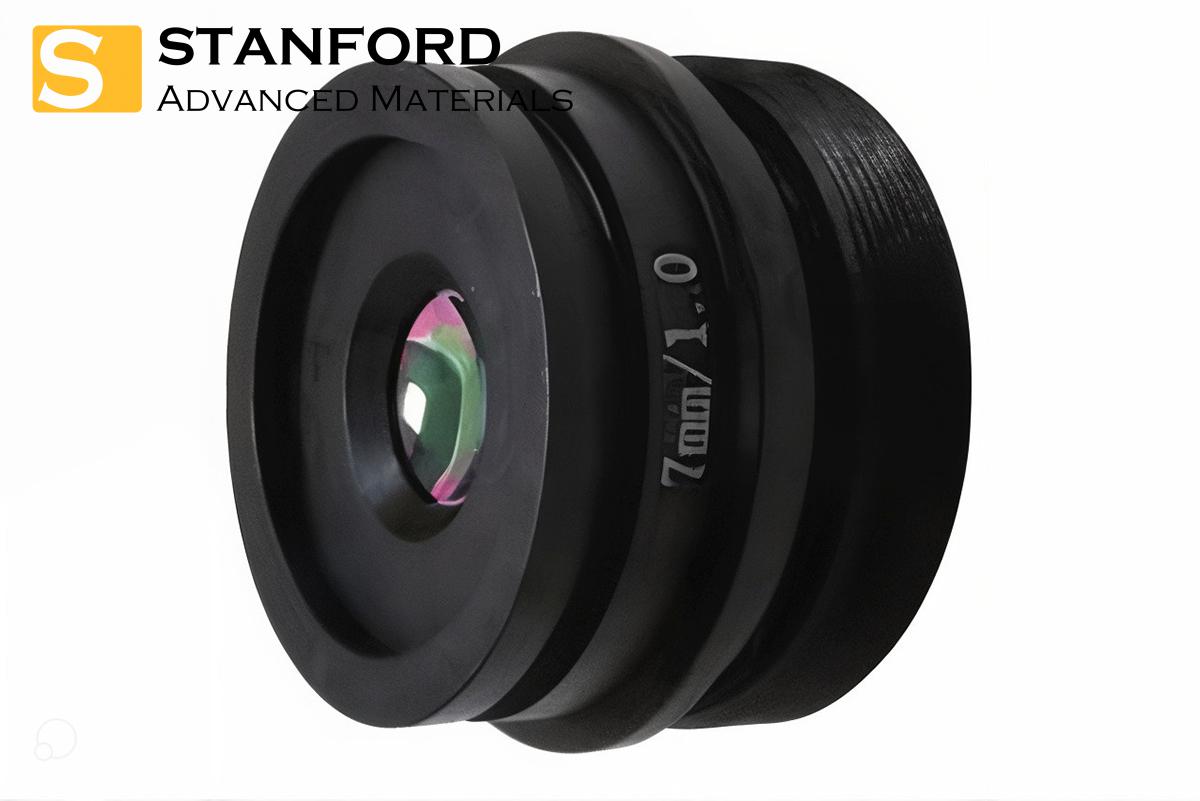

IR6434 Athermalized LWIR Lens 7mm F/1.0

Catalog No
IR6434
Focal Length
7mm
F/#
1.0
Operating Temperature
-40℃ to +60℃

The Athermalized LWIR Lens 7mm F/1.0 is a high-performance optical lens engineered for long-wave infrared (LWIR) imaging systems. It delivers exceptional thermal stability and maintains consistent imaging quality across a broad range of environmental temperatures. This lens is designed to offer reliable performance even with fluctuating temperatures, ensuring sharp focus and clarity under varying conditions.

Manufactured by Stanford Optics, a company dedicated to the research, development, and production of mid-wave infrared (MWIR) and long-wave infrared (LWIR) optical systems, this lens is built to meet the high standards required for precise thermal imaging. With its advanced technology and focus on optical excellence, Stanford Optics ensures that their products provide superior performance for a range of professional applications.

INQUIRE NOW
sc/1739010960-normal-14-athermalized-lwir-lens-7mm-f10.jpg
sc/1739010960-normal-14-athermalized-lwir-lens-7mm-f10.jpg
Description
Specifications
Reviews

Athermalized LWIR Lens 7mm F/1.0 Description

The Athermalized LWIR Lens 7mm F/1.0 is a high-performance optical component designed for long-wave infrared (LWIR) imaging systems. It is built to provide exceptional thermal stability and consistent image quality across a broad range of temperatures. Thanks to its athermalized construction, the lens maintains focus and clarity, even with fluctuating environmental temperatures. With a 7mm focal length, it offers a balanced field of view, delivering both wide coverage and precise detail. The F/1.0 aperture enhances sensitivity to low-light infrared radiation, allowing for crisp and clear thermal imaging even in challenging visibility conditions. Commonly used in thermal imaging, security systems, firefighting tools, industrial inspections, and military operations, this lens ensures reliable and high-quality infrared imaging. Its robust design and advanced features make it ideal for demanding applications across multiple industries.

Athermalized LWIR Lens 7mm F/1.0 Application

Athermalized LWIR Lens 7mm F/1.0 Packing

Our Athermalized LWIR Lens 7mm F/1.0 is carefully packaged and stored to maintain the quality and integrity of the product throughout handling and transportation.

Specifications

HFOV

160x120

320x256

384x288

640x512

17μm

21.99

42.5

50

-

12μm

15.62

30.68

36.44

-

Optical Properties

Focal Length

7mm

F/#

1.0

Average Transmission

>92%

Back Focal Length

8.38mm

Environmental Durability

Operating Temperature

-40℃ to +60℃

Storage Temperature

-50℃ to +70℃

Protection Rating

IR67

First Surface Coating

AR

Mechanical Properties

Focusing Range

0.3m~∞

Back Working Distance

7.1mm

Detector Interface Size

M25 x 0.5-6g

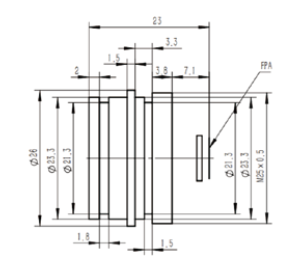

Overall Dimensions (mm)

Φ26 x 15.9

Weight

19g

*For drawing, please contact us.

Customer Reviews Write a review
0
(0 Reviews)
5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0
No reviews for current products.
FAQ
Can this lens be used with all thermal imaging systems?

This lens is compatible with most thermal imaging systems that operate within the LWIR (Long-Wave Infrared) spectrum, typically in the 8-14 micron range. However, it’s important to verify the specifications of your particular camera or sensor to ensure full compatibility.



What is an athermalized LWIR lens?

An athermalized LWIR lens is specially designed to maintain focus and image clarity across a wide range of temperatures. This feature helps minimize the effects of temperature changes, ensuring reliable and consistent performance in various environmental conditions.

What are the primary uses of this lens?

The Athermalized LWIR Lens 7mm F/1.0 is widely utilized in applications such as thermal imaging cameras, security surveillance, industrial inspections, firefighting operations, military reconnaissance, search and rescue missions, and automotive night vision systems.
