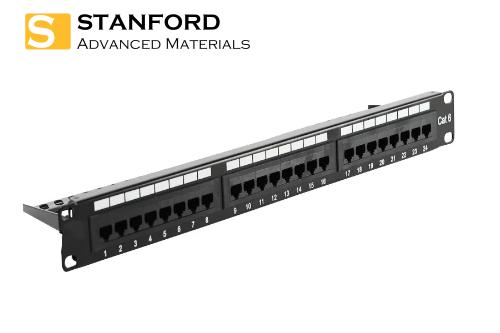

OE9185 CAT6 Unshielded Twisted Pair UTP Patch Panel

CAT6 Unshielded Twisted Pair UTP Patch Panel‌ Description

This CAT6 Unshielded Twisted Pair (UTP) Patch Panel is engineered with robust, high-quality metals and durable plastic components designed to maintain peak performance over extended operational lifespans. The front panel features marked ports, simplifying cable organization while minimizing the risk of signal loss. Additionally, the precision-engineered RJ45 jacks are built to reduce electromagnetic interference and crosstalk, preserving optimal network bandwidth in data-heavy environments.

Meeting rigorous quality standards, including TIA/EIA-568-D compliance, this patch panel supports reliable data transmissions across a variety of applications: from small office networks to large-scale data centers. Its universal 19-inch rack-mountable design ensures straightforward installation, and the included rear cable management bracket promotes a neat, tangle-free setup. Count on this CAT6 UTP Patch Panel for consistent, high-speed connectivity in any demanding network infrastructure.

CAT6 Unshielded Twisted Pair UTP Patch Panel‌ Applications

CAT6 Unshielded Twisted Pair (UTP) patch panels provide high-speed data connectivity while minimizing noise and crosstalk. They accommodate a variety of network demands with reliable performance, extended bandwidth, and simplified cable management. Whether used in large-scale industrial environments or fast-paced commercial settings, these panels enable stable and secure connections, ensuring efficient data transfer for critical applications and seamless user experiences.

1. Industrial Applications

• Heavy Manufacturing: CAT6 UTP patch panels excel in harsh environments, delivering robust data throughput for complex automation and real-time monitoring systems.
• Oil and Gas Facilities: Their minimized crosstalk and reliable connections support sensitive instruments, ensuring uninterrupted data flow in critical operations.

2. Research Applications

• High-Performance Labs: The extended bandwidth of CAT6 UTP patch panels enables rapid data collection for highly demanding experimental setups.
• University Data Centers: They simplify cable management and offer consistent network performance, making large-scale computing tasks more efficient.

3. Commercial Applications

• Office Environments: The reliable connectivity of CAT6 UTP patch panels supports VoIP, video conferencing, and secure file sharing, enhancing employee productivity.
• Retail Outlets: By reducing electromagnetic interference, these panels maintain stable point-of-sale systems and smooth inventory tracking across multiple terminals.

CAT6 Unshielded Twisted Pair UTP Patch Panel‌ Packaging

The CAT6 Unshielded Twisted Pair UTP Patch Panel is securely packaged in a shock-resistant cardboard box lined with protective foam inserts. Each panel is sealed in a moisture-barrier bag to prevent contamination, with additional silica gel packs to maintain dryness. For best results, store in a cool, dry environment away from direct sunlight. Custom branding options and specialized packaging configurations are available to meet specific requirements.

Packaging: Vacuum sealed, Wooden Box, or Customized.

CAT6 Unshielded Twisted Pair UTP Patch Panel‌ FAQs

Q1: What are the key material properties of the CAT6 Unshielded Twisted Pair UTP Patch Panel‌?

A1: CAT6 Unshielded Twisted Pair (UTP) Patch Panels typically feature high-grade, corrosion-resistant phosphor bronze or similar conductive materials for the contact blades, ensuring reliable signal transmission. The panel housing often includes robust ABS or polycarbonate thermoplastic that resists impact and warping. The twisted pair conductors are usually 23 AWG copper, which offers low attenuation and high bandwidth capacity. This construction meets stringent performance requirements, reducing crosstalk and enabling consistent data speeds across long cable runs.

Q2: How should this product be handled and stored?

A2: To preserve optimal performance, handle the patch panel gently and avoid bending or pinching the copper conductors during installation. Keep it in a cool, dry environment, away from excessive vibration or direct sunlight. Use compatible cable management accessories to reduce stress on the terminations. When storing, ensure the patch panel remains in its protective packaging, stacked securely, and free from dust or other contaminants that could affect the panel’s electrical integrity.

Q3: Which quality standards and certifications apply to CAT6 Unshielded Twisted Pair UTP Patch Panel‌?

A3: These patch panels must comply with ANSI/TIA-568.2-D specifications for balanced twisted-pair cabling, which outline performance parameters such as return loss and crosstalk. They are typically UL-listed to demonstrate compliance with safety and flammability requirements. Many manufacturers also adhere to ISO/IEC 11801 standards, ensuring global interoperability and performance benchmarks. RoHS compliance is common, indicating reduced hazardous substances. Additionally, reputable brands may hold ETL verification for independent third-party testing and certification.

Related Information

1. Industry Standards and Certifications

Adhering to recognized guidelines such as TIA/EIA-568-C.2 and ISO/IEC 11801, the CAT6 Unshielded Twisted Pair UTP Patch Panel ensures reliable performance for high-speed data transfers. These industry standards define specific requirements for transmission frequency, cable insulation, and overall linker integrity, guaranteeing that the patch panel provides consistent bandwidth capacity for enterprise networks. By meeting these standards, the product not only achieves outstanding signal clarity but also supports compatibility with various wiring systems, making it a trustworthy solution for demanding network environments.

Beneath these formal certifications lies an array of rigorous quality assessments that validate physical durability and electrical stability. Independent labs often test the UTP Patch Panel for crosstalk, attenuation, and proper return loss values in both controlled and real-world conditions. This emphasis on conforming to established benchmarks ensures that the CAT6 panel remains a dependable choice for system integrators seeking equipment that upholds industry norms, all while delivering efficient and stable data connections.

2. Applications in Advanced Industries

Catering to the evolving needs of technology-driven sectors, the CAT6 Unshielded Twisted Pair UTP Patch Panel finds extensive applications in high-performance data centers, cutting-edge research facilities, and sophisticated manufacturing environments. Its ability to handle Gigabit Ethernet and support PoE (Power over Ethernet) applications makes it an integral component in advanced surveillance systems, automated production lines, and modern healthcare infrastructure. Organizations value this patch panel for its robust data handling capabilities, minimal signal interference, and the ease with which it can be integrated into complex network topologies.

Designed to accommodate future upgrades and emerging technologies, the patch panel’s versatile framework allows for seamless expansion. This adaptability is critical for sectors like aerospace, where streamlined data transfer and real-time monitoring are essential for large-scale operations and mission-critical projects. The CAT6 UTP Patch Panel provides a stable and interference-free connection platform, offering engineers and IT specialists a reliable backbone to support advanced industrial processes while optimizing performance and maintaining data integrity.
