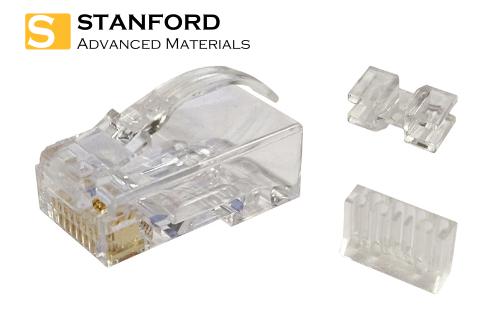

OE9192 Patented CAT6 Unshielded Crystal Head

Patented CAT6 Unshielded Crystal Head Description

Engineered for unwavering performance, this Patented CAT6 Unshielded Crystal Head is expertly crafted from high-grade polycarbonate and gold-plated copper contacts. The polycarbonate shell provides exceptional durability, resisting cracking and wear even under demanding conditions. By integrating gold-plated contacts, it minimizes signal loss and ensures consistently clear data transmission, making it ideal for environments that demand stability and speed.

Designed to meet rigorous international quality standards, this connector excels in both commercial and residential applications. It supports gigabit data transfer and is backward compatible with earlier cable categories, making it exceptionally versatile. Whether you’re setting up an enterprise-level network or fine-tuning your home office, the Patented CAT6 Unshielded Crystal Head guarantees optimal performance, long-lasting reliability, and effortless installation.

Patented CAT6 Unshielded Crystal Head Applications

Offering superior signal transmission and robust connectivity, the Patented CAT6 Unshielded Crystal Head stands out from ordinary connectors. It delivers high-speed data performance while eliminating noise interference, making it indispensable for demanding setups. Engineered to assure reliability, this industry-leading component seamlessly handles large bandwidth requirements, making it ideal for applications that demand top-notch networking capabilities.

1. Industrial Applications

• Application 1: Heavy machinery control systems in manufacturing plants where stable, high-speed data transfer is critical
• Application 2: Automated assembly lines that rely on minimized signal loss for real-time process monitoring

2. Research Applications

• Application 1: Data-intensive experiments in laboratory networks that require consistent performance over extended testing periods
• Application 2: High-fidelity sensor connections in technical research, ensuring reliable data collection across complex instrumentation

3. Commercial Applications

• Application 1: Large office complexes with extensive data sharing needs that benefit from secure, interference-free connections
• Application 2: IT infrastructure upgrades in data centers, delivering faster network speeds and improved reliability

Patented CAT6 Unshielded Crystal Head Packaging

Protect each patented CAT6 Unshielded Crystal Head with high-density foam inserts and a sealed plastic pouch to guard against dust and moisture. Maintain a cool, dry environment between 15–25°C and moderate humidity for optimal performance. Include tamper-evident seals to prevent contamination. Customize packaging with branded labels, barcodes, or color-coded boxes for easy identification and efficient inventory management.

Packaging: Vacuum sealed, Wooden Box, or Customized.

Patented CAT6 Unshielded Crystal Head FAQs

Q1: What are the key material properties of the Patented CAT6 Unshielded Crystal Head?

A1: The Patented CAT6 Unshielded Crystal Head is typically constructed from robust, high-grade polycarbonate for the connector housing and 50-micron gold-plated contacts to ensure optimal signal transmission. The polycarbonate base offers superior durability, impact resistance, and heat resistance. Meanwhile, the gold plating enhances corrosion protection and conductivity. These materials work together to minimize crosstalk and ensure stable, high-speed data performance over extended periods of operation.

Q2: How should this product be handled and stored?

A2: To preserve the Patented CAT6 Unshielded Crystal Head’s performance, store it in a clean, dry location at moderate temperatures, away from direct sunlight or excessive humidity. Avoid bending or crushing the connector pins, and protect the contacts from dust or oily contaminants. When inserting or removing cables, apply even force to prevent damage. Use protective covers or packaging during transport and ensure minimal vibration or impact.

Q3: Which quality standards and certifications apply to Patented CAT6 Unshielded Crystal Head?

A3: The Patented CAT6 Unshielded Crystal Head typically meets or exceeds requirements set by TIA/EIA-568 and ISO/IEC 11801 for structured cabling performance. It often holds UL certification to confirm safety and flammability compliance, and may also be compliant with RoHS to limit hazardous substances. Additionally, manufacturers conduct stringent in-house testing to ensure consistent conductivity, secure terminations, and reliable insulation for optimal signal integrity.

Related Information

1. Material Properties and Advantages

Its patented CAT6 unshielded crystal head utilizes a robust plastic composition designed to maintain signal integrity while minimizing external interference. The 8P8C contacts are precision-engineered with enhanced gold-plated terminals, which optimize conductivity and reduce the risk of corrosion. This unique combination of materials achieves a reliable performance under heavy data loads, making it particularly suitable for high-volume network environments. By eliminating shielding layers, it offers a more compact form factor without compromising on durability or efficiency.

The unshielded design also contributes to a streamlined installation process, as it reduces the weight and complexity typically associated with shielded connectors. This approach provides a cost-effective solution for businesses that require large-scale deployments of high-speed cabling. In addition, the product’s patented structure helps reduce crosstalk and prevents signal loss, improving network stability and overall bandwidth performance in both commercial and residential settings.

2. Manufacturing Process

Careful injection molding techniques are utilized to create the core housing of the patented CAT6 unshielded crystal head. The molding process ensures a precise fit for internal conductor positioning, minimizing noise and signal degradation. Each connector is meticulously formed to meet rigorous dimensional tolerances, allowing easy and secure cable terminations. This manufacturing approach is integral to achieving consistent throughput and stable data transfers across a wide range of network applications.

Final assembly involves multiple staged inspections and automated testing to verify the crystal head’s electrical continuity and structural integrity. During this phase, each unit is measured for contact alignment, ensuring that all conductors securely mate with the cable’s internal wiring. By embracing a specialized combination of machine-guided assembly and skilled labor, manufacturers deliver dependable connectors that excel in high-performance networking tasks and maintain compliance with stringent industry benchmarks.
