Description
UV Fused Silica Fiber is an advanced optical fiber made from high-purity fused silica, offering exceptional transmission performance across the ultraviolet (UV), visible, and near-infrared (NIR) spectrum—particularly within the 200 nm to 400 nm UV range.
Key features of UV Fused Silica Fiber include:
- Wide Spectral Transmission
- High Corrosion Resistance
- Superior Mechanical Strength
- Thermal Stability
- Radiation Resistance
Our UV Fused Silica Fiber can be customized in single-mode, multimode, or other specialized configurations based on your applications and requirements.
Applications
- Spectroscopy – UV-Vis and fluorescence measurements
- Biomedical – Fluorescence excitation, endoscopy, precision light delivery
- Laser Delivery – Suitable for excimer and UV laser systems
- Environmental Monitoring – Gas detection, water, and air quality analysis
- Semiconductor Manufacturing – Photolithography and chip inspection
- Industrial Uses – UV curing and precision processing
Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or customized.

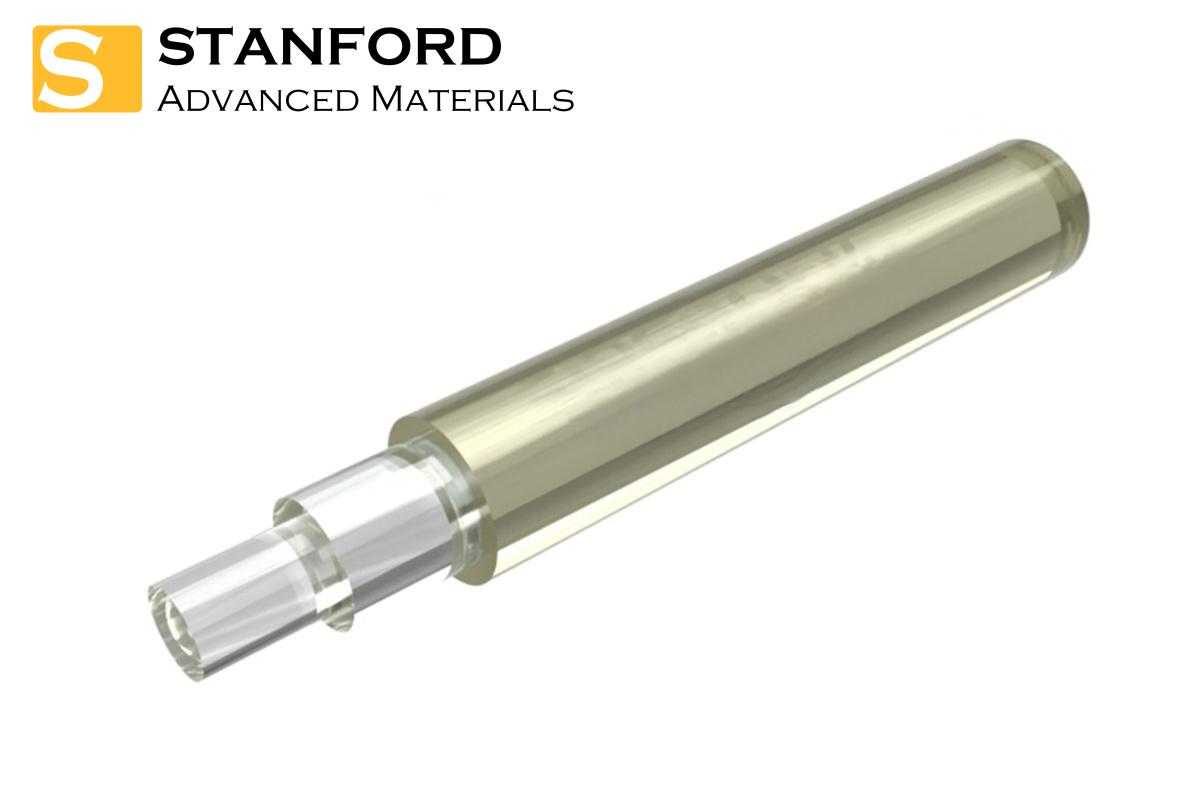

Structure of Optical Fiber
Customization Options
We offer tailored core sizes, numerical apertures, coatings, and connector types to meet your specific system requirements. Custom-designed fiber-optic devices based on square-core fibers are available upon request. Samples are for testing only.
|
Parameter
|
Value
|
|
Spectral Range
|
200-1100 nm
|
|
Numerical Aperture (NA)
|
0.22
|
|
Core-Cladding Concentricity (μm)
|
≤ 30
|
|
Core Non-Circularity (%)
|
≤ 2
|
|
Cladding Non-Circularity (%)
|
≤ 2
|
|
Operating Temperature (°C)
|
–40 to +85
|
|
Tensile Strength (kpsi)
|
100
|
|
Core Material
|
High-OH pure fused silica
|
|
Cladding Material
|
Fluorine-doped silica glass
|
|
Coating Material
|
Dual-layer UV-cured acrylate
|
|
RoHS Compliance
|
Yes
|
|
REACH Compliance
|
Yes
|
Specification
|
Specification
|
Core (μm)
|
Cladding (μm)
|
Coating (μm)
|
|
UV50125245
|
50
|
125
|
245
|
|
UV100110130
|
100
|
110
|
130
|
|
UV105125245
|
105
|
125
|
245
|
|
UV200220320
|
200
|
220
|
320
|
|
UV300330520
|
300
|
330
|
520
|
|
UV400440700
|
400
|
440
|
700
|
|
UV600660900
|
600
|
660
|
900
|
|
UV8008801100
|
800
|
880
|
1100
|
|
UV100010501600
|
1000
|
1050
|
1600
|
|
UV100011001600
|
1000
|
1100
|
1600
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
