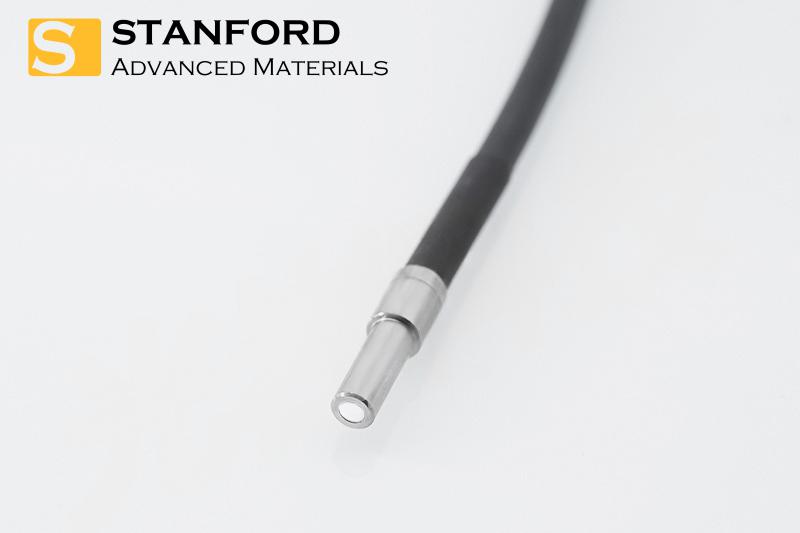

Multicomponent Glass Fiber Description
Multi-component glass fibers are valued for their high numerical aperture and good transmission performance. The mixed composition allows for precise control of refractive index profiles, enabling broader design flexibility. Compared with conventional silica-only fibers, these fibers can support more complex optical functions and show improved tolerance to external interference.
Such properties make them a practical choice in telecommunication links, precision sensing, laser delivery, and biomedical imaging, where stable light transmission is critical.
Multicomponent Glass Fiber Applications
- High-speed optical communication
- Sensors for temperature, pressure, or humidity
- Laser beam delivery in medical or industrial systems
- Imaging and spectroscopy instruments
- Environmental monitoring
Multicomponent Glass Fiber Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or customized.
Customization Options
Customized options are available, including different fiber geometries, numerical apertures, and coatings. Evaluation samples can be provided for testing before production orders.
|
Parameter
|
Specification
|
|
Fiber Type
|
Multicomponent Glass Fiber
|
|
Spectral Range
|
400–800 nm
|
|
Operating Temperature
|
< 200°C
|
|
Fiber Structure
|
Step-Index
|
|
RoHS Compliance
|
Compliant
|
|
REACH Compliance
|
Compliant
|
Specification
|
Specification
|
Numerical Aperture (NA)
|
Core Diameter (μm)
|
Divergence Angle
|
|
IR50125245
|
0.57
|
50
|
70°
|
|
IR105125245
|
0.63
|
50
|
79°
|
|
IR135155320
|
0.77
|
50
|
100°
|
|
IR200220320
|
0.86
|
50
|
120°
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
