Stanford Optics is a trusted global supplier of advanced materials, known for delivering high-performance solutions for medical, industrial, and research applications. Holmium Laser Fiber offered by SAM is designed for efficient and precise transmission of holmium laser energy, widely used in urology, orthopedics, and minimally invasive surgeries for effective stone fragmentation and tissue treatment.

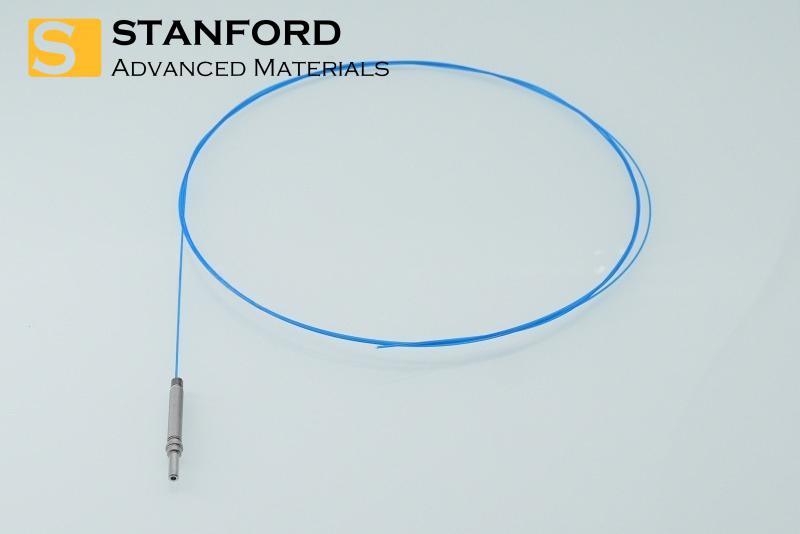

Holmium Laser Fiber is a specialized optical fiber designed for transmitting holmium laser energy, widely used in various surgical procedures including urology, orthopedics, gynecology, and dentistry. Available in sizes such as 200μm, 275μm, 365μm, 550μm, 800μm, and 1000μm, this fiber enables efficient delivery of laser power for cutting, vaporization, and hemostasis, particularly in the treatment of urinary calculi.
Holmium laser lithotripsy is an advanced stone treatment technique that utilizes thermal energy rather than shockwaves to fragment even the hardest urinary stones. The fiber’s strong water absorption capability ensures precise ablation with minimal tissue damage, and the residual thermal effect provides effective coagulation. Holmium Laser Fiber is compatible with endoscopic systems and offers a simple, direct-contact method for precise and effective stone dusting and removal.
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or Customized.
Most optical fibers are custom-made products. Please communicate with us based on your specific requirements to ensure you receive the exact type of fiber you need!
Specification |
Details |
Length |
3 meters, or customized |
Connector Type |
SMA905, or customized |
Numerical Aperture (NA) |
0.22 |
Core Material |
Low-OH Quartz |
Cladding Material |
Fluorine-Doped Quartz |
Coating Material |
Acrylate Resin |
Buffer Material |
Teflon |
Buffer Color Options |
Blue / Green / Black / White |
Operating Temperature (°C) |
-40°C to 150°C |
Transmission Wavelength |
400–2500 nm |
Single Fiber Transmission Efficiency |
≥90% |
Special Feature |
Biocompatibility Compliant |
Proof Test Strength |
100 kpsi |
Fiber Type |
Step-Index |
Specification
Core Dia. (μm) |
Cladding Dia. (μm) |
Coating Dia. (μm) |
Buffer Dia. (μm) |
100 |
110 |
130 |
250 |
150 |
165 |
200 |
350 |
200 |
220 |
245 |
380 |
272 |
299 |
330 |
420 |
365 |
400 |
430 |
550 |
550 |
600 |
630 |
750 |
600 |
660 |
690 |
890 |
800 |
880 |
960 |
1100 |
910 |
1000 |
1100 |
1400 |
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
