MTP-LC Duplex Breakout Cable Description

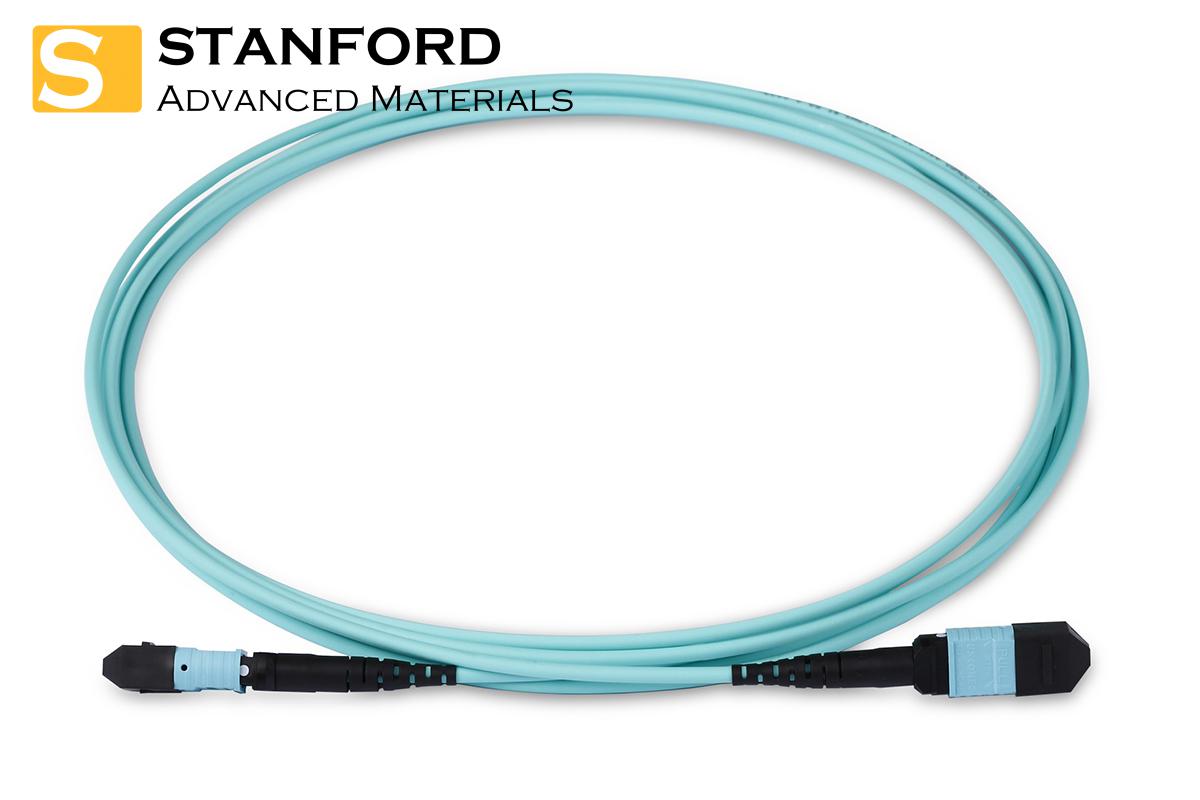

MTP-LC Duplex Breakout Cable, 12F, OM5, OFNR, Type B, 3m is a high-performance fiber optic assembly designed for next-generation short-reach multimode applications. Built with OM5 wideband multimode fiber, it supports multi-wavelength transmission between 850 nm and 950 nm, making it ideal for 40G, 100G, and 400G Ethernet over short distances. This cable features a female MTP® connector on one end and six duplex LC connectors on the other, allowing easy breakout from backbone trunks to active equipment. Its Type B polarity ensures correct Tx/Rx alignment, while the OFNR-rated jacket offers flame-retardant protection for vertical riser installations. Each cable is factory-terminated and 100% tested, ensuring low insertion loss and consistent performance in high-density network environments.
MTP-LC Duplex Breakout Cable Applications
Data Centers
- High-speed interconnects for 40G/100G/400G Ethernet using short-reach OM5 multimode fiber
- Breakout cabling from MTP trunk lines to LC-based switches, transceivers, and servers
- Ideal for vertical riser deployment with OFNR fire-rated protection
Enterprise Networks
- Future-ready multimode backbone links supporting higher speeds and more wavelengths
- Structured cabling across multiple floors in office towers and commercial buildings
Telecommunications
- Inter-equipment links in central offices and metro networks
- Cost-effective, short-range high-capacity connectivity
Cloud & Co-Location Facilities
- Dense optical connectivity for scalable, virtualized environments
- Optimized for 850–950 nm wavelength range supporting SWDM technologies
MTP-LC Duplex Breakout Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or Customized.
Product Features
- Complies with TIA/EIA-568-C.3 and ISO/IEC 11801 standards
- 100% factory-terminated and tested before shipment
- Flexible cable polarity options available
- Each cable is labeled for production tracking and quality traceability
Read more: OM1 vs OM2 vs OM3 vs OM4 vs OM5: Multimode Fiber Cable Differences
|
Fiber Count
|
12 Fibers
|
|
Sheath Material
|
OFNR
|
|
Polarity Configuration
|
Type B
|
|
Standards
|
IEC 61754-7
IEC 61754-20
IEC 61300-3-4
TIA/EIA-568-C.3
ISO/IEC 11801
|
|
Fiber Performance
|
|
Fiber Type
|
OM5
|
|
Core/Cladding Diameter (μm)
|
50/125
|
|
Effective Modal Bandwidth (MHz·km)
|
4700@850nm, 2470@953nm
|
|
Operating Wavelength (nm)
|
850/953/1300
|
|
Maximum Attenuation (dB/km)
|
2.3/1.7/0.6
|
|
Connector Performance
|
|
Loss Grade
|
MTP Multimode High Precision
|
|
IL (Insertion Loss, dB)
|
≤ 0.25
|
|
High-Low Temperature Cycle ΔIL (dB)
|
≤ 0.20
|
|
RL (Return Loss, dB)
|
≥ 28
|
|
High-Low Temperature Cycle ΔRL (dB)
|
≤ 5
|
|
Mechanical Properties
|
|
Number of Optical Fibers
|
12 fibers
|
|
Min. Static Bending Radius
|
10D mm
|
|
Min. Dynamic Bending Radius
|
20D mm
|
|
Operating Temperature
|
-20~+60 °C
|
|
Installation Temperature
|
-5~+50 °C
|
|
Storage and Transport Temperature
|
-25~+75 °C
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
