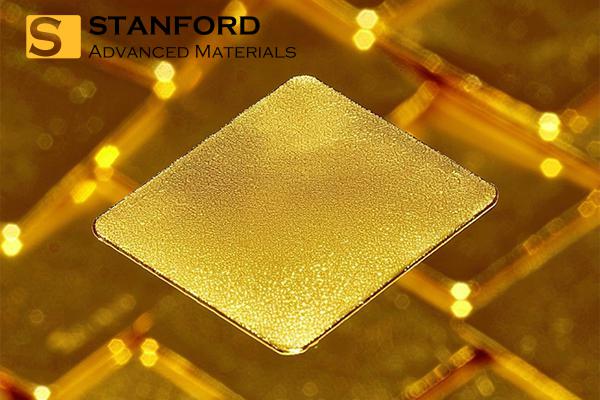

Au (Gold) Single Crystal Substrate Description
Gold is a soft metal with a characteristic shiny yellow color. It has the highest malleability and ductility of any element and can be beaten into a film only microns thick. Gold is unaffected by air, water, acids (except aqua regia, HNO3-HCl), and alkalis. It is used as bullion, in jewelry, electronics, and glass, to color it, and as a heat reflector.
Au (Gold) Single Crystal Substrate Specifications
|
Purity (%)
|
≥99.99
|
|
Size
|
10x10x0.5 mm
|
|
Surface finish
|
One side optical polished
|
|
Orientation
|
<111> ±2°
|
|
Symbol
|
Au
|
|
Molecular Weight
|
196.967
|
|
Crystal structure
|
CCP
|
|
Lattice constant at room temperature
|
0.408 nm
|
|
Density
|
19.30 g/cm3
|
|
Melting Point
|
1064.18 °C
|
|
Boiling Point
|
2856 °C
|
Au (Gold) Single Crystal Substrate Applications
Au Single Crystal Substrate is used in electronics.
Gold single-crystal substrates have a wide range of applications in various fields:
Electronics: They are used as substrates for high-performance electronic devices, including semiconductor devices, sensors, and transistors.
Nanotechnology: Gold single crystals serve as a platform for nanoscale research, enabling the study of atomic-scale phenomena and the development of nanoscale devices.
Surface Science: Researchers use gold substrates to investigate surface phenomena, such as catalysis, adsorption, and molecular self-assembly.
Optics and Photonics: Gold substrates are employed in optical coatings, plasmonic devices, and sensors that rely on gold's unique optical properties.
Biotechnology and Medical Devices: Gold's biocompatibility makes it suitable for use in medical devices, biosensors, and implantable devices.
Au (Gold) Single Crystal Substrate Features:
Monocrystalline Purity: Our Gold single-crystal substrates consist of a single, continuous crystal lattice, offering an unrivaled level of purity and crystalline perfection.
Exceptional Surface Quality: The surfaces of these substrates are polished to atomic-level precision, ensuring the highest quality foundation for your experiments and applications.
High Electrical Conductivity: Gold's natural conductivity makes these substrates ideal for electronic and sensor applications.
Biocompatibility: Gold's biocompatibility makes it suitable for use in medical devices, biosensors, and implantable devices.
Reflectivity and Optical Properties: Gold's unique optical properties, including high reflectivity in the visible and infrared spectrum, are advantageous for optical coatings and sensors.
Au (Gold) Single Crystal Substrate Packaging
Our Au (Gold) Single Crystal Substrate is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
