Description

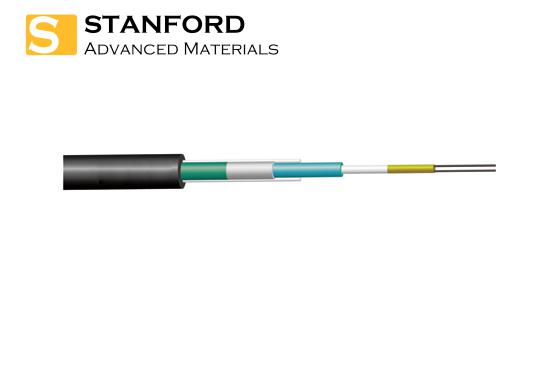

Central Tube Type Lightweight Armored Optical Cable is a durable and lightweight solution designed for outdoor applications requiring moisture resistance, mechanical strength, and ease of installation. The cable features colored optical fibers housed in a loose tube made of high-modulus, hydrolysis-resistant material. This loose tube is filled with thixotropic water-blocking gel to protect the fibers and enhance water resistance.
A layer of double-sided coated steel tape is longitudinally wrapped around the loose tube, with additional water-blocking gel applied between the steel tape and the tube, ensuring compactness and robust longitudinal water resistance. Two parallel steel wires provide enhanced tensile strength and stability, while a polyethylene sheath is extruded to protect the cable from environmental factors.
Feature

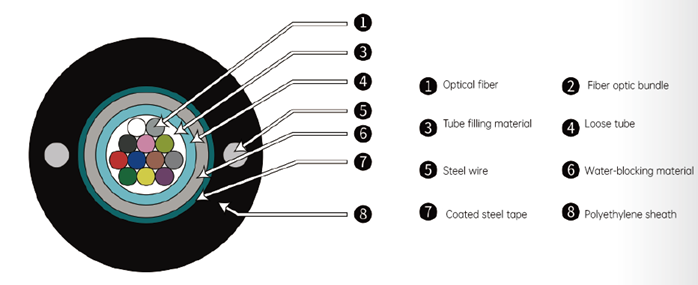

Cross-section Diagram
- Reliable Mechanical and Temperature Performance
Engineered to perform effectively under varying mechanical stresses and temperature conditions.
- Durable Hydrolysis-Resistant Loose Tube
Loose tube material resists hydrolysis and provides excellent pressure resistance.
- Enhanced Fiber Protection
Filled with special grease inside the loose tube, safeguarding fibers from environmental factors and mechanical stress.
- Improved Moisture Resistance
Double-sided coated steel tape prevents moisture penetration.
- Reinforced Tensile Strength
Two parallel steel wires provide exceptional tensile performance, ensuring cable stability during installation and operation.
- Compact and Lightweight Design
Small diameter and lightweight construction allow for easy handling and installation, even in tight spaces or over long distances.
Application Scenario
GYXS/GYXTW optical cable is a versatile optical cable suitable for duct and aerial installations, high-moisture environments, and backbone networks. Its lightweight and durable design make it an excellent choice for both urban and rural outdoor applications, ensuring reliable performance in a variety of conditions.
- Duct Installations
Ideal for deployment in ducts, with its lightweight design allowing for easy handling and long-distance pulling during installation.
- Aerial Installations
Suitable for aerial deployments with appropriate support measures, providing stability in areas exposed to wind and other weather conditions.
- High-Moisture or Water-Prone Environments
The water-blocking gel and steel tape offer excellent protection against moisture ingress, making it suitable for regions with heavy rainfall or high humidity.
- Backbone Communication Networks
Commonly used in backbone networks for long-distance transmission due to its high mechanical strength and reliable performance.
- Suburban and Rural Networks
Perfect for suburban and rural communication infrastructure, where lightweight cables are essential for ease of installation and reduced logistical challenges.
- Industrial Zones
Performs well in industrial environments, providing resistance to physical stress and environmental hazards.
- Low to Moderate Mechanical Stress Areas
Designed for regions where mechanical stress is relatively low, such as stable terrains or areas without heavy machinery.
- Outdoor Applications Requiring Compact Solutions
The small diameter and lightweight design make it ideal for confined or hard-to-access installation spaces.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Cable Weight
Kg/km
|
Tensile Strength
Long/short term
N
|
Crush Force
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYXS/GYXTW-2~12Xn
|
2~12
|
82
|
600/1500
|
300/1000
|
10D/20D
|
|
GYXS/GYXTW-14~24Xn
|
14~24
|
127
|
|
GYXS/GYXTW-2~12Xn
|
2~12
|
124
|
|
GYXS/GYXTW-14~24Xn
|
14~24
|
147
|
*Sizes and performance values can be specified by customers.
