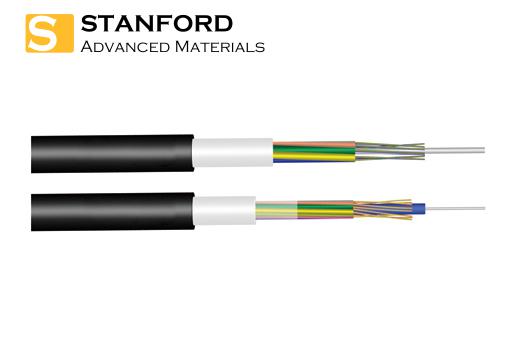

Description
GYFTA optical cable is constructed to ensure high-performance communications under diverse, stringent conditions. It contains high-modulus loose tubes with colored optical fibers exhibiting good mechanical strength, hydrolysis resistance, and long-term dependability. Thixotropic gel is utilized to fill the tube with good water-blocking property to shield the fibers.
In essence, a glass fiber reinforced plastic (FRP) strength member offers greater sturdiness and structural integrity. The filler ropes, together with loose tubes, are helically stranded about the central FRP core in a compact, circular form. The core's interstices are also filled with some thixotropic gel in order to create a double-layer water-blocking system. An additional degree of shielding is provided by longitudinally placing an aluminum tape about the cable core. A hard polyethylene sheath protects the whole assembly and increases its environmental resistance.
Feature

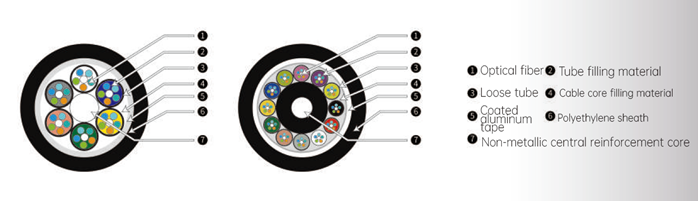

Cross-section Diagram
- Durable Loose Tube Material: With high-modulus material and high resistance to hydrolysis, it will provide long-term performance regardless of hostile environments.
- Excellent Mechanical and Temperature Performance: Withstands mechanical stresses and harsh temperature extremes without loss of consistent operation.
- Aramid Yarn Reinforcement: Laminated aramid yarns have higher resistance to tensile loads, such that large installation pulling forces are resisted by the cable.
- Thixotropic Gel Protection: Offers water blocking and fiber protection within the loose tube to prevent moisture intrusion and enhance fiber survivability.
- UV-Resistant PE Sheath: Polyethylene sheathing offers excellent UV resistance to prevent cábler degradation due to exposure to sunlight.
- Non-metallic Central Strength Member: The FRP core does not interfere electromagnetically (EMI), thus it is suitable for EMI-sensitive areas.
Application Scenario
High-Humidity Environments: Ideal for coastlines, rainforests, and high-rainfall areas, it provides best-of-class waterproofing and dependability through its water-blocking gel and hydrolysis-resistant materials.
High Electromagnetic Interference (EMI) Areas: Non-metallic FRP core makes it very appropriate for areas with high electromagnetic interference, e.g., near electrical generating plants or high tension transmission lines.
Aerial Cables Installation: The improved tensile strength and weather-resistant outer sheath render it suitable for deployment from an aerial platform and can endure outdoor weather pressure and tension.
Duct Cable Installations: Lightweight and compact in design, it installs easily in ducts for effective moisture protection and robust performance in buried applications.
Rough weather conditions: Able to operate successfully in cold- and hot-temperature environments and changing environments.
Long-distance Communication: With low attenuation and high-quality optical transmission capability, it is suitable for use in intercity, rural, or distant area backbone networks needing good long-distance communications.
High-Seismic Zones: Non-metallic construction provides greater resistance to churning, hence less probability of cracking in seismically active areas.
Smart cities and street network infrastructure: Perfect for intelligent cities such as traffic monitoring networks, intelligent streetlights, and municipal wireless Wi-Fi networks with tried and tested reliability for cities.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Loose Tubes
|
Filling Ropes
|
Cable Weight
Kg/km
|
Tensile Strength
Long/short term
N
|
Crush Force
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYFTA-2~6Xn
|
2~6
|
1
|
5
|
99
|
400/1000
|
300/1000
|
10D/20D
|
|
GYFTA-8~12Xn
|
8~12
|
2
|
4
|
99
|
|
GYFTA-14~18Xn
|
14~18
|
3
|
3
|
99
|
|
GYFTA-20~24Xn
|
20~24
|
4
|
2
|
99
|
|
GYFTA-26~30Xn
|
26~30
|
5
|
1
|
99
|
|
GYFTA-32~36Xn
|
32~36
|
6
|
0
|
99
|
|
GYFTA-2~6Xn
|
2~6
|
1
|
6
|
111
|
600/1500
|
|
GYFTA-8~12Xn
|
8~12
|
2
|
5
|
111
|
|
GYFTA-14~18Xn
|
14~18
|
3
|
4
|
111
|
|
GYFTA-20~24Xn
|
20~24
|
4
|
3
|
111
|
|
GYFTA-26~30Xn
|
26~30
|
5
|
2
|
111
|
|
GYFTA-32~36Xn
|
32~36
|
6
|
1
|
111
|
|
GYFTA-38~42Xn
|
38~42
|
7
|
0
|
111
|
|
GYFTA-44~48Xn
|
44~48
|
4
|
2
|
122
|
|
GYFTA-50~60Xn
|
50~60
|
5
|
1
|
122
|
|
GYFTA-62~72Xn
|
62~72
|
6
|
0
|
122
|
|
GYFTA-2~6Xn
|
2~6
|
1
|
7
|
127
|
1000/3000
|
|
YFTA-8~12Xn
|
8~12
|
2
|
6
|
127
|
|
GYFTA-14~18Xn
|
14~18
|
3
|
5
|
127
|
|
GYFTA-20~24Xn
|
20~24
|
4
|
4
|
127
|
|
GYFTA-26~30Xn
|
26~30
|
5
|
3
|
127
|
|
GYFTA-32~36Xn
|
32~36
|
6
|
2
|
127
|
|
GYFTA-38~42Xn
|
38~42
|
7
|
1
|
127
|
|
GYFTA-44~48Xn
|
44~48
|
8
|
0
|
127
|
|
GYFTA-50~60Xn
|
50~60
|
5
|
3
|
136
|
|
GYFTA-62~72Xn
|
62~72
|
6
|
2
|
136
|
|
GYFTA-74~84Xn
|
74~84
|
7
|
1
|
136
|
|
GYFTA-86~96Xn
|
86~96
|
8
|
0
|
136
|
|
GYFTA-98~108Xn
|
98~108
|
9
|
1
|
161
|
|
GYFTA-110~120Xn
|
110~120
|
10
|
0
|
161
|
|
GYFTA-122~132Xn
|
122~132
|
11
|
1
|
195
|
|
GYFTA-134~144Xn
|
134~144
|
12
|
0
|
195
|
*Sizes and performance values can be specified by customers.
