Description
GYTZA53 optical cable is engineered to deliver high performance and reliability in demanding outdoor environments. Colored optical fibers are securely placed in a loose tube made of high-modulus material, offering superior hydrolysis resistance and mechanical strength. The tube is filled with thixotropic gel, providing critical water-blocking and sealing protection to the optical fibers.
At the core of the cable is a metal strength member, enhancing tensile strength and ensuring structural stability. The loose tubes and filler ropes are stranded around this central strength member, forming a compact circular cable core, with the interstices filled with water-blocking gel to prevent moisture ingress.
The cable's construction includes a coated aluminum tape, longitudinally wrapped and encased in a polyethylene inner sheath for added protection. A double-sided coated steel tape armor layer provides enhanced mechanical robustness and forms a flame-retardant outer protective layer, ensuring compliance with fire safety standards.
Feature

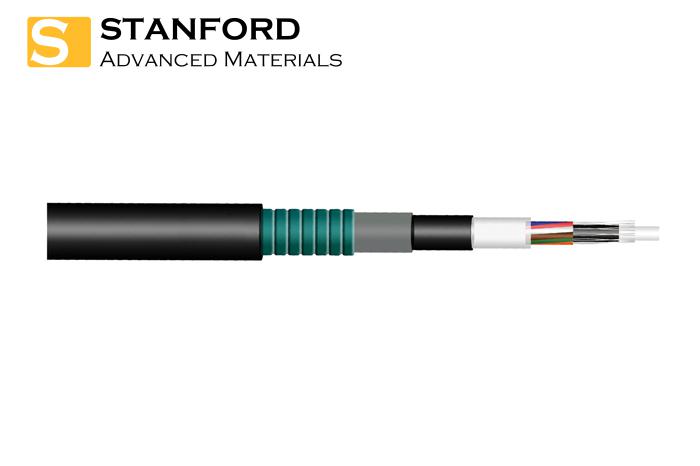

Cross-section Diagram
- Hydrolysis-Resistant Loose Tube Material:
Constructed from high-modulus material, the loose tube provides superior resistance to hydrolysis and high mechanical strength, ensuring long-lasting protection for the optical fibers.
The loose tube is filled with thixotropic gel, offering essential sealing and water-blocking protection to shield the optical fibers from environmental moisture and damage.
- Flame-Retardant Sheath Material:
The outer sheath is made from a special flame-retardant material that meets stringent fire safety standards, ensuring reliable performance in fire-sensitive environments.
- Metal Center Strength Member:
A single metal core enhances the cable’s tensile strength and structural stability, making it suitable for installations requiring robust support.
- Outstanding Mechanical and Temperature Performance:
Designed to deliver reliable performance under mechanical stress and across a wide range of temperature conditions, ensuring adaptability to diverse environments.
- Coated Aluminum Tape Layer:
The longitudinally wrapped aluminum tape provides an effective moisture barrier, enhancing the cable’s resistance to environmental humidity and wet conditions.
- Double-Sided Corrugated Steel Tape (PSP) Armor:
The cable is further protected by double-sided coated steel tape, which enhances resistance to moisture ingress and mechanical impacts, ensuring long-term durability even in challenging outdoor conditions.
Application Scenario
- Urban Communication Networks:
Ideal for backbone and distribution networks in cities where fire safety compliance and reliable performance are crucial.
- Industrial and High-Risk Fire Areas:
Suitable for deployment in industrial zones, chemical plants, and other areas with potential fire hazards due to its flame-retardant outer sheath.
- Underground Duct Installations:
Perfect for underground ducts or tunnels where moisture resistance and robust mechanical properties are necessary to prevent cable degradation.
- Tunnel and Subway Systems:
Designed for confined spaces such as tunnels and subways, providing flame retardancy and high tensile strength for secure and safe operation.
- High-Humidity and Coastal Environments:
The water-blocking gel and aluminum tape layer make it ideal for installations in coastal areas, regions with high rainfall, or other moisture-prone settings.
The cable’s reinforced structure and excellent tensile strength make it suitable for aerial installations where mechanical stress and UV resistance are key.
- Critical Infrastructure and Smart City Projects:
Essential for reliable communication in smart city networks, transportation hubs, and public infrastructure where safety and long-term durability are priorities.
Effective for long-distance installations in remote or rural locations, providing durable and reliable performance in harsh outdoor conditions.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Loose Tubes
|
Filling Ropes
|
Cable Weight
Kg/km
|
Tensile strength
Long/short term
N
|
Crush
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYTZA53-2~6Xn
|
2~6
|
1
|
5
|
217
|
1000/3000
|
1000/3000
|
12.5D/25D
|
|
GYTZA53-8~12Xn
|
8~12
|
2
|
4
|
217
|
|
GYTZA53-14~18Xn
|
14~18
|
3
|
3
|
217
|
|
GYTZA53-20~24Xn
|
20~24
|
4
|
2
|
217
|
|
GYTZA53-26~30Xn
|
26~30
|
5
|
1
|
217
|
|
GYTZA53-32~36Xn
|
32~36
|
6
|
0
|
217
|
|
GYTZA53-38~48Xn
|
38~48
|
4
|
1
|
235
|
|
GYTZA53-50~60Xn
|
50~60
|
5
|
0
|
235
|
|
GYTZA53-62~72Xn
|
62~72
|
6
|
0
|
250
|
|
GYTZA53-74~84Xn
|
74~84
|
7
|
1
|
286
|
|
GYTZA53-86~96Xn
|
86~96
|
8
|
0
|
286
|
|
GYTZA53-98~108Xn
|
98~108
|
9
|
1
|
330
|
|
GYTZA53-110~120Xn
|
110~120
|
10
|
0
|
330
|
|
GYTZA53-122~132Xn
|
122~132
|
11
|
1
|
366
|
|
GYTZA53-134~144Xn
|
134~144
|
12
|
0
|
366
|
|
GYTZA53-146~216Xn
|
146~216
|
13-18
|
5-0
|
366
|
