Description

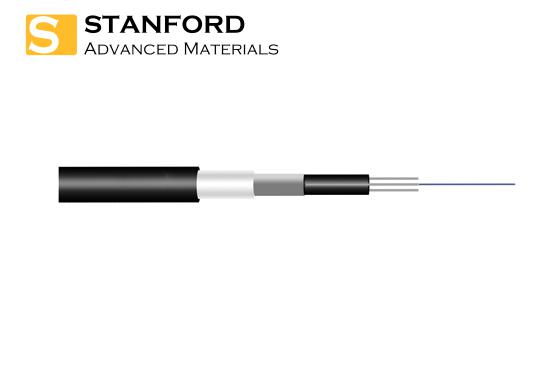

GJYXFHA optical cable is designed for seamless conduit entry of optical cables. Its innovative structure places the communication unit at the core, flanked by two parallel non-metallic strength members (FRP) for enhanced durability and flexibility. An additional steel wire strength member is integrated on the outer side to provide extra mechanical strength. The cable is encased in a black low-smoke zero-halogen (LSZH) sheath, ensuring fire safety and minimal environmental impact. Further reinforced with an aluminum foil moisture-proof layer and finished with a robust PE sheath, this cable offers superior moisture resistance and protection, making it ideal for pipeline applications requiring reliable and efficient optical communication solutions.
Feature

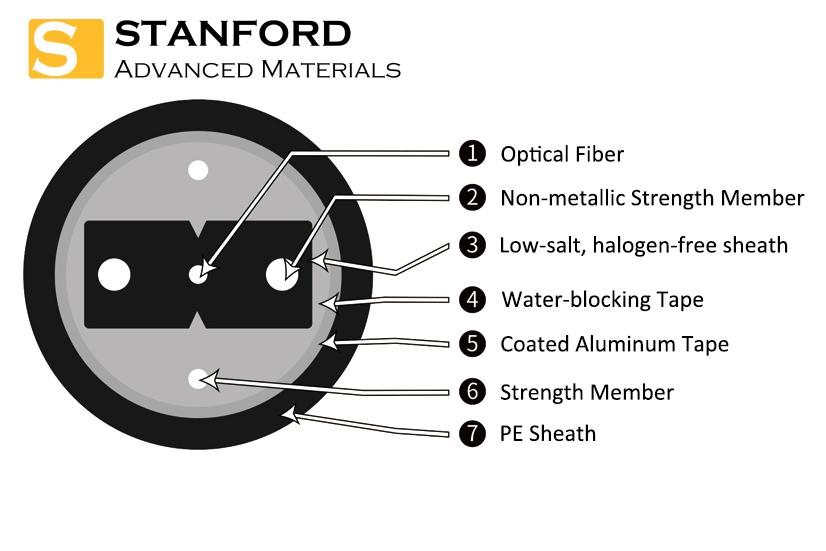

Cross-section Diagram
- Specialized bend-resistant optical fibers deliver enhanced bandwidth and superior network transmission performance.
- Single steel wire strength member ensures excellent tensile performance for the cable.
- Two parallel FRP (Fiber Reinforced Plastic) elements enhance compression resistance and protect the optical fibers.
- Simple structure, lightweight, and practical design for versatile applications.
- Easy stripping feature facilitates quick splicing, simplifying installation and maintenance.
- Low smoke zero halogen (LSZH) flame-retardant sheath ensures environmental friendliness and fire safety.
- PE outer sheath provides outstanding UV resistance for outdoor durability.
- Coated aluminum tape serves as a moisture-proof barrier for reliable performance in damp environments.
Application Scenario
Ideal for connecting optical networks within residential, commercial, and industrial buildings.
- FTTH (Fiber to the Home) Installations:
Specifically designed for last-mile fiber deployment to individual homes and apartments.
- Pipeline and Conduit Systems:
Optimized for placement in pipelines, conduits, or ducts for protected and organized cabling.
Used in high-speed communication networks for enhanced bandwidth and reliable data transmission.
- Telecommunication Backbone Systems:
Suitable for use in backbone connections within a telecommunication network infrastructure.
- Industrial Fiber Networks:
Suitable for factories, plants, and industrial sites requiring robust and durable optical cabling solutions.
- Campus and Data Center Connectivity:
Facilitates connectivity in campus-wide networks and between data center facilities.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Specification
Optical Characteristics
|
Fiber Type
|
Condition
|
Unit
|
G657A1
|
G657A2
|
OM3
|
OM4
|
|
Attenuation
|
1310/1550nm
|
Typical Value
|
dB/km
|
0.36/0.22
|
0.36/0.22
|
-
|
-
|
|
Max. Value
|
dB/km
|
0.5/0.4
|
0.5/0.4
|
-
|
-
|
|
850/1300nm
|
Typical Value
|
dB/km
|
-
|
-
|
3.0/1.0
|
3.0/1.0
|
|
Max. Value
|
dB/km
|
-
|
-
|
3.5/1.5
|
3.5/1.5
|
|
Fully Loaded Bandwidth
|
850/1300nm
|
mHZ·km
|
-
|
-
|
≥500/500
|
≥200/500
|
|
Effective model Bandwidth
|
850nm
|
mHZ·km
|
-
|
-
|
≥2000
|
≥4700
|
|
10g Ethernet Link Length
|
850nm
|
m
|
-
|
-
|
≤300
|
≤550
|
|
Min. Bending Radius
|
-
|
mm
|
10
|
7.5
|
30
|
30
|
Structural Parameters
|
Model
|
Core Number
|
Cable Size
|
Cable Weight
|
Tensile Force
Long/Short-term
N
|
Crush Force
Long/Short-term
N
|
Bending Radius
Static/Dynamic
mm
|
|
GJYXFHAH-1Xn
|
1
|
7.3
|
42
|
200/600
|
2000
|
10D/20D
|
|
GJYXFHAH-2Xn
|
2
|
7.3
|
42
|
*Sizes and performance values can be specified by customers.
