Description

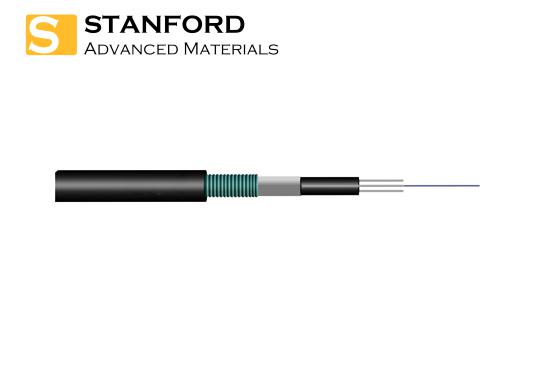

GJYXFHS optical cable is engineered for efficient conduit entry of optical cables, offering robust performance and durability. Its innovative design positions the communication unit at the core, flanked by two parallel non-metallic strength members (FRP) for enhanced compression resistance and fiber protection. An additional steel wire strength member is incorporated on the outer side to provide excellent tensile strength. The cable is encased in a black low-smoke zero-halogen (LSZH) sheath, ensuring safety and environmental compliance. Further reinforced with a steel tape moisture-proof layer and a durable PE outer sheath, this cable delivers superior moisture resistance, UV protection, and reliability, making it ideal for demanding pipeline applications.
Feature

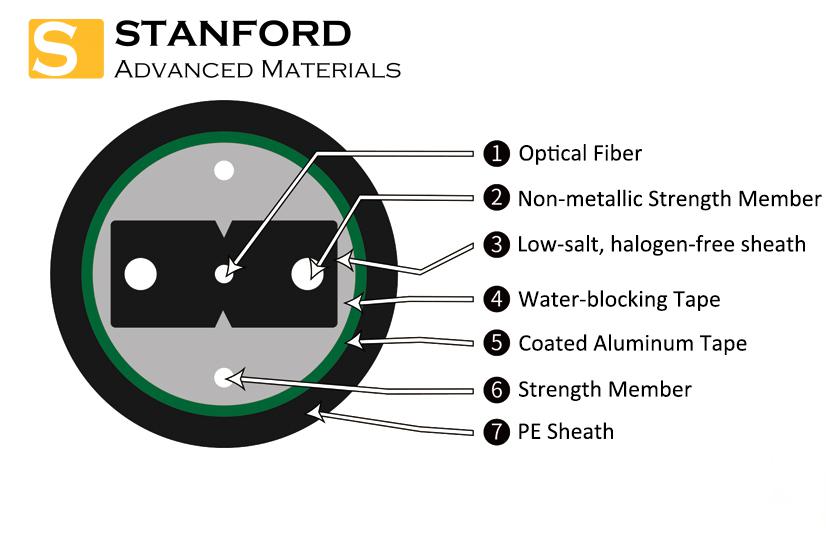

Cross-section Diagram
- Specialized bend-resistant optical fibers provide greater bandwidth and improve network transmission performance.
- Single steel wire strength member ensures excellent tensile performance and durability.
- Two parallel FRP (Fiber Reinforced Plastic) elements enhance compression resistance and protect the optical fibers.
- Simple structure, lightweight, and practical design for easy deployment.
- Easy stripping feature simplifies splicing, making installation and maintenance more efficient.
- Low smoke zero halogen (LSZH) flame-retardant sheath is environmentally friendly and safe.
- PE outer sheath offers outstanding UV resistance for outdoor applications.
- Double-sided coated steel tape provides enhanced penetration resistance and an effective moisture-proof barrier.
Application Scenario
- Indoor and Outdoor Access Networks:
Ideal for connecting optical networks within residential, commercial, and industrial buildings.
- FTTH (Fiber to the Home) Installations:
Specifically designed for last-mile fiber deployment to individual homes and apartments.
- Pipeline and Conduit Systems:
Optimized for placement in pipelines, conduits, or ducts for protected and organized cabling.
Used in high-speed communication networks for enhanced bandwidth and reliable data transmission.
- Telecommunication Backbone Systems:
Suitable for use in backbone connections within a telecommunication network infrastructure.
- Environmentally Demanding Applications:
With its moisture-proof aluminum tape layer and UV-resistant PE outer sheath, it performs well in environments with high humidity, sunlight exposure, or temperature variations.
- Industrial Fiber Networks:
Suitable for factories, plants, and industrial sites requiring robust and durable optical cabling solutions.
- Campus and Data Center Connectivity:
Facilitates connectivity in campus-wide networks and between data center facilities.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Specification
Optical Characteristics
|
Fiber Type
|
Condition
|
Unit
|
G657A1
|
G657A2
|
OM3
|
OM4
|
|
Attenuation
|
1310/1550nm
|
Typical Value
|
dB/km
|
0.36/0.22
|
0.36/0.22
|
-
|
-
|
|
Max. Value
|
dB/km
|
0.5/0.4
|
0.5/0.4
|
-
|
-
|
|
850/1300nm
|
Typical Value
|
dB/km
|
-
|
-
|
3.0/1.0
|
3.0/1.0
|
|
Max. Value
|
dB/km
|
-
|
-
|
3.5/1.5
|
3.5/1.5
|
|
Fully Loaded Bandwidth
|
850/1300nm
|
mHZ·km
|
-
|
-
|
≥500/500
|
≥200/500
|
|
Effective model Bandwidth
|
850nm
|
mHZ·km
|
-
|
-
|
≥2000
|
≥4700
|
|
10g Ethernet Link Length
|
850nm
|
m
|
-
|
-
|
≤300
|
≤550
|
|
Min. Bending Radius
|
-
|
mm
|
10
|
7.5
|
30
|
30
|
Structural Parameters
|
Model
|
Core Number
|
Cable Size
|
Cable Weight
|
Tensile Force
Long/Short-term
N
|
Crush Force
Long/Short-term
N
|
Bending Radius
Static/Dynamic
mm
|
|
GJYXFHS-1Xn
|
1
|
7.4
|
59
|
200/600
|
2000
|
10D/20D
|
|
GJYXFHS-2Xn
|
2
|
7.4
|
59
|
*Sizes and performance values can be specified by customers.
