Description

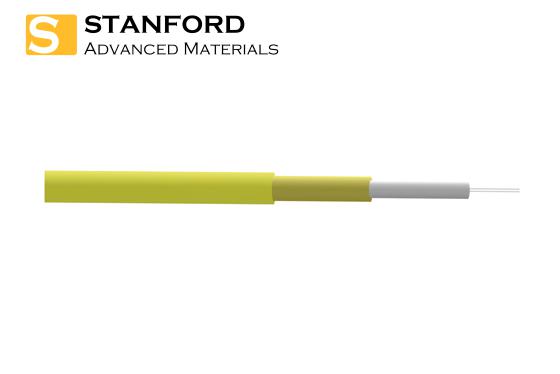

SXC optical cable is a reliable and efficient solution for indoor fiber optic networking. Its design includes tight-buffered optical fibers for optimal transmission, aramid yarns for strength, and a PVC outer sheath for added protection. For those needing a more environmentally friendly option, low-smoke zero-halogen materials are available upon request. This cable ensures smooth and consistent data transmission, making it a top choice for various indoor applications.
Feature

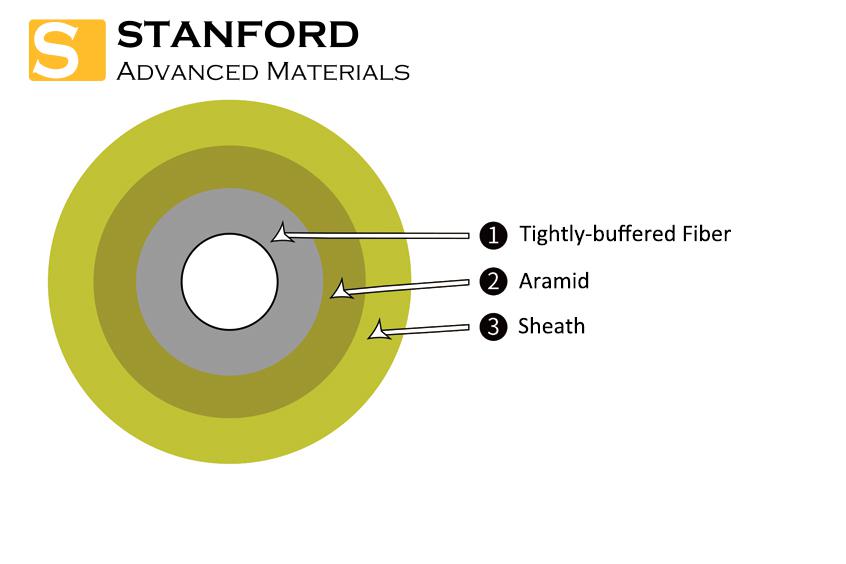

Cross-section Diagram
- Tight-buffered optical fibers enable easy stripping for efficient handling.
- Tight-buffered optical fibers provide excellent flame retardancy for enhanced safety.
- Aramid yarn strength members deliver exceptional tensile performance, ensuring cable durability.
- The outer sheath material offers corrosion resistance, waterproofing, flame resistance, and eco-friendly properties.
Application Scenario
- Ideal for fiber optic patch cords or pigtails in active network connections.
- Suitable for indoor riser and plenum cabling in vertical shafts and forced ventilation environments.
- Used for interconnecting instruments and communication equipment.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Optical Characteristics
|
Fiber Type
|
Attenuation
|
Fully
Loaded Bandwidth
|
Effective
Modal Bandwidth
|
10g Ethernet
Link Length
|
Min. Bending
Radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
-
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
mHz·km
|
mHz·km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
7.5
|
|
50/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
-
|
-
|
30
|
|
62.5/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
-
|
-
|
30
|
|
OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
|
BI-OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
7.5
|
|
BI-OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
7.5
|
Structural Parameters
|
Model
|
Core Dia.
|
Cable Weight
kg/km
|
Tight-buffered
Optical Fiber
Dia.
|
Tensile Force
Long/Short-term
|
Crush Force
Long/Short-term
|
Bending Radius
Static/Dynamic
|
|
mm
|
PVC Sheath
|
LSZH Sheath
|
mm
|
N
|
N
|
mm
|
|
SXC-1.6
|
1.6±0.2
|
2.4
|
2.6
|
600±50
|
40/80
|
100/500
|
60/30
|
|
SXC-1.9
|
1.9±0.2
|
3.5
|
4.5
|
900±50
|
60/100
|
100/500
|
60/30
|
|
SXC-2.8
|
2.8±0.2
|
6.0
|
7.5
|
900±50
|
60/100
|
100/500
|
60/30
|
*Sizes and performance values can be specified by customers.
