Description

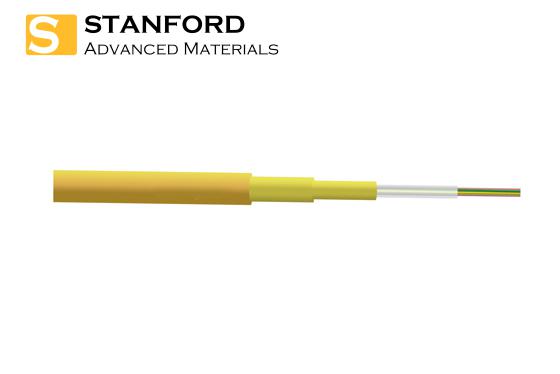

GJFDV optical cable is specifically designed for reliable and efficient indoor optical communication. Utilizing ribbon fiber as the optical transmission medium, this cable ensures high-density fiber deployment and superior signal transmission. The ribbon fiber is encased in a loose tube made from high-modulus material for optimal protection and structural stability. A layer of aramid yarn is incorporated as the strength member, providing exceptional tensile performance and durability. The cable is then finished with an extruded polyethylene (PE) sheath, offering excellent environmental resistance and ensuring long-lasting performance in indoor applications.

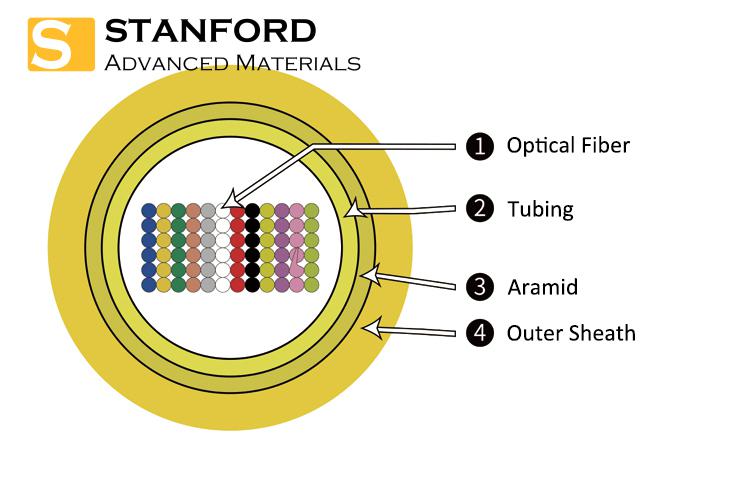

Cross-section Diagram
- Ribbon fiber design enables high integration and efficient fiber management.
- Aramid yarn strength members provide exceptional tensile strength for enhanced durability.
- The outer sheath material offers corrosion resistance, waterproofing, flame resistance, and eco-friendly properties.
Application Scenario
- Ideal for indoor wiring in various environments.
- Suitable for interconnection of instruments and communication equipment.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Optical Characteristics
|
Fiber Type
|
Attenuation
|
Fully
Loaded Bandwidth
|
Effective
Modal Bandwidth
|
10g Ethernet
Link Length
|
Min. Bending
Radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
-
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
mHz·km
|
mHz·km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
7.5
|
|
50/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
-
|
-
|
30
|
|
62.5/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
-
|
-
|
30
|
|
OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
|
BI-OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
7.5
|
|
BI-OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
7.5
|
Structural Parameters
|
Model
|
Cable Core
|
Cable Weight
|
Tensile Force
Long/Short-term
|
Crush Force
Long/Short-term
|
Bending Radius
Static/Dynamic
|
|
Kg/km
|
mm
|
N
|
mm
|
|
GJFDV-X-48Xn
|
12Fx4
|
84
|
200/660
|
300/1000
|
25D/12.5D
|
|
GJFDV-X-72Xn
|
12Fx6
|
90
|
200/660
|
300/1000
|
25D/12.5D
|
|
GJFDV-X-96Xn
|
12Fx8
|
100
|
200/660
|
300/1000
|
25D/12.5D
|
|
GJFDV-X-144Xn
|
12Fx12
|
125
|
200/660
|
300/1000
|
25D/12.5D
|
*Sizes and performance values can be specified by customers.
