Description

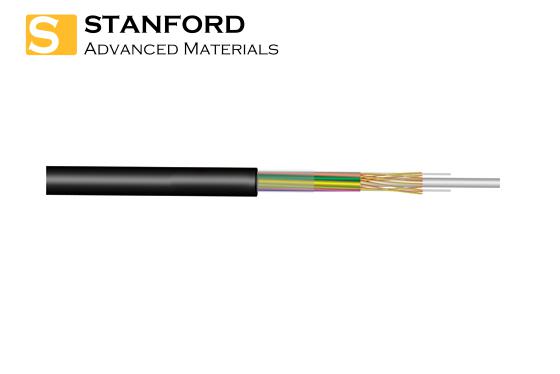

GCYFTY optical cable is a reliable and efficient solution for high-speed optical communication networks. Colored optical fibers are housed in a loose tube made from high-modulus, water-resistant material, ensuring excellent fiber protection. The loose tube is filled with a non-toxic, harmless waterproof compound to safeguard against moisture. At the center of the cable core is a non-metallic reinforcing core (FRP), around which the loose tubes or filling yarn are twisted to form a compact and circular structure. A water-blocking yarn is applied outside the reinforcing core to enhance moisture resistance. Finally, the cable is encased in a black or colored high-density polyethylene (HDPE) sheath, providing robust environmental protection. This lightweight and durable cable is ideal for air-blown installations in microducts, delivering reliable performance in various network applications.
Feature

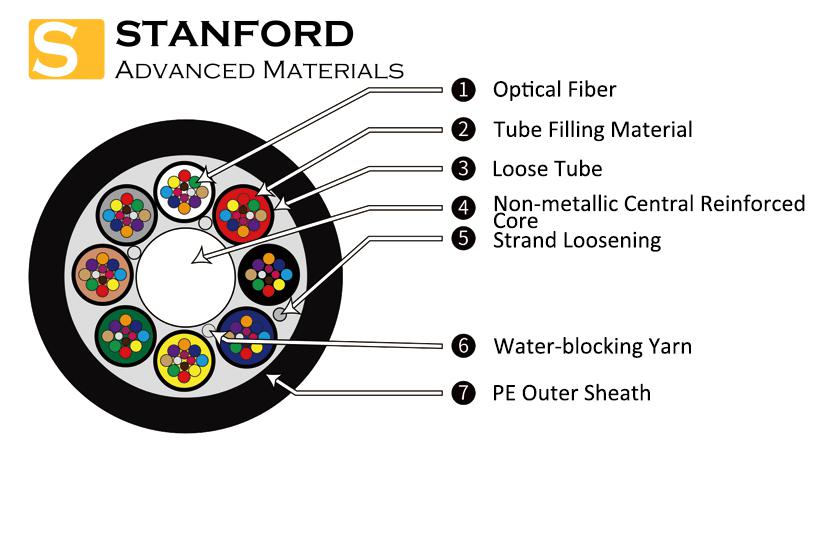

Cross-section Diagram
- Non-metallic reinforcing elements create a compact outer diameter, lightweight design, moderate flexibility, and a low-friction sheath, enabling extended air-blowing distances.
- Special oil paste inside the loose tube provides cushioning protection for optical fibers and ensures excellent waterproof performance.
- Tight cable structure effectively prevents tube shrinkage, maintaining cable integrity and reliability.
Application Scenario
- FTTH (Fiber to the Home) Networks:
Ideal for delivering high-speed optical connectivity directly to residential and commercial premises.
Suitable for use in access layer networks, enabling reliable connections to end-users.
- Indoor and Outdoor Deployments:
Versatile for both indoor and outdoor environments requiring lightweight, non-metallic, and moisture-resistant cables.
- Telecommunication Networks:
Utilized in high-speed data and communication networks, supporting robust and scalable infrastructure.
- Network Expansion and Upgrades:
Perfect for extending existing networks or upgrading infrastructure with minimal disruption and construction requirements.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Structural Parameters
|
Model
|
Fiber Count
|
Loose Tubes
|
Filling Ropes
|
Cable Dia.
|
Cable Weight
|
Tensile Force
Long/Short-term
|
Crush Force
Long/Short-term
|
Bending Radius
Static/Dynamic
|
|
Kg/km
|
N
|
N
|
mm
|
|
GCYFTY-24~72Xn
|
24~72
|
2~6
|
4~0
|
5.6
|
21
|
150/500
|
150/450
|
10D/20D
|
|
GCYFTY-96Xn
|
96
|
8
|
0
|
6.4
|
31
|
250/800
|
150/450
|
10D/20D
|
|
GCYFTY-144Xn
|
144
|
12
|
0
|
8.3
|
49
|
250/800
|
150/450
|
10D/20D
|
*Sizes and performance values can be specified by customers.
