Description

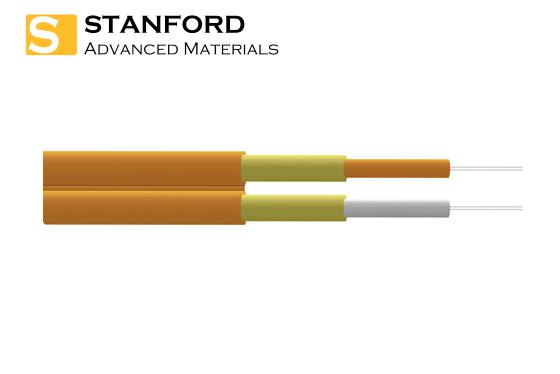

ZCC optical cable is a high-quality solution designed for efficient and reliable optical communication. Featuring dual-core optical transmission units, the cable utilizes 900μm or 600μm tight-buffered optical fibers for excellent signal performance and protection. Aramid yarns are employed as strength members, ensuring superior tensile strength and durability. The cable is finished with a figure-8 polyvinyl chloride (PVC) sheath for robust environmental resistance. For enhanced safety and eco-friendliness, an optional low smoke zero halogen (LSZH) sheath can be provided to meet specific customer requirements. This lightweight and versatile design makes it ideal for a wide range of optical communication applications.
Feature

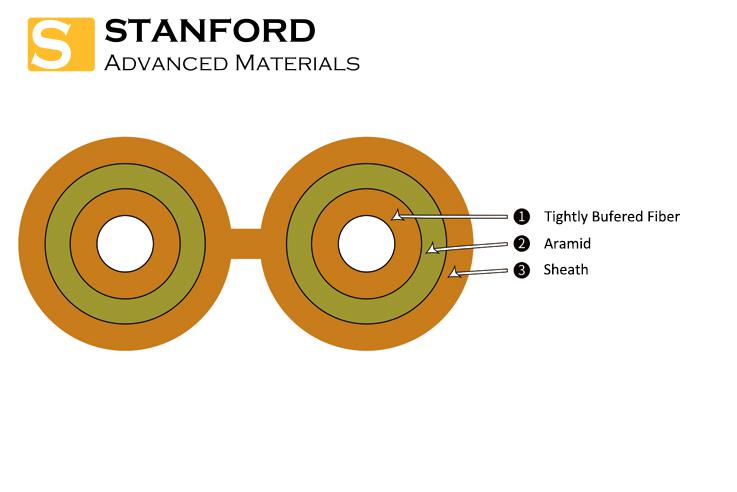

Cross-section Diagram
- Tight-buffered optical fibers allow for easy stripping and efficient handling.
- Tight-buffered optical fibers provide excellent flame retardancy for enhanced safety.
- Aramid yarn strength members deliver exceptional tensile strength and durability.
- The outer sheath material ensures corrosion resistance, waterproofing, flame resistance, and eco-friendly properties.
- The figure-8 structure facilitates easy stripping for branching applications.
Application Scenario
- Fiber Optic Patch Cords and Pigtails:
Suitable for active connections in optical communication networks.
- Indoor Riser and Plenum Cabling:
Ideal for vertical shafts and areas requiring forced ventilation cabling.
- Interconnection of Instruments and Communication Equipment:
Used for connecting optical devices and communication systems.
The figure-8 structure is designed for easy stripping, making it suitable for branching usage.
- FTTH (Fiber to the Home) Networks:
Supports direct connections to residential and commercial buildings.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Structural Parameters
|
Model
|
Cable Dia.
|
Cable Weight
kg/km
|
Tight-buffered
Optical Fiber
Dia.
|
Tensile Force
Long/Short-term
|
Crush Force
Long/Short-term
|
Bending Radius
Static/Dynamic
|
|
mm
|
PVC Sheath
|
LSZH Sheath
|
mm
|
N
|
N
|
mm
|
|
ZCC-1.6
|
(3.4±0.3)X(1.6±0.3)
|
4.8
|
5.3
|
600±50
|
40/80
|
100/500
|
60/30
|
|
ZCC-1.9
|
(4.0±0.3)X(1.9±0.3)
|
8.0
|
8.7
|
900±50
|
100/200
|
100/500
|
60/30
|
|
ZCC-2.8
|
(5.8±0.3)X(2.8±0.3)
|
11.6
|
14.8
|
900±50
|
100/200
|
100/500
|
60/30
|
Optical Characteristics
|
Fiber Type
|
Attenuation
|
Fully
Loaded Bandwidth
|
Effective
Modal Bandwidth
|
10g Ethernet
Link Length
|
Min. Bending
Radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
-
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
mHz·km
|
mHz·km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
7.5
|
|
50/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
-
|
-
|
30
|
|
62.5/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
-
|
-
|
30
|
|
OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
|
BI-OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
7.5
|
|
BI-OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
7.5
|
*Sizes and performance values can be specified by customers.
