Description

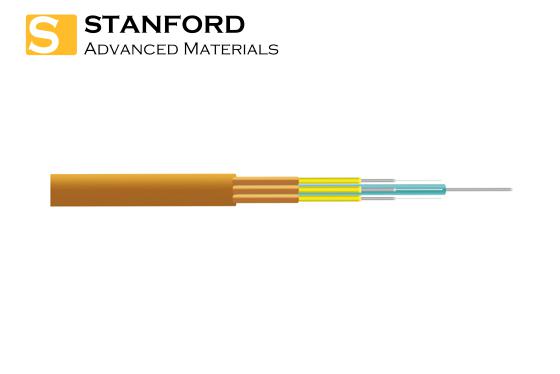

BOC optical cable is a versatile solution designed to meet the diverse needs of optical communication networks. Each subunit features a single-core optical cable with a 900μm tight-buffered optical fiber and aramid yarn for exceptional tensile strength and durability. A non-metallic central strengthening core provides stability and enhances mechanical performance. The subunits are precisely twisted around the central strengthening core to form a robust cable core, ensuring reliability in demanding environments. The cable is finished with an extruded polyvinyl chloride (PVC) sheath for environmental protection and durability. For enhanced safety and eco-friendliness, an optional low smoke zero halogen (LSZH) sheath is available to meet specific customer requirements. This cable is ideal for applications requiring flexible, reliable, and high-performance optical connectivity.
Feature

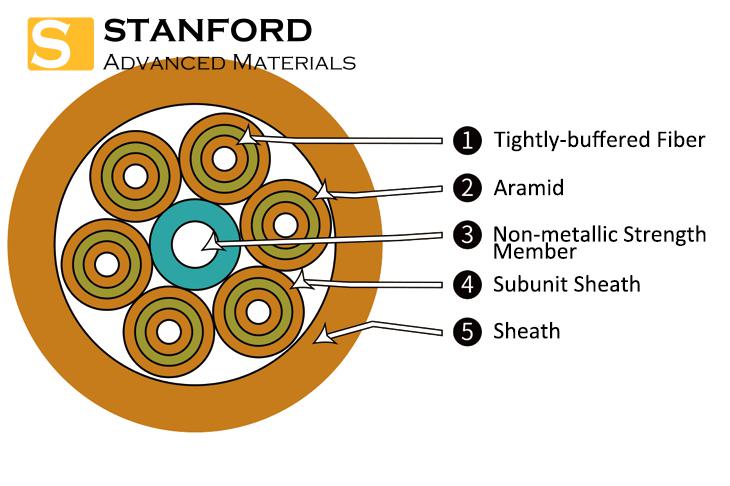

Cross-section Diagram
- Non-metallic strengthening core enhances tensile strength, allowing the cable to withstand greater mechanical forces.
- Aramid yarn strength members deliver exceptional tensile performance and durability.
- Outer sheath material provides corrosion resistance, waterproofing, flame resistance, and eco-friendly properties.
Application Scenario
- Ideal for indoor comprehensive cabling solutions.
- Suitable for backbone cabling in buildings for optical fiber networks.
Delivery
Recommended Delivery Length: 2000m.
Other lengths can be provided according to customer requirements.
Structural Parameters
|
Model
|
Cable Dia.
|
Cable Weight
kg/km
|
Tensile Force
Long/Short-term
|
Crush Force
Long/Short-term
|
Bending Radius
Static/Dynamic
|
|
mm
|
PVC Sheath
|
LSZH Sheath
|
N
|
N
|
mm
|
|
BOC-X-XX-04Xn
|
7.4±0.5
|
50
|
56
|
130/440
|
300/1000
|
20D/10D
|
|
BOC-X-XX-06Xn
|
8.4±0.5
|
66
|
74
|
200/660
|
300/1000
|
20D/10D
|
|
BOC-X-XX-08Xn
|
9.8±0.5
|
91
|
101
|
200/660
|
300/1000
|
20D/10D
|
|
BOC-X-XX-12Xn
|
12.4±0.5
|
140
|
155
|
200/660
|
300/1000
|
20D/10D
|
|
BOC-X-XX-18Xn
|
12.4±0.5
|
140
|
155
|
400/1320
|
300/1000
|
20D/10D
|
|
BOC-X-XX-24Xn
|
14.4±0.5
|
181
|
201
|
400/1320
|
300/1000
|
20D/10D
|
|
BOC-X-XX-36Xn
|
16.4±0.5
|
208
|
255
|
400/1320
|
300/1000
|
20D/10D
|
|
BOC-X-XX-48Xn
|
19±0.5
|
280
|
344
|
400/1320
|
300/1000
|
20D/10D
|
Optical Characteristics
|
Fiber Type
|
Attenuation
|
Fully
Loaded Bandwidth
|
Effective
Modal Bandwidth
|
10g Ethernet
Link Length
|
Min. Bending
Radius
|
|
Condition
|
1310/1550nm
|
850/1300nm
|
850/1300nm
|
850nm
|
850nm
|
-
|
|
Typical
|
Max.
|
Typical
|
Max.
|
|
Unit
|
dB/km
|
mHz·km
|
mHz·km
|
m
|
mm
|
|
G652D
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
16
|
|
G657A1
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
10
|
|
G657A2
|
0.36/0.22
|
0.5/0.4
|
-
|
-
|
-
|
-
|
-
|
7.5
|
|
50/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥500/500
|
-
|
-
|
30
|
|
62.5/125
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥200/500
|
-
|
-
|
30
|
|
OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
30
|
|
OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
30
|
|
BI-OM3
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥1500/500
|
≥2000
|
≤300
|
7.5
|
|
BI-OM4
|
-
|
-
|
3.0/1.0
|
3.5/1.5
|
≥3500/500
|
≥4700
|
≤550
|
7.5
|
*Sizes and performance values can be specified by customers.
