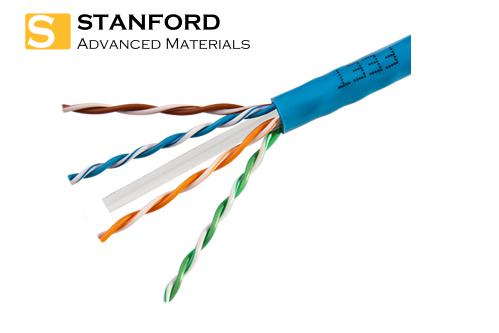

Cat 6 UTP Cable Description
Cat 6 UTP Cable features high-speed, high-bandwidth performance. The Cat 6 UTP cable offers a transmission rate of up to 1000Mbps and a bandwidth of 350MHz, making it ideal for high-end applications requiring the transmission of digital, voice, data, and video signals. It is particularly suitable for all E-level links and Cat. 6 applications.
The insulating layer has a tightness greater than 45N/50mm and ensures a core line retreating rate of over 100%. The twisted pairs are designed with opposite twisting directions to enhance the cable structure's stability and straightness.
Available in 15 color options for easy identification, the cable also features length markings on the box for intuitive tracking during installation.
Cat 6 UTP Cable Applications
- High-Speed Ethernet Networks: Used in Gigabit Ethernet (1000BASE-T) and 10 Gigabit Ethernet (10GBASE-T) networks for fast data transmission.
- Data Centers: Supports high-bandwidth data transfer essential for modern data centers and server farms.
- Smart Buildings: Used in structured cabling for building automation systems, including security, HVAC, and lighting systems.
- Office Networks: Ideal for providing fast, secure, and reliable connections in commercial office environments.
- Home Networking: Perfect for high-speed home network setups, including gaming, streaming, and home office connections.
Cat 6 UTP Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or Customized.
Manufacturing Process
- Wire Drawing: Copper is drawn to the required thickness.
- Core Stranding: Copper wires are twisted into pairs.
- Insulation: Each twisted pair is coated with an insulating material (typically polyethylene).
- Pair Twisting: The insulated pairs are twisted together to form the cable core.
- Outer Jacket Extrusion: The cable core is covered with an outer protective jacket, usually made of PVC.
- Testing and Quality Control: The cable is tested for performance, including crosstalk, impedance, and attenuation.
- Cutting and Packaging: The cable is cut to specified lengths, coiled, and packaged for shipment.
Comparison Table
Different Types of Cables
|
Feature
|
Cat 6 UTP Cable
|
Cat 6 Multi-strand UTP Cable
|
Cat 5e Multi-strand UTP Cable
|
|
Transmission Rate
|
Up to 10 Gbps
|
Up to 10 Gbps
|
Up to 1 Gbps
|
|
Bandwidth
|
250 MHz
|
250 MHz
|
100 MHz
|
|
Construction
|
Solid conductors
|
Multi-strand conductors
|
Multi-strand conductors
|
|
Max Distance (10 Gbps)
|
Up to 55 meters
|
Up to 55 meters
|
Not suitable for 10 Gbps
|
|
Signal Transmission
|
High-speed data, voice, video
|
High-speed data, voice, video
|
Basic data, voice, video
|
|
Durability
|
Higher durability
|
Flexible, durable for movement
|
Flexible but less durable
|
|
Common Applications
|
Data centers, office networks
|
Flexible networks, patch cables
|
Residential, VoIP, Ethernet
|
|
Items
|
Description
|
|
Conductor Material
|
Electric Copper Wire
|
|
Conductor Dia.
|
0.51 mm ≈24AWG
|
|
Insulation Materials
|
PE
|
|
Insulation Colors
|
1
|
2
|
3
|
4
|
|
White/Blue
|
White/Orange
|
White/Green
|
White/Brown
|
|
Blue
|
Orange
|
Green
|
Brown
|
|
Insulation Overall Dia.
|
≈0.8 mm
|
|
Outer Jacket Material
|
PVC
|
|
Outer Jacket Color
|
15 colors
|
|
Outer Jacket Thickness
|
0.5 mm
|
|
Overall Completed Diameter
|
5.4 mm
|
|
Approximate Weight
|
34 kg/km
|
Properties
|
Characteristic
|
Specification
|
|
Allowable Tension
|
≤110 N
|
|
Allowable Bending Radius
|
In progress: ≥8 times of Cable Dia.
|
|
Post operation: ≥4 times of Cable Dia.
|
|
Operating Temperature
|
In progress: 0 to 50℃
|
|
In operation: -20 to 60℃
|
|
Conductor Resistance (DC)
|
≤9.38 Ω/100m
|
|
Resistor Unbalance (DC)
|
≤5%
|
|
Capacitance
|
≤5.6nF/100m
|
|
Capacitance unbalance
|
≤330pF/100m
|
|
NVP
|
68.5%
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
