Cat 6 Multi-strand UTP Cable Description
Cat 6 Multi-strand UTP Cable is a high-quality, flexible networking cable designed to support 10 Gbps data transmission over short distances, with a bandwidth of up to 250 MHz. Built with multi-strand copper wires, this cable offers exceptional durability and flexibility, making it ideal for environments requiring frequent movement, tight spaces, or flexible installations.
Perfect for high-speed Ethernet networks, VoIP, video conferencing, and HD video streaming, the Cat 6 Multi-strand UTP cable ensures reliable, high-performance signal transmission in both residential and commercial networks. It is an excellent choice for patch cables, data centers, home networks, and any application that demands fast, stable connectivity.
Whether you're setting up a new network or upgrading an existing one, Cat 6 Multi-strand UTP Cable delivers the performance and flexibility needed for modern high-demand applications.

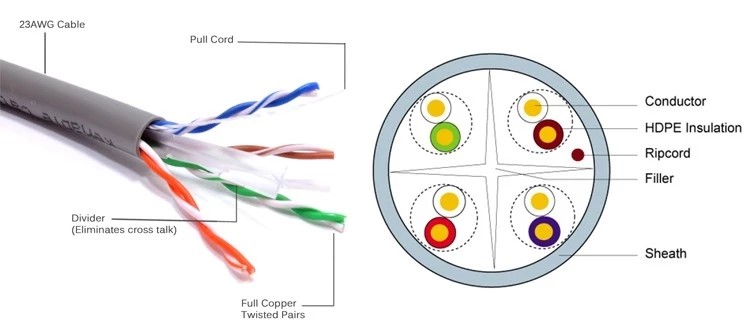

Cable Cross-Section Diagram
Cat 6 Multi-strand UTP Cable Applications
- High-Speed Ethernet Networks: Used in Gigabit Ethernet (1000BASE-T) and 10 Gigabit Ethernet (10GBASE-T) networks for fast data transmission.
- Data Centers: Supports high-bandwidth data transfer essential for modern data centers and server farms.
- Smart Buildings: Used in structured cabling for building automation systems, including security, HVAC, and lighting systems.
- Office Networks: Ideal for providing fast, secure, and reliable connections in commercial office environments.
- Home Networking: Perfect for high-speed home network setups, including gaming, streaming, and home office connections.
Cat 6 Multi-strand UTP Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: 300 m/Carton, Wooden box, Paper barrel, or Customized.
Manufacturing Process
- Wire Drawing: Copper is drawn to the required thickness.
- Core Stranding: Copper wires are twisted into pairs.
- Insulation: Each twisted pair is coated with an insulating material (typically polyethylene).
- Pair Twisting: The insulated pairs are twisted together to form the cable core.
- Outer Jacket Extrusion: The cable core is covered with an outer protective jacket, usually made of PVC.
- Testing and Quality Control: The cable is tested for performance, including crosstalk, impedance, and attenuation.
- Cutting and Packaging: The cable is cut to specified lengths, coiled, and packaged for shipment.
Comparison Table
Different Types of Cables
|
Feature
|
Cat 6 UTP Cable
|
Cat 6 Multi-strand UTP Cable
|
Cat 5e Multi-strand UTP Cable
|
|
Transmission Rate
|
Up to 10 Gbps
|
Up to 10 Gbps
|
Up to 1 Gbps
|
|
Bandwidth
|
250 MHz
|
250 MHz
|
100 MHz
|
|
Construction
|
Solid conductors
|
Multi-strand conductors
|
Multi-strand conductors
|
|
Max Distance (10 Gbps)
|
Up to 55 meters
|
Up to 55 meters
|
Not suitable for 10 Gbps
|
|
Signal Transmission
|
High-speed data, voice, video
|
High-speed data, voice, video
|
Basic data, voice, video
|
|
Durability
|
Higher durability
|
Flexible, durable for movement
|
Flexible but less durable
|
|
Common Applications
|
Data centers, office networks
|
Flexible networks, patch cables
|
Residential, VoIP, Ethernet
|
|
Items
|
Description
|
|
Conductor Material
|
Electric Copper Wire
|
|
Conductor Dia.
|
7*0.21 mm ≈24AWG
|
|
Insulation Materials
|
PE
|
|
Insulation Colors
|
1
|
2
|
3
|
4
|
|
White/Blue
|
White/Orange
|
White/Green
|
White/Brown
|
|
Blue
|
Orange
|
Green
|
Brown
|
|
Insulation Overall Dia.
|
≈0.9 mm
|
|
The cross Material
|
0.4/4.5 mm
|
|
Outer Jacket Material
|
PVC
|
|
Outer Jacket Color
|
15 colors
|
|
Outer Jacket Thickness
|
0.6 mm
|
|
Overall Completed Diameter
|
6.6 mm
|
|
Approximate Weight
|
45 kg/km
|
Properties
|
Characteristic
|
Specification
|
|
Allowable Tension
|
≤110 N
|
|
Allowable Bending Radius
|
In progress: ≥8 times of Cable Dia.
|
|
Post operation: ≥4 times of Cable Dia.
|
|
Operating Temperature
|
In progress: 0 to 50℃
|
|
In operation: -20 to 60℃
|
|
Conductor Resistance (DC)
|
≤9.38 Ω/100m
|
|
Resistor Unbalance (DC)
|
≤5%
|
|
Capacitance
|
≤5.6nF/100m
|
|
Capacitance unbalance
|
≤330pF/100m
|
|
NVP
|
68.5%
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
