Cat 5e Multi-strand UTP Cable Description

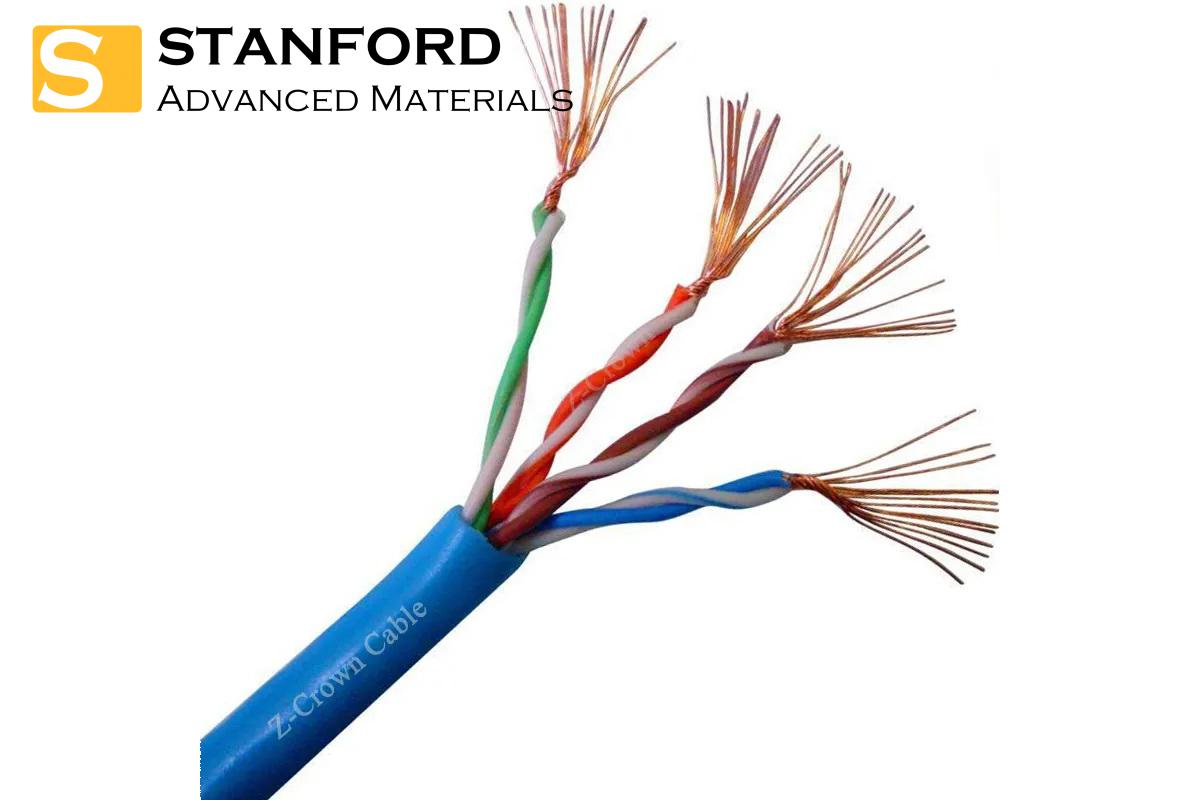

Cat 5e Multi-strand UTP Cable - Reliable and Flexible Networking Solution
The Cat 5e Multi-strand UTP Cable is a high-performance networking cable designed to support 1 Gbps data transmission and a bandwidth of 100 MHz. Made with multi-strand copper wires, it offers enhanced flexibility, making it ideal for applications where frequent movement or bending is required, such as patch cables and installations in tight spaces.
This cable is perfect for Ethernet networks, VoIP systems, home networking, and other low-to-medium-speed applications. Its unshielded twisted pair (UTP) design ensures reliable signal transmission with reduced crosstalk and interference. Whether for residential or commercial use, Cat 5e Multi-strand UTP Cable provides a cost-effective and efficient solution for all your networking needs.
Cable Cross-Section Diagram
Cat 5e Multi-strand UTP Cable Applications
- Ethernet Networks: Ideal for setting up local area networks (LANs), providing reliable data transmission for internet connectivity.
- VoIP (Voice over IP): Used for reliable voice communication in business and home networks.
- Home Networking: Suitable for connecting devices like computers, printers, smart TVs, and gaming consoles.
- Office Networking: Commonly used in small to medium-sized office environments for data and internet connectivity.
- Security Systems: Can be used for connecting IP cameras and other network-based security devices.
- Telecommunications: Provides connectivity for phone systems and other telecommunication applications.
- Patch Cables: Often used for patching connections between devices, like from a switch to a router or from a wall outlet to a device.
Cat 5e Multi-strand UTP Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: 300 m/Carton, Wooden box, Paper barrel, or Customized.
Manufacturing Process
- Wire Drawing: Copper is drawn to the required thickness.
- Core Stranding: Copper wires are twisted into pairs.
- Insulation: Each twisted pair is coated with an insulating material (typically polyethylene).
- Pair Twisting: The insulated pairs are twisted together to form the cable core.
- Outer Jacket Extrusion: The cable core is covered with an outer protective jacket, usually made of PVC.
- Testing and Quality Control: The cable is tested for performance, including crosstalk, impedance, and attenuation.
- Cutting and Packaging: The cable is cut to specified lengths, coiled, and packaged for shipment.
Comparison Table
Different Types of Cables
|
Feature
|
Cat 6 UTP Cable
|
Cat 6 Multi-strand UTP Cable
|
Cat 5e Multi-strand UTP Cable
|
|
Transmission Rate
|
Up to 10 Gbps
|
Up to 10 Gbps
|
Up to 1 Gbps
|
|
Bandwidth
|
250 MHz
|
250 MHz
|
100 MHz
|
|
Construction
|
Solid conductors
|
Multi-strand conductors
|
Multi-strand conductors
|
|
Max Distance (10 Gbps)
|
Up to 55 meters
|
Up to 55 meters
|
Not suitable for 10 Gbps
|
|
Signal Transmission
|
High-speed data, voice, video
|
High-speed data, voice, video
|
Basic data, voice, video
|
|
Durability
|
Higher durability
|
Flexible, durable for movement
|
Flexible but less durable
|
|
Common Applications
|
Data centers, office networks
|
Flexible networks, patch cables
|
Residential, VoIP, Ethernet
|
|
Items
|
Description
|
|
Conductor Material
|
Electric Copper Wire
|
|
Conductor Dia.
|
7*0.21 mm ≈24AWG
|
|
Insulation Materials
|
PE
|
|
Insulation Colors
|
1
|
2
|
3
|
4
|
|
White/Blue
|
White/Orange
|
White/Green
|
White/Brown
|
|
Blue
|
Orange
|
Green
|
Brown
|
|
Insulation Overall Dia.
|
≈0.9 mm
|
|
Outer Jacket Material
|
PVC
|
|
Outer Jacket Color
|
15 colors
|
|
Outer Jacket Thickness
|
0.5 mm
|
|
Overall Completed Diameter
|
5.5 mm
|
|
Approximate Weight
|
35 kg/km
|
Properties
|
Characteristic
|
Specification
|
|
Allowable Tension
|
≤110 N
|
|
Allowable Bending Radius
|
In progress: ≥8 times of Cable Dia.
|
|
Post operation: ≥4 times of Cable Dia.
|
|
Operating Temperature
|
In progress: 0 to 50℃
|
|
In operation: -20 to 60℃
|
|
Conductor Resistance (DC)
|
≤9.38 Ω/100m
|
|
Resistor Unbalance (DC)
|
≤5%
|
|
Capacitance
|
≤5.6nF/100m
|
|
Capacitance unbalance
|
≤330pF/100m
|
|
NVP
|
68.5%
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
