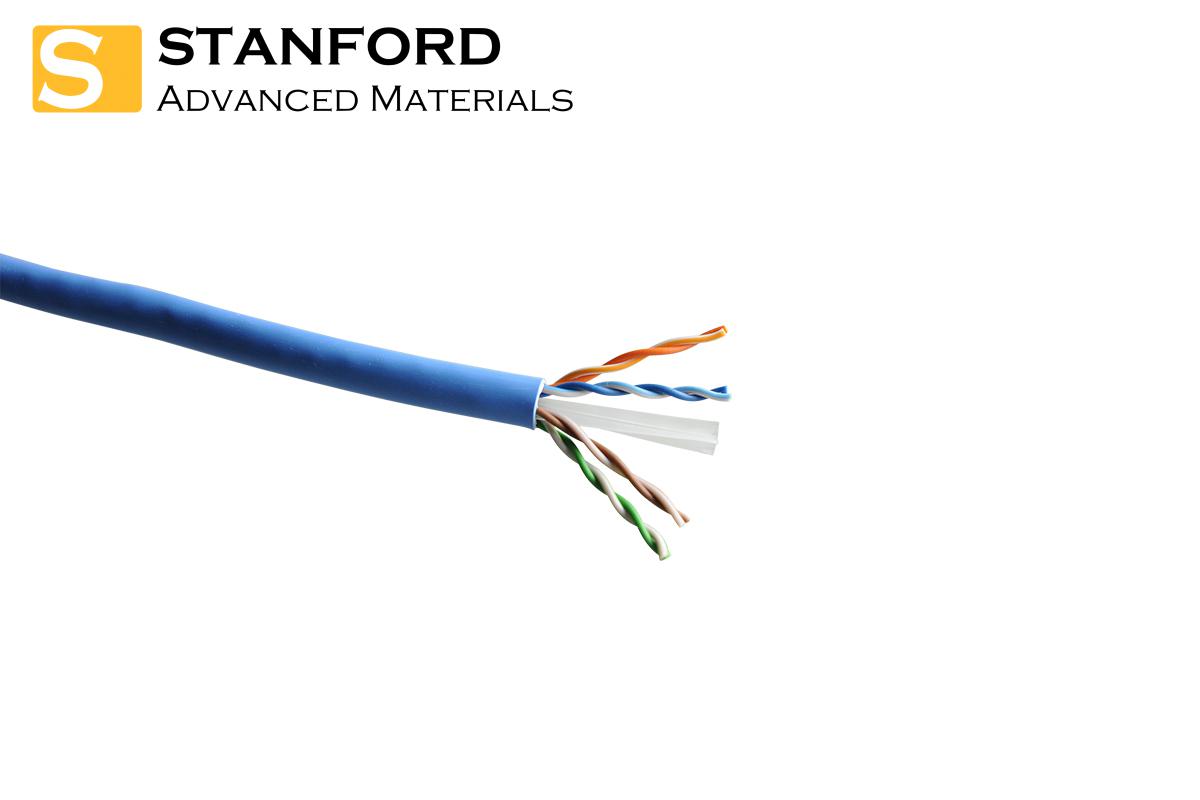

Low Smoke Zero Halogen (LSZH) Cat 6 UTP Cable Description
Low Smoke Zero Halogen (LSZH) Cat 6 UTP Cables offers a transmission rate of up to 1000Mbps and a bandwidth of 350MHz, making it ideal for transmitting digital, voice, data, and video signals in high-performance environments. Designed to meet the high-end demands of E-level links and Cat 6 applications, this cable ensures reliable and stable data transmission for modern network infrastructures.
With high-density PE cross skeleton isolation, the four twisted pairs are protected from interference, while the tight insulation (greater than 45N/50mm) ensures durability and performance. The cable features 100% back twisting to maintain structure stability and straightness, and the LSZH outer jacket provides excellent flame retardancy, low smoke, and zero halogen properties.
Available in 15 colors for easy identification, the cable also includes printed length markings for efficient installation and tracking. Whether for data centers, office networks, or high-demand environments, the LSZH Cat 6 UTP Cable offers the flexibility, safety, and performance needed for today’s advanced networking systems.
Low Smoke Zero Halogen (LSZH) Cat 6 UTP Cable Applications
- Data Centers: Ideal for high-performance networking environments where interference and data integrity are critical.
- Ethernet Networks: Used for high-speed Gigabit and 10 Gigabit Ethernet connections in business and commercial networks.
- VoIP (Voice over IP): Reliable for VoIP systems ensuring clear voice communication without interference.
- High-Speed Internet: Suitable for applications requiring high bandwidth, such as HD video streaming and online gaming.
- Industrial Environments: Excellent for environments with high levels of electromagnetic interference (EMI), like factories and manufacturing plants.
- Telecommunications: Used for phone systems and other telecommunications infrastructure that require high-quality, interference-free connections.
- Security Systems: Suitable for connecting IP cameras and other networked security devices.
- Building Automation Systems: Used in smart buildings for connecting devices such as sensors, security systems, and control units.
Low Smoke Zero Halogen (LSZH) Cat 6 UTP Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: 300 m/Carton, Wooden box, Paper barrel, or Customized.
Manufacturing Process
- Wire Drawing: Copper is drawn to the desired thickness (typically 24 AWG).
- Core Stranding: Copper wires are twisted into pairs to reduce crosstalk.
- Insulation: Each pair is coated with insulation (usually PE) to prevent interference.
- LSZH Outer Jacket: The cable is covered with a Low Smoke Zero Halogen jacket for fire safety.
- Coloring and Identification: The cable is color-coded and printed with length markings for easy identification.
- Quality Control and Testing: The cable undergoes electrical, mechanical, and fire safety tests.
- Cutting and Packaging: The cable is cut to required lengths, coiled, and packaged for shipment.
Comparison Table
Different Types of Cables
|
Feature
|
Cat 6 Multi-strand UTP Cable
|
Cat 5e Multi-strand UTP Cable
|
Low Smoke Zero Halogen (LSZH) Cat 6 UTP Cable
|
|
Transmission Rate
|
Up to 10 Gbps
|
Up to 1 Gbps
|
Up to 10 Gbps
|
|
Bandwidth
|
250 MHz
|
100 MHz
|
250 MHz
|
|
Conductor Type
|
Multi-strand copper wire
|
Multi-strand copper wire
|
Solid or multi-strand copper wire
|
|
Interference Protection
|
Low (no shielding)
|
Low (no shielding)
|
High (LSZH jacket for low smoke and no halogens)
|
|
Flexibility
|
High (ideal for flexible installations)
|
High (ideal for flexible installations)
|
Moderate (LSZH jacket is less flexible)
|
|
Common Applications
|
Data centers, office networks, patch cables
|
Residential networks, basic Ethernet
|
Data centers, public buildings, industrial environments
|
|
Flame Retardancy
|
No (standard jacket)
|
No (standard jacket)
|
Yes (meets LSZH standards, low smoke, halogen-free)
|
|
Environmental Use
|
Indoor use
|
Indoor use
|
Indoor use, high safety environments (schools, hospitals)
|
|
Price
|
Higher due to performance
|
Lower (cost-effective)
|
Higher due to LSZH material and fire safety
|
|
Property
|
Specification
|
|
Electrical Performance
|
Exceeds EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standards
|
|
Flame Retardancy
|
JIS C 3005 standard
|
|
Loop Resistance (at 20°C)
|
< 180Ω/km
|
|
Characteristic Impedance
|
100Ω / -7Ω + 13Ω
|
|
Electrostatic Capacity
|
< 56pF/m
|
|
Electrostatic Coupling
|
< 3.3pF/m
|
|
Bending Radius
|
When fixing: ≥ 52mm, When towing: ≥ 65mm
|
|
Tensile Strength
|
≤ 110N
|
|
Temperature Range (Installation)
|
0℃ ~ +50℃
|
|
Temperature Range (Operation)
|
-20℃ ~ +60℃
|
Properties
|
Characteristic
|
Specification
|
|
Allowable Tension
|
≤110 N
|
|
Allowable Bending Radius
|
In progress: ≥8 times of Cable Dia.
|
|
Post operation: ≥4 times of Cable Dia.
|
|
Operating Temperature
|
In progress: 0 to 50℃
|
|
In operation: -20 to 60℃
|
|
Conductor Resistance (DC)
|
≤9.38 Ω/100m
|
|
Resistor Unbalance (DC)
|
≤5%
|
|
Capacitance
|
≤5.6nF/100m
|
|
Capacitance unbalance
|
≤330pF/100m
|
|
NVP
|
68.5%
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
