Description

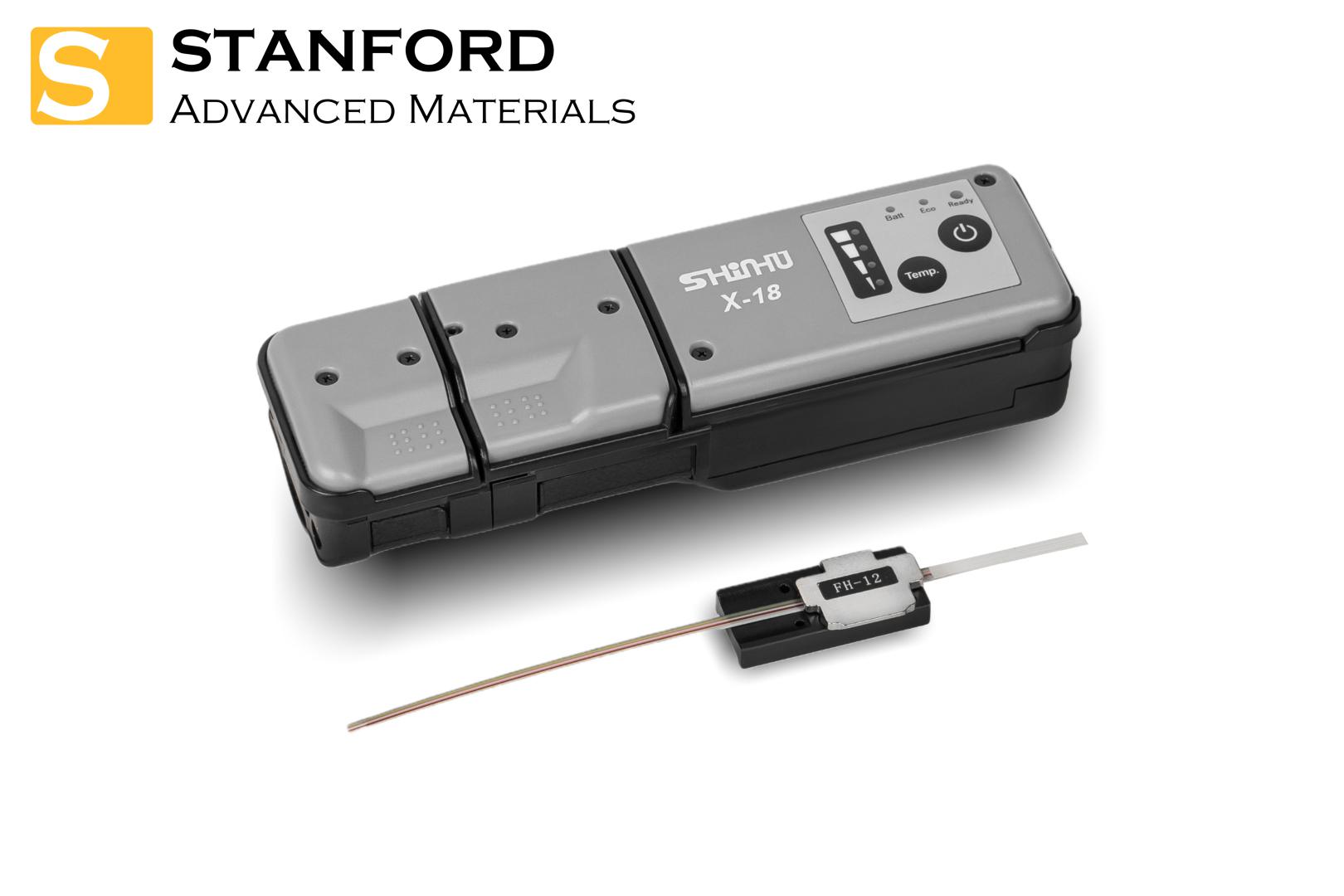

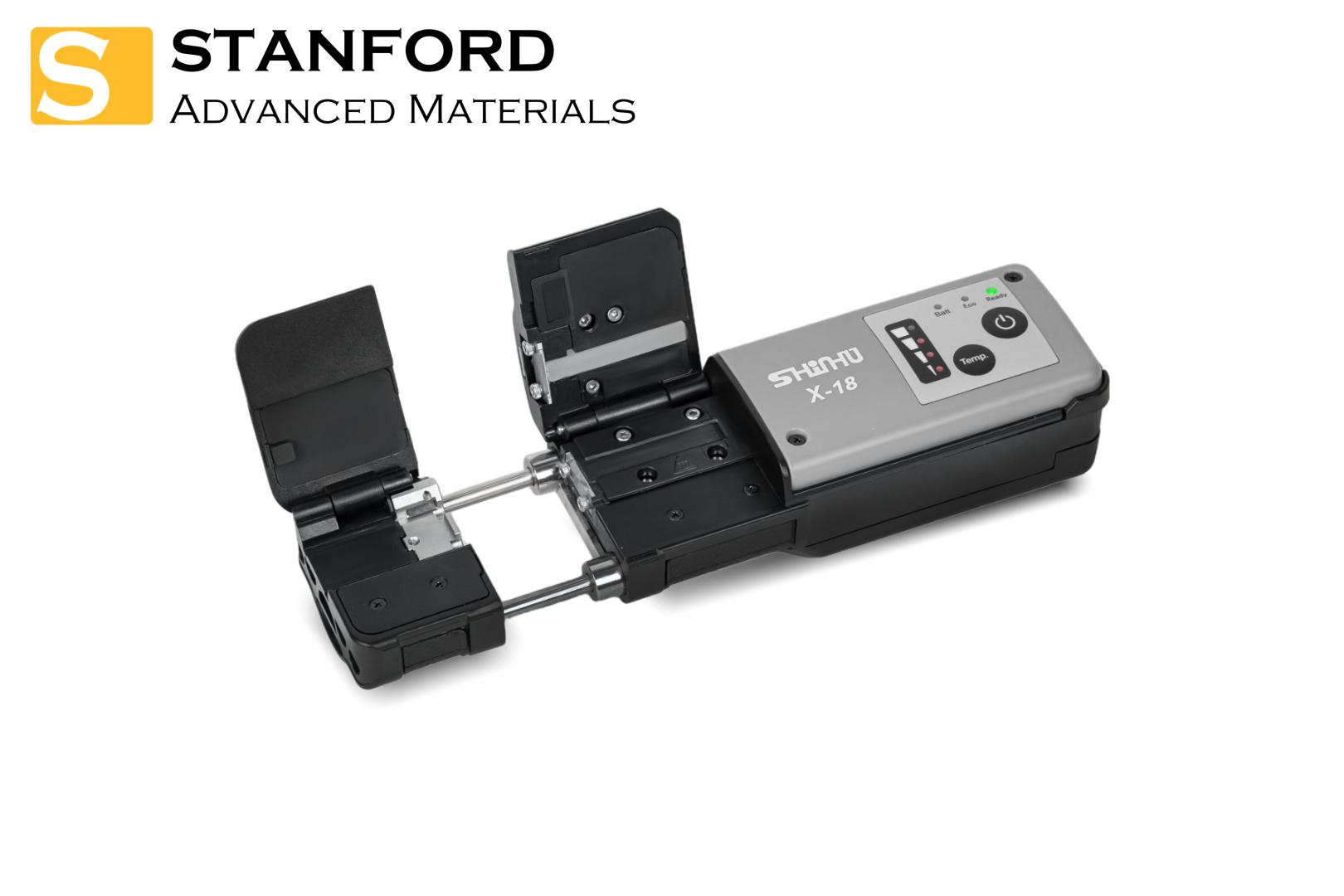

X-18 Thermal Stripper is a versatile and efficient tool for single-core and 2-12 core ribbon fiber splicing. It features four adjustable temperature settings and delivers quick stripping in just 4 seconds. Equipped with a field-replaceable blade for easy maintenance, it is powered by a 2000mAh rechargeable lithium battery, supporting up to 600 operations per charge. The ergonomic design ensures user comfort, while its compact size enhances portability. Built for durability, the X-18 is waterproof, dustproof, and shockproof, meeting IPX1 standards. Compliant with international certifications like CE and RoHS, the X-18 Thermal Stripper is a reliable choice for precision fiber stripping in demanding environments.
Application
Stripping fiber coatings for splicing in high-speed internet and fiber-to-the-home (FTTH) networks.
Preparing ribbon and single-core fibers for installation and repair in backbone and access networks.
Stripping fibers for splicing and connectorization in high-density data center environments.
Facilitating efficient fiber preparation during equipment upgrades or expansions.
|
Fiber Material
|
Quartz Glass
|
|
Coating Material
|
UV-Cured Resin
|
|
Coating Diameter
|
250~400μm
|
|
Cladding Diameter
|
125μm
|
|
Coating Stripping Length
|
Max. 30 mm
|
|
Compatible Fiber Type
|
Single-Core / 250 μm / 2~12-Core Ribbon Fiber
|
|
Fiber Clamp Type
|
FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900
|
|
Heating Mode
|
Normal Mode / Power-Saving Mode
|
|
Humidity Setting
|
Default Temperature: 80°C
Temperature Range: 60 / 80 / 100 / 120℃
|
|
Typical Heating Time
|
Normal Mode: 4~5s
Power-Saving Mode: 12s
|
|
Battery Capacity
|
Built-in 2000mAh Lithium Polymer Battery
Supports up to 600 stripping operations
for 12-core ribbon fiber on a single charge
|
|
Power Supply
|
External Adapter
Input: AC 100~240V (50/60Hz)
Output: DC 12V 1A
|
|
Operating Environment
|
Altitude: 0~5000 m
Relative Humidity: 0~95%
Temperature: 0~40°C
Wind Speed: Max. 15 m/s
|
|
Dimensions
|
155mm L x 50mm W x 40mm H
|
|
Weight
|
267 g (with battery)
|
*Sizes and performance values can be specified by customers.
