Description

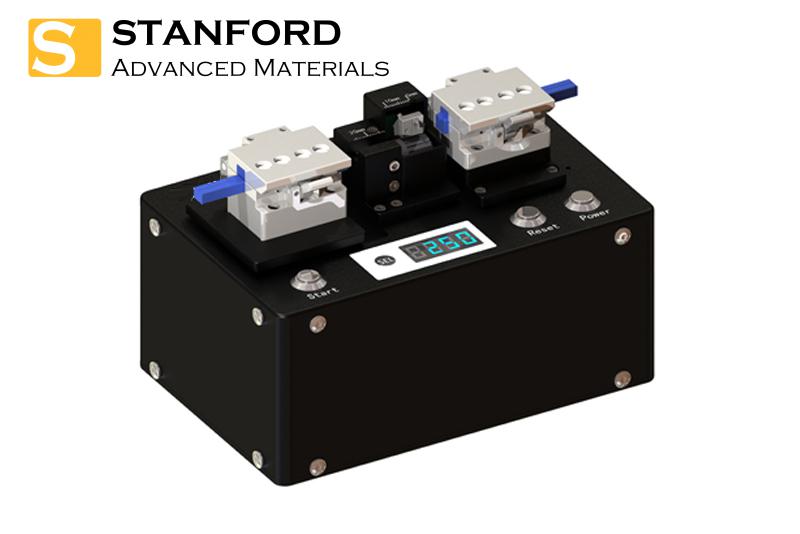

XFC-01 Large Core Fiber Cleaver is a compact, lightweight, and easy-to-use tool designed for high-precision optical fiber cutting. Built with durable materials, it offers a blade lifespan exceeding 48,000 cleaves and ensures stable cutting angles for reliable performance. Compatible with both single fibers and 2~12 core ribbon fibers, the XFC-01 features interchangeable clamps for single-core and ribbon fibers. Specifically engineered for splicing applications, it delivers exceptional precision and includes a built-in fiber collection box for added convenience, making it an ideal choice for professional fiber optic installations.
Application
XFC-01 Large Core Fiber Cleaver is a versatile tool designed for precision cutting of large-core optical fibers. Its robust design and portability make it suitable for various fields and applications, including:
Preparing large-core fibers for splicing and termination in optical communication networks.
Suitable for fiber-to-the-home (FTTH), metropolitan area networks (MAN), and backbone networks.
Cutting large-core fibers for high-speed data transmission and connectivity in data centers.
Supporting reliable and precise fiber terminations in dense network environments.
Used in industrial monitoring systems, such as fiber-optic sensors for strain, temperature, or pressure measurements.
Preparing fibers for use in automation and machine vision systems.
|
Cladding Diameter
|
200μm~300μm
|
|
Coating Diameter
|
300μm~400μm
|
|
Cutting Length
|
2-30mm
|
|
Cutting Angle
|
±0.5°
|
|
Cutting Method
|
Tension Applied and Blade Scribing
|
|
Tension Range
|
450~650g
|
|
Blade and Lifespan
|
Diamond blade with 10 positions, 2,000 uses per position
|
|
Power Supply
|
External adapter
Input: AC 100240V (50/60Hz)
Output: DC 1113.5V 3A
|
|
Operating Environment
|
Humidity 0~95%, Temperature 0~40°C
|
|
Storage Environment
|
Humidity 0~95%, Temperature -40~60°C
|
|
Machine Dimensions/Weight
|
168mm L x 111mm W x 116mm H/1.97kg
|
*Sizes and performance values can be specified by customers.
