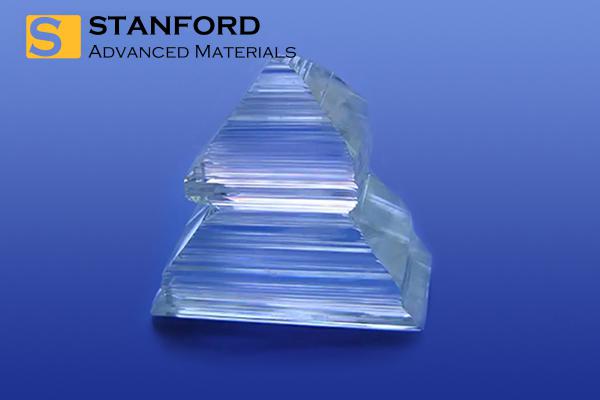

Yb: KGW Description
Yb:KGW stands for Ytterbium-Doped Potassium Gadolinium Tungstate. It is a type of laser crystal that is doped with ytterbium (Yb) ions. Yb:KGW crystals are used as gain media in solid-state lasers.
Yb:KGW crystals are valued for their ability to produce laser light in the near-infrared (NIR) and infrared (IR) regions of the electromagnetic spectrum. They are used in various applications, including Industrial and Materials Processing, Scientific and Research Applications, and Medical Applications.
Yb: KGW Specifications
|
Standard Dopant Concentration
|
5%
|
|
Orientation
|
[010]
|
|
Maximum Length
|
50mm
|
|
Length Tolerance
|
+1.0 / -0.0mm
|
|
Diameter Tolerance
|
+/-0.1mm
|
|
Parallelism
|
< 30″
|
|
Perpendicularity
|
< 15'
|
|
Surface Quality
|
20/10 (MIL-PRF-13830B)
|
|
Coating
|
AR-coated
|
Notes:
1. To inquire about or order a finished crystal, please provide the specifications as listed above. For most applications, we only need to know the following:
1) Nd-dopant concentration; 2) Sizes; 3) Surface quality; 4) Coating.
2. For special requests, please provide a detailed specification for evaluation and fabrication.
Yb: KGW Applications
1. Materials Processing:
· Cutting and Welding: Yb:KGW lasers are employed in industrial cutting and welding processes, particularly for metals, ceramics, and plastics, thanks to their high-power output and precise beam quality.
·Marking and Engraving: They are used for precision marking and engraving on various materials.
2. Scientific and Research Applications:
· Spectroscopy: Yb:KGW lasers are utilized in research laboratories for spectroscopic studies, enabling the analysis of chemical compounds, materials, and biological samples.
· Ultrafast Laser Systems: Yb:KGW crystals play a crucial role in ultrafast laser systems, facilitating experiments and investigations in fields such as physics, chemistry, and biology.
3. Medical and Biomedical Applications:
· Ophthalmology: Yb:KGW lasers are used in ophthalmic surgeries, including procedures for vision correction.
· Dermatology: They are employed for dermatological treatments such as skin resurfacing and tattoo removal.
4. Defense and Security:
· Target Illumination: Yb:KGW lasers are used in military applications for accurate target illumination.
· Countermeasures: They can be employed in countermeasure systems to disrupt or blind sensors and targeting devices.
5. Environmental Sensing:
In environmental monitoring, Yb:KGW lasers can be used in LIDAR systems for remote sensing, atmospheric studies, and terrain mapping.
