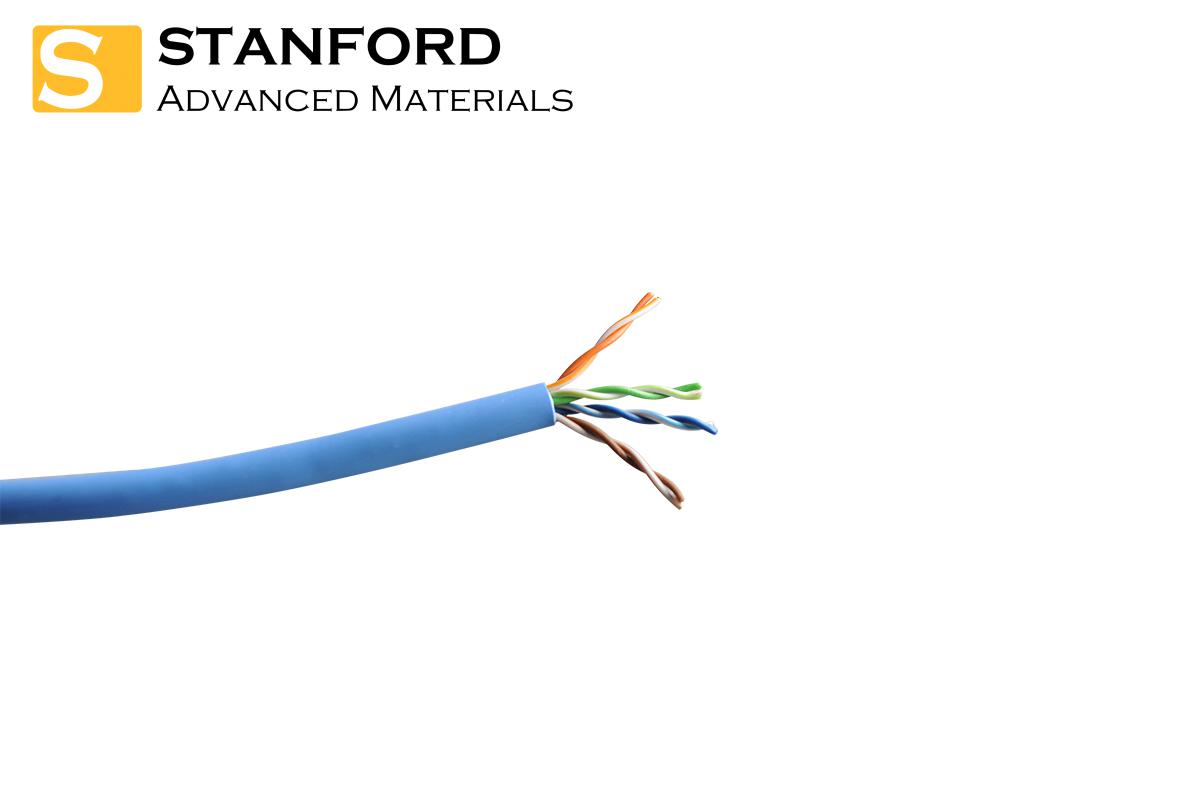

Low Smoke Zero Halogen (LSZH) Cat 5e UTP Cable Description
The LSZH Cat 5e UTP cable supports transmission speeds up to 1000 Mbps and bandwidth up to 150 MHz. It is designed for digital, voice, and video communication, making it suitable for both residential and commercial installations.
The cable uses a strong insulating layer with high adhesion (>40N/50mm) and a core line retreating rate over 58%, ensuring long service life and mechanical stability. Twisted pairs are 100% back-twisted, improving cable straightness and reducing crosstalk and attenuation.
The outer jacket is made of flame-retardant, halogen-free PE (FRPE). It meets strict requirements for pH value (>4.3), conductivity (<1 μS/mm), and transmittance (>90%), offering safety and low environmental impact.
Available in up to 15 colors with length markings, the cable is easy to identify during installation and maintenance.
Low Smoke Zero Halogen (LSZH) Cat 5e UTP Cable Applications
- Data centers – For structured cabling in server rooms and networking facilities
- Office networks – Supports high-speed internet, VoIP, and internal communication systems
- Residential use – For home networking, streaming, and connected devices
- Telecommunications – Suitable for broadband and phone systems
- Public buildings – Schools, hospitals, airports, and other facilities requiring strict fire safety
- Security systems – Cabling for IP cameras, alarms, and access control
- Industrial sites – Networking in environments with fire safety requirements
- Smart buildings – Integration with HVAC, lighting, and building automation systems
Low Smoke Zero Halogen (LSZH) Cat 5e UTP Cable Packaging
Cables are packaged in cartons or reels depending on length and quantity. Small items are shipped in cartons (typically 300 m per box), while larger orders can be supplied in wooden boxes, paper barrels, or customized packaging. Protective materials are used to ensure safe transport.
Packaging options: 300 m/Carton, Wooden box, Paper barrel, Customized
Manufacturing Process
- Wire drawing – Copper is processed to 24 AWG thickness
- Core stranding – Conductors are twisted into pairs to minimize crosstalk
- Insulation – Each pair is insulated with polyethylene (PE)
- LSZH jacket – A low-smoke, halogen-free outer layer is applied
- Color coding – Pairs and jacket are color-marked; lengths are printed for easy identification
- Quality control – Electrical, mechanical, and flame-retardant tests are carried out
- Cutting and packaging – Cables are cut to length, coiled, and packaged
Comparison Table
Different Types of Cables
|
Cable Type
|
Key Features
|
Typical Applications
|
|
LSZH Cat 5e UTP Cable
|
- Low Smoke Zero Halogen (safe in fire)
- Solid core
- Unshielded
|
- Indoor installations with safety/fire codes
- Data/voice transmission
|
|
Cat 5e Multi-strand UTP Cable
|
- Flexible (multi-strand)
- Unshielded
- Lower fire resistance than LSZH
|
- Patch cables
- Short-distance connections needing flexibility
|
|
Cat 6 Shielded Cable
|
- Higher bandwidth (up to 10 Gbps)
- Shielded for noise protection
|
- Industrial environments
- High-speed network backbone
|
|
Property
|
Specification
|
|
Electrical Performance
|
Exceeds EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standards
|
|
Flame Retardancy
|
JIS C 3005 standard
|
|
Loop Resistance (at 20°C)
|
< 180Ω/km
|
|
Characteristic Impedance
|
100Ω / -7Ω + 13Ω
|
|
Electrostatic Capacity
|
< 56pF/m
|
|
Electrostatic Coupling
|
< 3.3pF/m
|
|
Bending Radius
|
When fixing: ≥ 44mm, When towing: ≥ 55mm
|
|
Tensile Strength
|
≤ 110N
|
|
Temperature Range (Installation)
|
0℃ ~ +50℃
|
|
Temperature Range (Operation)
|
-20℃ ~ +60℃
|
Wire Structure
|
Items
|
Unit
|
Specification
|
|
Core Wire
|
Copper wire diameter
|
mm
|
0.505-0.520 (AWG)
|
|
Insulation diameter
|
mm
|
0.880-0.920
|
|
Twisting
|
Direction
|
-
|
Z
|
|
Pitch
|
mm
|
10.0-18.0
|
|
Assembly
|
Direction
|
-
|
S
|
|
Pitch
|
mm
|
90-130
|
|
Outer Jacket
|
Jacket material
|
-
|
FRPE
|
|
Outer diameter
|
mm
|
5.2-5.7
|
|
Jacket thickness
|
mm
|
0.45-0.55
|
|
Jacket color
|
-
|
14 colors available
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
