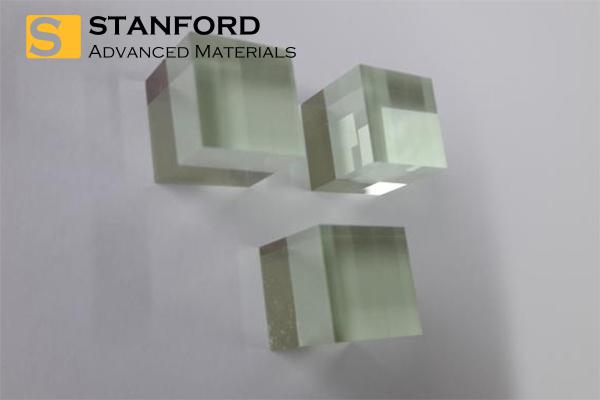

LuAG:Pr Scintillator Crystal Description
LuAG:Pr Scintillator Crystal (Lutetium Aluminum Garnet doped with Praseodymium) is a type of scintillator crystal used in radiation detection and imaging applications. Scintillators are materials that emit light (scintillation) when exposed to ionizing radiation, such as gamma rays or X-rays. This emitted light can be detected and used to create images or measure the intensity of the incoming radiation.
LuAG:Pr Scintillator Crystal Specifications
|
Density (g/cm3)
|
3.18
|
|
Crystal System
|
Cubic
|
|
Atomic Number (Effective)
|
16.5
|
|
Melting Point (K)
|
1691
|
|
Thermal Expansion Coefficient (C-1)
|
19.5 x 10-6
|
|
Cleavage Plane
|
<111>
|
|
Hardness (Mho)
|
4
|
|
Hygroscopic
|
No
|
|
Wavelength of Emission Max. (nm)
|
435
|
|
Refractive Index @ Emission Max
|
1.47
|
|
Primary Decay Time (ns)
|
940
|
|
Light Yield (photons/keV)
|
19
|
LuAG:Pr Scintillator Crystal Application
LuAG:Pr Scintillator Crystals are valued for their excellent scintillation properties, making them a choice material for various radiation detection and imaging systems in both medical and scientific research settings.
LuAG:Pr Scintillator Crystal Packaging
Our LuAG:Pr Scintillator Crystal is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
