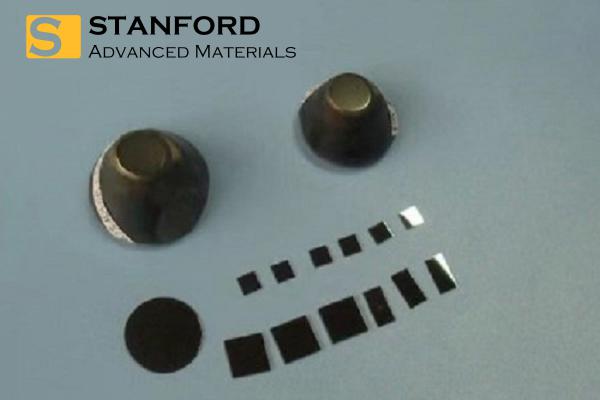

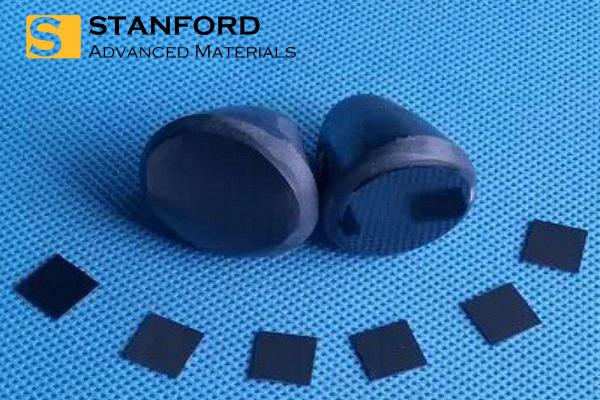

Neodymium (Nd) Doped SrTiO3 Single Crystal Description
Neodymium (Nd) Doped SrTiO3 Single Crystal is the material by adding small amounts of Nd into the SrTiO3 lattice. SrTiO3 is a perovskite structure material that has a high dielectric constant and low electric field. It’s used in high-voltage capacitors. Because of its high thermal stability and dielectric constant, Nd-doped SrTiO3 single crystal can be used in laser technology. Its non-linear optic property lets it be used in generating new wavelengths of light and optical parametric oscillators (OPO).
Neodymium (Nd) Doped SrTiO3 Single Crystal Specifications
|
Material
|
Nd, SrTiO3
|
|
Melting Point
|
2080℃
|
|
Thermal Expansion Coeff.
|
10.4*10-6 K-1
|
|
Hardness
|
6~6.5 Mho
|
|
Size
|
5 x 5mm, 10 x 5mm, 10 x 10mm, 15 x 15mm, 20 x 15mm, max φ30mm
Special sizes are available.
|
|
Thickness
|
0.5mm, 1mm
|
|
Orientation
|
<100>, <110>, <111>
|
|
Polishing
|
1/2 side(s)
|
Neodymium (Nd) Doped SrTiO3 Single Crystal Applications
Used in laser technology.
Used in optical frequency conversion and the generation of terahertz radiation.
Used in generating new wavelengths of light and optical parametric oscillators (OPO).
Neodymium (Nd) Doped SrTiO3 Single Crystal Packaging
Our Neodymium (Nd) Doped SrTiO3 Single Crystal is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
