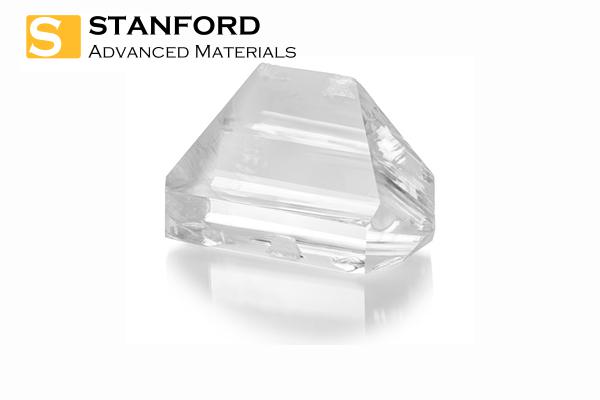

RTP (Rubidium Titanyl Phosphate – RbTiOPO4) is an isomorph of KTP crystal which is used in nonlinear and Electro-Optical applications. It possesses advantages of higher damage threshold, higher resistivity, higher repetition rate, no hygroscopic and no induce the piezo-electric effect.
Dimension Tolerance |
±0.1mm |
Flatness |
λ/8 @633nm |
Surface Quality Scratch/Dig |
10/5 |
Parallelism |
Better than 30 arc sec. |
Perpendicularity |
Better than 30 arc min |
Angle Tolerance |
△< 0.5°,△< 0.5° |
AR Coating |
AR coatings |
Clear Aperture |
>90% central area |
Transmitting Wavefront Distortion |
Less than λ/8 @ 633nm |
