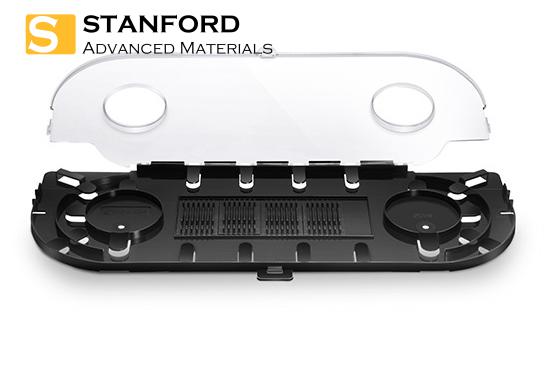

OE6370 Fiber Optical Splice Tray 24 Fusion

Description

Fiber Optical Splice Tray 24 Fusion is designed to house and protect up to 24 fusion splices within rack mount enclosures. It ensures proper fiber management by maintaining bend radius control, allowing clear labeling, and providing logical organization of fiber optic splices.

This splice tray is ideal for splicing OS1, OS2, OM1, OM2, and OM3/OM4 fibers to factory-terminated pigtails, offering significant time and labor cost savings during installation. It is the perfect solution for applications requiring high-density fiber splicing while ensuring the durability and performance of the fiber network.

Features

• Compatibility: Designed for use with Rack Mount Enclosures (excluding modular and blank enclosures).
• High Capacity: Accommodates up to 4 splice trays in 1U, enabling 96 fusion splices per unit.

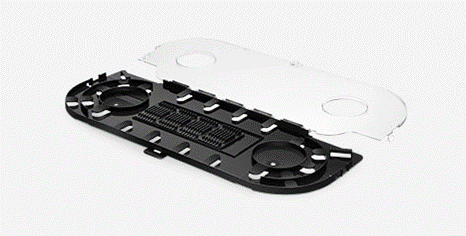

• Clear Cover: Transparent cover allows for easy viewing and inspection of tray contents without removal.

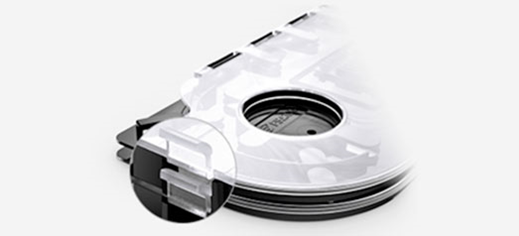

• Self-Stacking Design: Side latches enable secure stacking, eliminating the need for external splice tray holders.

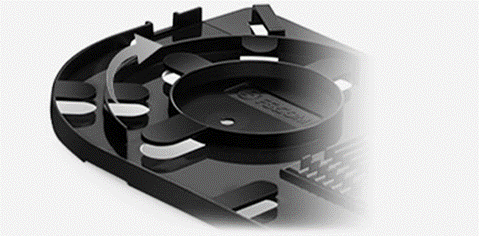

• Bend Radius Control: Integrated bend radius management protects fibers from sharp corners or edges, ensuring optimal performance.

Supports routing of 900µm buffered fibers and recommends using sufficient cable length, approximately 1.2m, to ensure a complete loop of individual fibers around the slack spools.

Application

• Telecommunications:

Used in central offices, data centers, and telecommunication networks for efficient splice management.

• Data Centers:

Essential for managing high-density fiber optic connections in server racks.

• FTTH (Fiber to the Home):

Helps organize splices in distribution enclosures for residential and commercial fiber deployment.

• Enterprise Networks:

Supports internal fiber optic cabling in office and enterprise buildings.

• Industrial Applications:

Ideal for rugged environments requiring reliable splice protection.
