Description

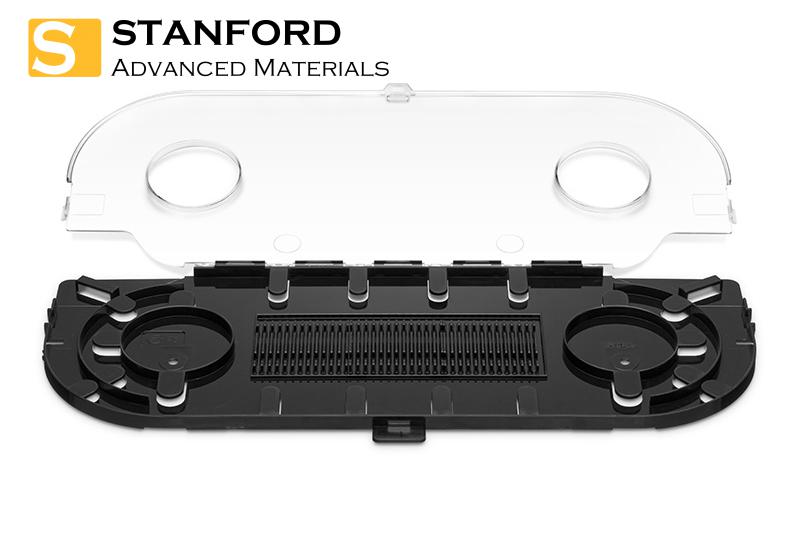

Fiber Optical Splice Tray 36 Fusion is designed for rack mount enclosures, offering secure housing and protection for up to 36 fusion splices. It ensures optimal fiber cable management with integral bend radius control, clear labeling, and logical organization of fiber splices.
This tray is ideal for splicing OS1, OS2, OM1, OM2, and OM3/OM4 fibers to factory-terminated pigtails, providing significant time and labor savings during installation. Compatible with enclosures available in multiple sizes (1U, 2U, 4U), it is a versatile solution for building backbones, data centers, and enterprises.
Features
- Compatibility: Works seamlessly with Rack Mount Enclosures (excluding modular and blank enclosures).
- High Capacity: Supports 4 splice trays per 1U, accommodating up to 144 fusion splices.
- Clear Cover: Transparent cover enables easy viewing and inspection of tray contents without removal.
- Self-Stacking Design: Side latches allow secure stacking, eliminating the need for external splice tray holders.
- Hinged Design: Facilitates easy operation and maintenance for efficient handling.
Supports routing of 900µm buffered fibers and recommends using sufficient cable length, approximately 1.2m, to ensure a complete loop of individual fibers around the slack spools.
|
|
|
|

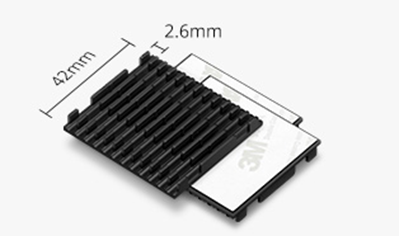

Pivoting Splice Holders: Provide seamless control of fibers during splicing and rework, ensuring uninterrupted operation.
|

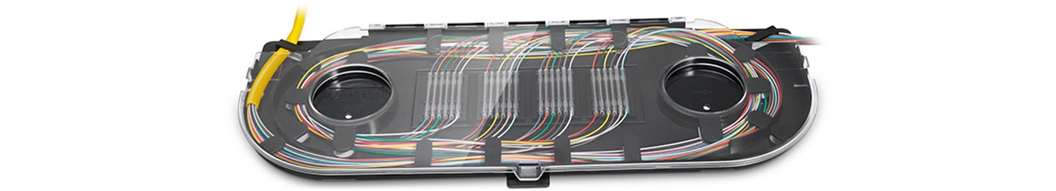

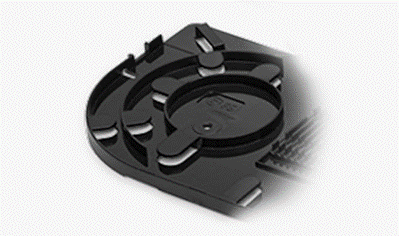

Integrated Slacking and Spooling: Facilitate buffered fiber routing and secure storage within protected pathways for enhanced organization.
|
|
|
|
|

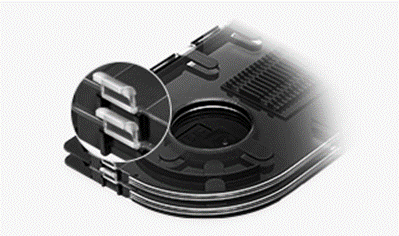

Self-Stacking Tray with Interlocking Hinges: Eliminates the need for external splice tray holders, offering a compact and efficient design.
|

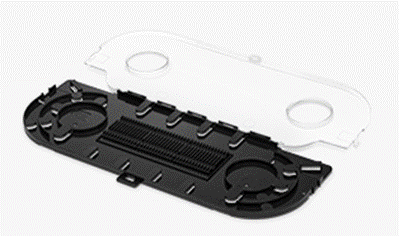

Clear Hinged Cover: Allows easy inspection and access to splices, simplifying moves, adds, and changes while maintaining protection.
|
Application
Used in central offices, data centers, and telecommunication networks for efficient splice management.
Essential for managing high-density fiber optic connections in server racks.
- FTTH (Fiber to the Home):
Helps organize splices in distribution enclosures for residential and commercial fiber deployment.
Supports internal fiber optic cabling in office and enterprise buildings.
Ideal for rugged environments requiring reliable splice protection.
