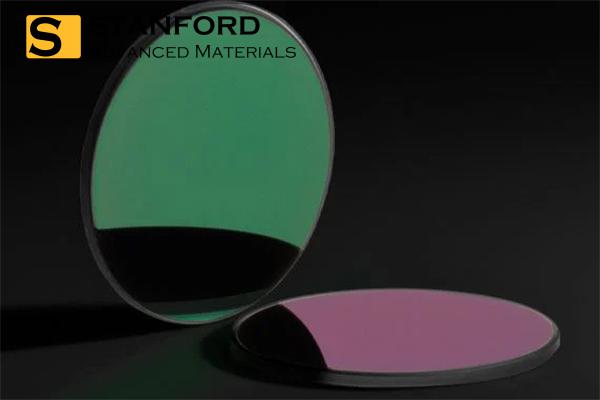

Infrared (IR) Bandpass Filter Description
The OP5312 is an 850nm infrared bandpass filter with 40nm FWHM bandwidth. It delivers >85% peak transmission and deep out-of-band blocking (OD≥3.0 from 300nm to 1100nm). The hard-coated dielectric construction ensures durability in harsh environments, making it suitable for FLIR, security cameras, environmental monitoring, and laser line separation applications.
Infrared (IR) Bandpass Filter Specifications
| Specification |
Value |
| Center Wavelength (CWL) |
850nm ± 3nm |
| Full Width at Half Maximum (FWHM) |
40nm ± 5nm |
| Peak Transmission |
>85% |
| Blocking (OD avg) |
≥3.0 (300nm - 1100nm) |
| Angle of Incidence |
0° |
| Coating Type |
Hard-coated dielectric |
| Substrate |
Optical glass, 1.0mm ±0.2mm |
| Surface Quality |
60-40 scratch-dig |
| Clear Aperture |
>90% of diameter |
| Operating Temperature |
-40°C to +85°C |
Infrared (IR) Bandpass Filter Application
Infrared (IR) Bandpass Filter is widely used in a variety of biotechnology, biomedical, and quantitative chemistry applications to selectively transmit a narrow range of wavelengths while blocking all others. Interference filters are used in a wide variety of instrumentation, including clinical chemistry, environmental laboratory, colorimetry, component and laser line separation, flame photometry, fluorescence and immunoassay applications.
Infrared (IR) Bandpass Filter Packaging
Our Infrared (IR) Bandpass Filter is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
