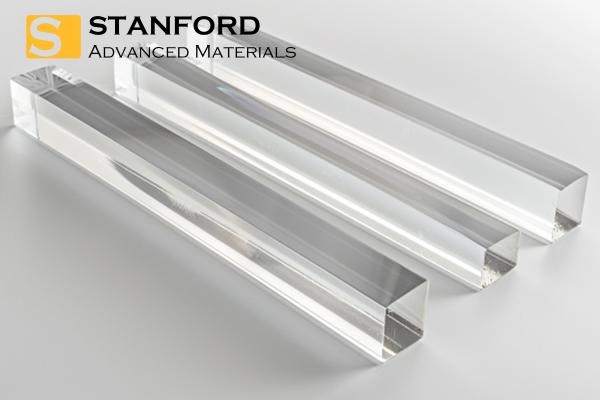

Periodically Poled KTP (PPKTP) Description
Periodically Poled KTP (PPKTP) is a new type of crystal made from KTP. KTP is a nonlinear optical crystal famous for its high nonlinear coefficient and used in second harmonic generation (SHG) and difference frequency generation (DFG). PPKTP can cover all applications for KTP within KTP’s transparency range. But PPKTP is specially processed to have a periodically patterned distribution of polarity inversion domains which lets PPKTP have a larger nonlinear coefficient than general KTP. Also, PPKTP doesn’t have the phase matching limitation for KTP.
Periodically Poled KTP (PPKTP) Specifications
|
Material
|
KTiOPO4
|
|
Transparency Wavelength
|
0.4~4 mm
|
|
Density
|
3.026g/cm3
|
|
Operation Temperature
|
Room temperature
|
|
Length
|
Up to 30mm
(Special size needs to be asked.)
|
|
Width
|
2mm
|
|
Thickness
|
1mm
|
|
Coating
|
Extra/Intra cavity, AR/AR, AR/HR
|
Periodically Poled KTP (PPKTP) Applications
Used in nonlinear opticals such as frequency converters, optical parametric oscillators (OPOs), second harmonic generation (SHG), and difference frequency generation (DFG).
Used in quantum key distribution and quantum computation.
Periodically Poled KTP (PPKTP) Packaging
Our Periodically Poled KTP (PPKTP) is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
