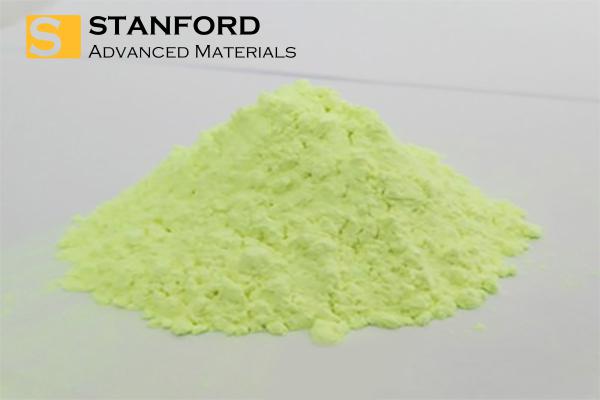

Lutetium Aluminum (LuAG) Phosphor Powder Description
LuAG has a stable crystal structure, and because of its high atomic number, Lu has a higher stopping power for high-energy rays. LuAG is an excellent scintillation matrix material.
Our LED phosphors can help LCD manufacturers produce displays with high color gamut, giving the screen unprecedented color realism and providing materials that match high-performance color filters. This LED phosphor material range offers outstanding stability and efficiency. This series of phosphors can be used in red LED packages or in combination with other red or yellow phosphors to package warm white or special light LEDs.
Lutetium Aluminum (LuAG) Phosphor Powder Specification
|
Model
|
Color
|
CIE 1931
|
Spectral Performance
|
|
x
|
y
|
Chip Excitation Wavelength (nm)
|
Peak Wavelength λp (nm)
|
|
LMY-3457-B
|
yellow-green
|
0.347
|
0.575
|
440-470
|
513
|
|
LMY-3657-B
|
yellow-green
|
0.361
|
0.573
|
440-470
|
516
|
|
LMY-3857-B
|
yellow-green
|
0.382
|
0.564
|
440-470
|
523
|
|
LMY-3957-B
|
yellow-green
|
0.394
|
0.565
|
440-470
|
524
|
|
LMY-4056-B
|
yellow-green
|
0.402
|
0.560
|
440-470
|
527
|
Lutetium Aluminum (LuAG) Phosphor Powder Applications
- Human lighting - lighting that meets the needs of human natural clocks
- General lighting - such as retail, residential and professional lighting
- Backlighting - for smartphones, monitors, televisions, etc.
- Internal and external applications in the automotive industry
Lutetium Aluminum (LuAG) Phosphor Powder Features:
High Light Output: LuAG Phosphor Powder boasts exceptional light output, ensuring efficient conversion of ionizing radiation into easily detectable light signals. This quality is vital for precision in scintillation detectors.
Exceptional Energy Resolution: With its superb energy resolution and rapid decay time, LuAG contributes to precise radiation measurements and imaging, setting new standards in scientific, medical, and industrial applications.
High Density: LuAG's impressive density provides superior stopping power for ionizing radiation, resulting in enhanced detection sensitivity and accuracy.
Thermal Stability: LuAG maintains its scintillation performance even at elevated temperatures, ensuring reliability in demanding applications.
Lutetium Aluminum (LuAG) Phosphor Powder Benefits:
Radiation Detection: LuAG Phosphor Powder is a cornerstone in scintillation detectors, used extensively in gamma-ray spectroscopy, positron emission tomography (PET), computed tomography (CT) scans, and radiation therapy.
Solid-State Lighting: LuAG serves as a phosphor material in solid-state lighting devices, producing high-quality white light for applications such as LED-based lighting and displays.
Medical Imaging: LuAG plays a pivotal role in medical imaging equipment, improving precision and image quality in diagnostic tools like gamma cameras and PET scanners.
Get a Quote
