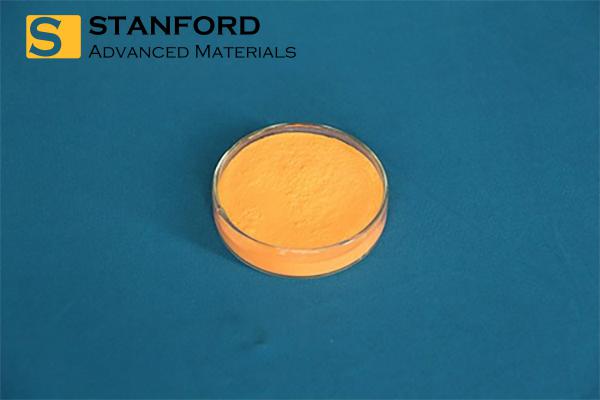

Red Nitride Phosphor Powder (YG610) Description
A phosphor, most generally, is a substance that exhibits the phenomenon of luminescence; it emits light when exposed to some type of radiant energy. Red Nitride Phosphor Powder (YG610) is characterized by chemical stability, thermostability, and high durability. It is non-poisonous, non-radioactive, and non-corrosive.
Stanford Optics is your one-stop platform to find LED phosphor for sale in a variety of forms, it has over two decades of experience in the manufacture and sale of high-quality Red Nitride Phosphor Powder (YG610).
Red Nitride Phosphor Powder (YG610) Specifications
|
Product Name
|
Red Nitride Phosphor Powder (YG610)
|
|
Emission Color
|
Red
|
|
Relative Intensity
|
100±2%
|
|
Peak Wavelength (nm)
|
610±1
|
|
CIE-X
|
0.610±0.002
|
|
CIE-Y
|
0.390±0.002
|
|
Density (g/cm3)
|
3.1
|
|
Particle Size (μm)
|
10±2.0
|
|
Chip Size (nm)
|
445-470
|
.png)
Red Nitride Phosphor Powder (YG610) Applications
Phosphor layers provide most of the light produced by fluorescent lamps and are also used to improve the balance of light produced by metal halide lamps. Various neon signs use phosphor layers to produce different colors of light. Electroluminescent displays found, for example, in aircraft instrument panels, use a phosphor layer to produce glare-free illumination or as numeric and graphic display devices. White LED lamps consist of a blue or ultra-violet emitter with a phosphor coating that emits at longer wavelengths, giving a full spectrum of visible light.
Paired with yellow phosphor powder, Red Nitride Phosphor Powder (YG610) can be used to produce LED light with a color temperature of 3000K. In general, Red Nitride Phosphor Powder (YG610) is applied to produce warm white LED light or replace orange silicate phosphor powder to achieve greater stability.
