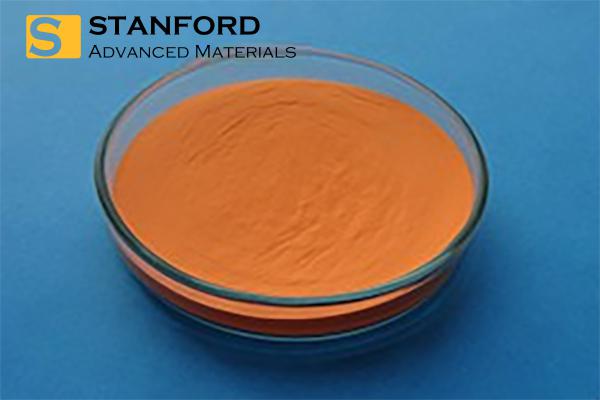

Nitride Phosphor Powder Description
Nitride Phosphor Powder is an alkaline earth metal silicon nitride phosphor activated by rare earth ions and has a strong M-N bonding force. The emission peak wavelength is adjustable from 610-670nm, with high luminous efficiency and excellent stability. It is mainly used in the packaging of high color rendering white LEDs. With this type of phosphor, the color rendering index of white LEDs can reach 95 or higher.
As a worldwide supplier of Nitride Phosphor, Stanford Optics enjoys over two decades of experience in the manufacture and sale of high-quality Nitride Phosphor at a very competitive price.
Nitride Phosphor Powder Specification
Nitride Phosphor’s emission peak wavelength is adjustable from 610-670nm, with high luminous efficiency and excellent stability. It is mainly used in the packaging of high-color rendering white LEDs. With this type of phosphor, the color rendering index of white LEDs can reach 95 or higher.
As a worldwide supplier of Nitride Phosphor, Stanford Optics enjoys over two decades of experience in the manufacture and sale of high-quality Nitride Phosphor at a very competitive price.
|
Type
|
Model
|
Color
|
Chromaticity Coordinates
CIE 1931
|
Spectral Performance
|
|
x
|
y
|
Chip Excitation Wavelength (nm)
|
Peak Wavelength λp (nm)
|
|
Nitride
|
SAM-R-6237
|
red
|
0.634
|
0.366
|
350-550
|
612
|
|
SAM-R-6336
|
light red
|
0.633
|
0.366
|
350-550
|
615
|
|
SAM-R-6534
|
red
|
0.653
|
0.340
|
350-550
|
625
|
|
SAM-R-6633
|
Pink
|
0.663
|
0.335
|
350-550
|
630
|
|
SAM-R-6831
|
deep red
|
0.680
|
0.319
|
350-550
|
645
|
Nitride Phosphor Powder Spectrum
Nitride Phosphor Powder Applications
-General Lighting
-LED retrofit lamps
-Architectural
-Retail display
-Commercial / industrial
-Entertainment
-Automotive interior lighting
-Display Backlighting
-TV and monitor
-Tablet PC and mobile display,etc.
