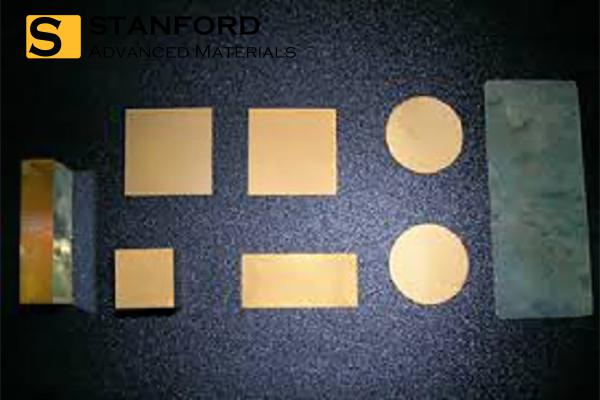

PMNT Single Crystal Substrate Description
The high-quality larger-size PMNT Single Crystal Substrate is grown by the improved Bridgman method. This single crystal has excellent piezoelectric properties, nonlinear optical properties, and pyroelectric properties, which can not only meet the needs of applications, but also become a new generation of High-performance piezoelectric transducers, nonlinear optical devices, and new materials for radio and television detection devices. It also provides a good research carrier for the majority of scientific researchers.
PMNT Single Crystal Substrate Specifications
|
Material
|
(PbMg0.33Nb0.67)1-x: (PbTiO3)x
|
|
CAS No.
|
12024-36-1
|
|
Method
|
Bridgman method
|
|
Density (g/cm3)
|
8.0-8.2
|
|
Crystal Type
|
Pseudo-cube
|
|
Lattice constant
|
a~4.024Å
|
|
Melting point (℃)
|
1264-1320
|
|
Hardness (Mohs)
|
3.5
|
|
Coefficient of thermal expansion (/K)
|
10.4×10-6
|
|
Piezoelectric coefficient
|
d33: >2000pC/N
|
|
Dielectric constant
|
4000-6000
|
|
Curie temperature
|
135-150
|
|
Appearance
|
Yellow transparent
|
|
Orientation
|
<100>、<001>、<111>±0.5º
|
|
Size
|
10×10, 10×5, 5×5, or customized
|
|
polishing
|
Single-sided/Double-sided
|
PMNT Single Crystal Substrate Applications
High-performance piezoelectric transducers, nonlinear optical devices, and new materials for radio and television detection devices.
PMNT Single Crystal Substrate Packaging
Our PMNT Single Crystal Substrate is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
