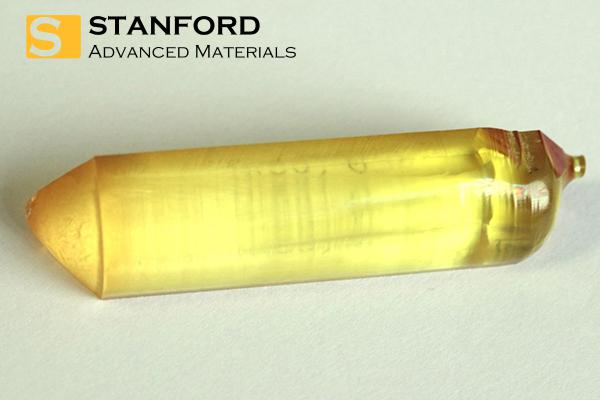

Strontium Lanthanum Gallate Single Crystal Description
Strontium Lanthanum Gallate Single Crystal has good perovskite structure superconductor lattice matching, and the stable structure makes it suitable for low dielectric constant microwave or high frequency applications.
Strontium Lanthanum Gallate Single Crystal Specifications
|
Formula:
|
SrLaGaO4
|
|
Crystal Growth
|
|
Growth Method:
|
Czochralski
|
|
Max Diameter:
|
Ø18-20 mm
|
|
Crystallographic Properties
|
|
Crystal Structure:
|
Tetragonal
|
|
a,b = 0.3843 nm
|
|
c = 1.268 nm
|
|
Color:
|
Colorless to Yellow
|
|
Physical Properties
|
|
Density:
|
6.389g cm-3
|
|
Melting Point:
|
1793K
|
|
Thermal Expansion (10-6K-1):
|
189 ll c, 10.1 lc
|
|
Dielectric Constant:
|
22
|
|
Loss Tangent (@ 77K, 10GHZ):
|
5.7 x 10
|
Strontium Lanthanum Gallate Single Crystal Applications
Suitable for low dielectric constant microwave or high frequency applications.
Strontium Lanthanum Gallate Single Crystal Packaging
Our Strontium Lanthanum Gallate Single Crystal is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
