MTP-LC Duplex Breakout Cable Description

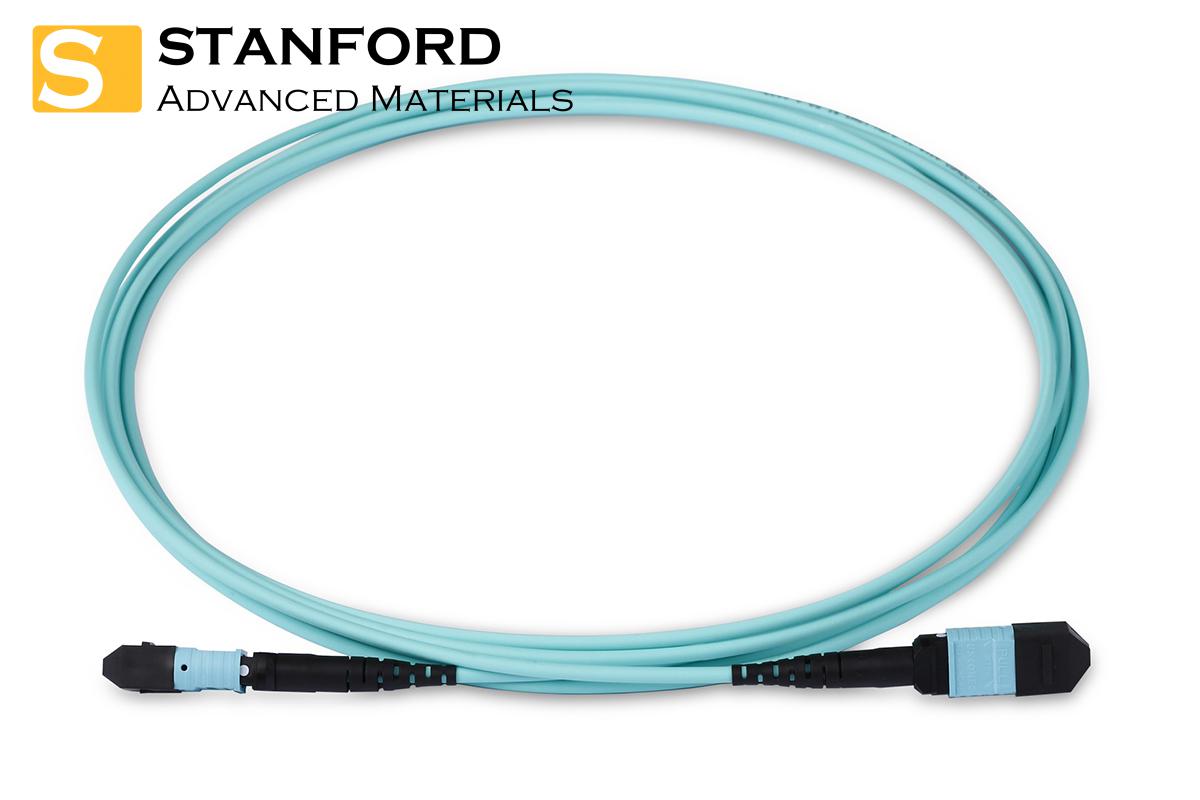

MTP-LC Duplex Breakout Cable, 12F, G657A2, LSZH-1, Type B, 3m is a pre-terminated fiber optic assembly designed for high-density data center environments and optical network applications. Featuring an MTP female connector on one end and 6 duplex LC connectors on the other, this breakout cable enables efficient connections between backbone trunk cables and active equipment.
Constructed with bend-insensitive G657A2 single-mode fiber, the cable ensures stable optical performance even in tight routing spaces. The LSZH-1 (Low Smoke Zero Halogen) outer jacket enhances safety in enclosed areas by reducing smoke and toxic emissions during fire.
Each cable is 100% factory-tested to guarantee low insertion loss, full compliance with IEC 61754-7, IEC 61754-20, IEC 61300-3-4, TIA/EIA-568-C.3, and supports structured cabling systems in line with ISO/IEC 11801 standards. The Type B polarity provides a straight-through signal path, ideal for parallel optics and duplex transmission systems.
MTP-LC Duplex Breakout Cable Applications
High-speed fiber patching for 40G and 100G equipment
High-density cabling and network consolidation
Support for parallel optics and duplex transmission
Backbone cabling and cross-connects
Fiber optic network upgrades and expansions
Structured cabling for high-bandwidth applications
Server farms and storage area networks (SAN)
Reliable connectivity for cloud infrastructure
Scalable fiber optic interconnect solutions
High-performance data transmission for live and studio environments
MTP-LC Duplex Breakout Cable Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: Carton, Wooden box, Paper barrel, Iron barrel, or Customized.
Product Features
- Complies with TIA/EIA-568-C.3 and ISO/IEC 11801 standards
- 100% factory-terminated and tested before shipment
- Flexible cable polarity options are available
- Each cable is labeled for production tracking and quality traceability
|
Fiber Count
|
12 Fibers
|
|
Sheath Material
|
LSZH-1
|
|
Polarity Configuration
|
Type B
|
|
Standards
|
IEC 61754-7
IEC 61754-20
IEC 61300-3-4
TIA/EIA-568-C.3
ISO/IEC 11801
|
|
Fiber Performance
|
|
Fiber Type
|
G.657.A2
|
|
Core/Cladding Diameter (μm)
|
9/125
|
|
Effective Modal Bandwidth (MHz·km)
|
N/A
|
|
Operating Wavelength (nm)
|
1310 / 1550
|
|
Maximum Attenuation (dB/km)
|
0.35 / 0.21
|
|
Connector Performance
|
|
Loss Grade
|
MTP Multimode High Precision
|
|
IL (Insertion Loss, dB)
|
≤ 0.25
|
|
High-Low Temperature Cycle ΔIL (dB)
|
≤ 0.20
|
|
RL (Return Loss, dB)
|
≥ 28
|
|
High-Low Temperature Cycle ΔRL (dB)
|
≤ 5
|
|
Mechanical Properties
|
|
Number of Optical Fibers
|
12 fibers
|
|
Min. Static Bending Radius
|
10D mm
|
|
Min. Dynamic Bending Radius
|
20D mm
|
|
Operating Temperature
|
-20~+60 °C
|
|
Installation Temperature
|
-5~+50 °C
|
|
Storage and Transport Temperature
|
-25~+75 °C
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
