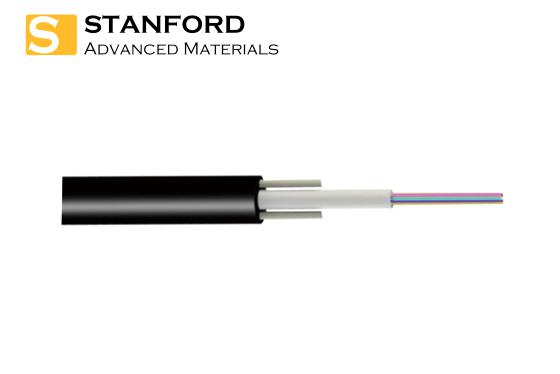

Description
Central Tube Type Non-armored Optical Cable is a high-performance solution designed for outdoor applications requiring reliable water resistance, mechanical stability, and lightweight construction. Colored optical fibers are securely housed in a loose tube made of high-modulus, hydrolysis-resistant material, which is filled with thixotropic water-blocking gel for superior fiber protection.
To enhance water resistance, the loose tube is externally coated with water-blocking material, ensuring robust longitudinal water-blocking performance. Two parallel steel wires are positioned on both sides to provide tensile strength and structural stability. The cable is finished with a polyethylene sheath, offering excellent protection against environmental factors.
Feature

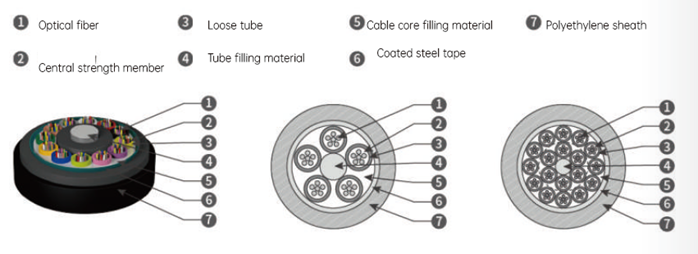

Cross-section Diagram
-
Hydrolysis-Resistant Tube: High-modulus material withstands pressure and chemical exposure
-
Dual-Layer Water Blocking: Internal gel + external coating prevent moisture ingress
-
Steel Wire Reinforcement: Parallel wires provide 1500N tensile strength
-
UV-Resistant Sheath: PE layer protects against solar radiation degradation
-
Compact Design: Optimized for duct pulling and long-distance deployments
Application Scenario
GYXY Central Tube Type Non-armored Optical Cable is an excellent choice for duct installations, humid environments, and suburban or rural communication networks. Its lightweight, water-resistant design makes it suitable for a wide range of outdoor applications with moderate environmental demands.
-
Duct Installations: Compact size facilitates efficient conduit deployments
-
High-Humidity Zones: Dual water-blocking ensures reliability in wetlands/coastal areas
-
Suburban Networks: Cost-effective solution for residential backbone lines
-
Temporary Deployments: Lightweight construction enables rapid field installations
-
Industrial Utility Links: Steel reinforcement resists moderate mechanical stress
-
Renewable Energy Farms: UV-resistant sheath suits solar/wind installations
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Cable Weight
Kg/km
|
Tensile Strength
Long/short term
N
|
Crush Force
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYXY-2~12Xn
|
2~12
|
77
|
600/1500
|
300/1000
|
10D/20D
|
|
GYXY-14~24Xn
|
14~24
|
83
|
|
GYXY-2~12Xn
|
2~12
|
104
|
1000/3000
|
|
GYXY-14~24Xn
|
14~24
|
109
|
*Sizes and performance values can be specified by customers.
