Description

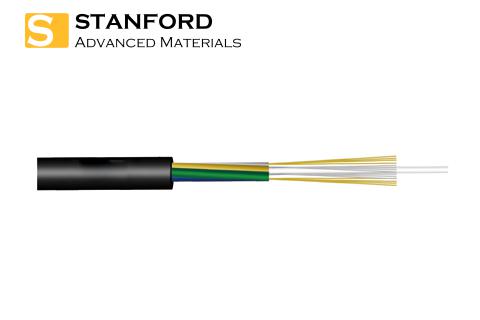

CB6332 GYFTY is a non-armored, loose-tube stranded optical cable for outdoor communication networks. Optical fibers are housed in gel-filled loose tubes, which are stranded with filler elements around a non-metallic FRP central strength member. A polyethylene outer jacket completes the cable structure.
The FRP member provides mechanical reinforcement, while filling compounds in the tubes and cable core help limit longitudinal water penetration. GYFTY is intended for duct and aerial installations. Select the fiber count, fiber type, and mechanical rating to suit the route, pulling conditions, and support method.
Related products: GYFTZY Flame-Retardant Non-Armored Optical Cable and GYFTZA53 Armored Flame-Retardant Optical Cable.
Cross-section Diagram
Features
- Non-Metallic FRP Strength Member: Provides central mechanical reinforcement without a metallic strength member.
- Gel-Filled Water Blocking: Filling compounds help limit water penetration along the loose tubes and cable core.
- Stranded Loose-Tube Construction: Tubes and filler elements form a compact cable core around the FRP member.
- Polyethylene Outer Jacket: Provides an outer protective covering for outdoor cable routing.
- Configuration Options: Fiber count, tube arrangement, cable weight, and tensile rating depend on the selected configuration.
Applications
- Outdoor Duct Networks: Distribution and access routes where the cable is installed within a protective duct.
- Aerial Routes: Installations with a support method and mechanical loading suitable for the selected cable configuration.
- Campus and Rural Networks: Outdoor communication links between buildings or network distribution points.
- Industrial and Utility Communications: Routes requiring a non-metallic cable strength member, subject to site-specific installation requirements.
For aerial installation, confirm the support arrangement, span, and allowable loading. For direct burial, prolonged immersion, or routes with fire-performance requirements, confirm that the selected cable is specifically suitable for those conditions.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.0 dB/km
|
≤3.3 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Loose Tubes
|
Filling Ropes
|
Cable Weight
Kg/km
|
Tensile Strength
Long/short term
N
|
Crush Force
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYFTY-2~6Xn
|
2~6
|
1
|
5
|
86
|
400/1000
|
300/1000
|
10D/20D
|
|
GYFTY-8~12Xn
|
8~12
|
2
|
4
|
86
|
|
GYFTY-14~18Xn
|
14~18
|
3
|
3
|
86
|
|
GYFTY-20~24Xn
|
20~24
|
4
|
2
|
86
|
|
GYFTY-26~30Xn
|
26~30
|
5
|
1
|
86
|
|
GYFTY-32~36Xn
|
32~36
|
6
|
0
|
86
|
|
GYFTY-38~48Xn
|
38~48
|
4
|
2
|
109
|
600/1500
|
|
GYFTY-50~60Xn
|
50~60
|
5
|
1
|
109
|
|
GYFTY-62~72Xn
|
50~60
|
6
|
0
|
109
|
|
GYFTY-2~6Xn
|
2~6
|
1
|
6
|
98
|
|
GYFTY-8~12Xn
|
8~12
|
2
|
5
|
98
|
|
GYFTY-14~18Xn
|
14~18
|
3
|
4
|
98
|
|
GYFTY-20~24Xn
|
20~24
|
4
|
3
|
98
|
|
GYFTY-26~30Xn
|
26~30
|
5
|
2
|
98
|
|
GYFTY-32~36Xn
|
32~36
|
6
|
1
|
98
|
|
GYFTY-38~42Xn
|
38~42
|
7
|
0
|
98
|
|
GYFTY-44~48Xn
|
44~48
|
4
|
3
|
115
|
1000/3000
|
|
GYFTY-50~60Xn
|
50~60
|
5
|
2
|
115
|
|
GYFTY-62~72Xn
|
62~72
|
6
|
1
|
115
|
|
GYFTY-2~6Xn
|
2~6
|
1
|
7
|
119
|
|
GYFTY-8~12Xn
|
8~12
|
2
|
6
|
119
|
|
GYFTY-14~18Xn
|
14~18
|
3
|
5
|
119
|
|
GYFTY-20~24Xn
|
20~24
|
4
|
4
|
119
|
|
GYFTY-26~30Xn
|
26~30
|
5
|
3
|
119
|
|
GYFTY-32~36Xn
|
32~36
|
6
|
2
|
119
|
|
GYFTY-38~42Xn
|
38~42
|
7
|
1
|
119
|
|
GYFTY-44~48Xn
|
44~48
|
8
|
0
|
119
|
|
GYFTY-50~60Xn
|
50~60
|
5
|
3
|
125
|
|
GYFTY-62~72Xn
|
62~72
|
6
|
2
|
125
|
|
GYFTY-74~84Xn
|
74~84
|
7
|
1
|
125
|
|
GYFTY-86~96Xn
|
86~96
|
8
|
0
|
125
|
|
GYFTY-98~108Xn
|
98~108
|
9
|
1
|
149
|
|
GYFTY-110~120Xn
|
110~120
|
10
|
0
|
149
|
|
GYFTY-122~132Xn
|
122~132
|
11
|
1
|
179
|
|
GYFTY-134~144Xn
|
134~144
|
12
|
0
|
179
|
*Sizes and performance values can be specified by customers.
