Description

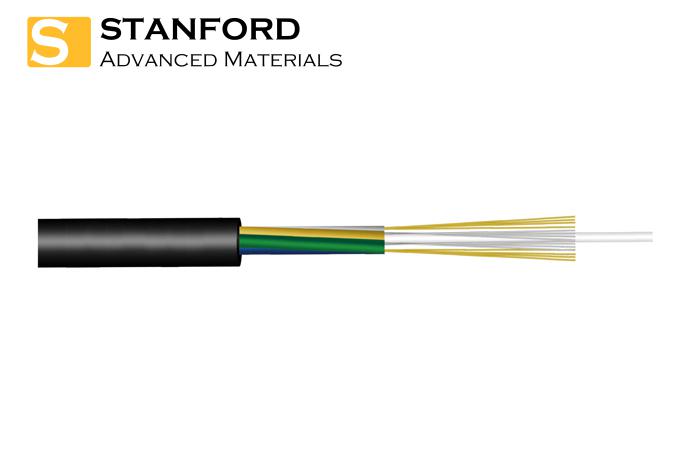

The GYFTZY optical cable is a non-armored, loose-tube stranded optical cable with a non-metallic FRP central strength member and a flame-retardant outer sheath. Optical fibers are housed in gel-filled loose tubes, which are stranded around the central strength member together with filler elements.
The FRP member provides mechanical support, while the filling compounds help limit water penetration within the cable. GYFTZY is offered for duct and aerial installations. The required fiber count, fiber type, mechanical rating, and flame-retardant classification should be confirmed for the selected configuration before ordering.
Related products: GYFTY Non-Armored Optical Cable and GYFTZA53 Armored Flame-Retardant Optical Cable.
Feature

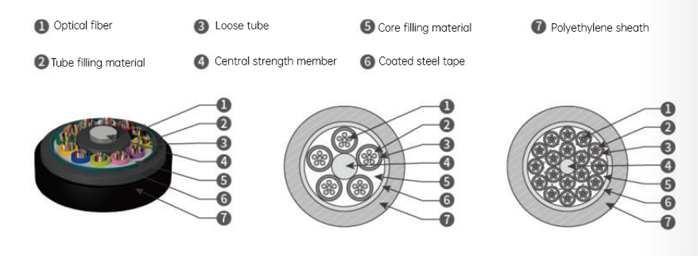

Cross-section Diagram
-
Loose-Tube Construction: Optical fibers are housed in loose tubes to help accommodate mechanical and thermal movement.
-
Gel-Filled Water Blocking: Filling compounds help limit longitudinal water penetration within the tubes and cable core.
-
Non-Metallic FRP Strength Member: Provides central mechanical reinforcement without a metallic strength member.
-
Flame-Retardant Outer Sheath: Confirm the applicable test standard and classification for the selected cable configuration.
-
Configuration Options: Fiber count, tube arrangement, and tensile rating vary by configuration; refer to the confirmed specification before ordering.
Application Scenario
GYFTZY can be considered for outdoor distribution and access networks requiring a non-metallic strength member and a flame-retardant cable sheath.
-
Duct Installation: Confirm duct dimensions, pulling tension, and minimum bend radius against the selected cable specification.
-
Aerial Installation: Confirm the support method, span, and mechanical loading before selecting the cable.
-
Sites Requiring Non-Metallic Construction: Confirm that the complete cable construction meets the project's requirements.
-
Routes with Fire-Performance Requirements: Select the cable against the required flame-retardant classification and supporting test documentation. Tunnel or indoor use requires a separate check of the applicable installation requirements.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.3 dB/km
|
≤3.5 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.2 dB/km
|
≤1.2 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥500 MHz·km
|
≥500 MHz·km
|
| Numerical Aperture (NA) |
|
-
|
0.200 ± 0.015
|
0.275 ± 0.015
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Loose Tubes
|
Filling Ropes
|
Cable Weight
Kg/km
|
Tensile strength
Long/short term
N
|
Crush
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYFTZY-2~6Xn
|
2~6
|
1
|
5
|
123
|
400/1000
|
300/1000
|
10D/20D
|
|
GYFTZY-8~12Xn
|
8~12
|
2
|
4
|
123
|
|
GYFTZY-14~18Xn
|
14~18
|
3
|
3
|
123
|
|
GYFTZY-20~24Xn
|
20~24
|
4
|
2
|
123
|
|
GYFTZY-26~30Xn
|
26~30
|
5
|
1
|
123
|
|
GYFTZY-32~36Xn
|
32~36
|
6
|
0
|
123
|
|
GYFTZY-2~6Xn
|
2~6
|
1
|
6
|
131
|
600/1500
|
|
GYFTZY-8~12Xn
|
8~12
|
2
|
5
|
131
|
|
GYFTZY-14~18Xn
|
14~18
|
3
|
4
|
131
|
|
GYFTZY-20~24Xn
|
20~24
|
4
|
3
|
131
|
|
GYFTZY-26~30Xn
|
26~30
|
5
|
2
|
131
|
|
GYFTZY-32~36Xn
|
32~36
|
6
|
1
|
131
|
|
GYFTZY-38~42Xn
|
38~42
|
7
|
0
|
131
|
|
GYFTZY-44~48Xn
|
44~48
|
4
|
2
|
137
|
|
GYFTZY-50~60Xn
|
50~60
|
5
|
1
|
137
|
|
GYFTZY-62~72Xn
|
62~72
|
6
|
0
|
137
|
|
GYFTZY-2~6Xn
|
2~6
|
1
|
7
|
155
|
1000/3000
|
|
GYFTZY-8~12Xn
|
8~12
|
2
|
6
|
155
|
|
GYFTZY-14~18Xn
|
14~18
|
3
|
5
|
155
|
|
GYFTZY-20~24Xn
|
20~24
|
4
|
4
|
155
|
|
GYFTZY-26~30Xn
|
26~30
|
5
|
3
|
155
|
|
GYFTZY-32~36Xn
|
32~36
|
6
|
2
|
155
|
|
GYFTZY-38~42Xn
|
38~42
|
7
|
1
|
155
|
|
GYFTZY-44~48Xn
|
44~48
|
8
|
0
|
155
|
|
GYFTZY-50~60Xn
|
50~60
|
5
|
3
|
162
|
|
GYFTZY-62~72Xn
|
62~72
|
6
|
2
|
162
|
|
GYFTZY-74~84Xn
|
74~84
|
7
|
1
|
162
|
|
GYFTZY-86~96Xn
|
86~96
|
8
|
0
|
162
|
|
GYFTZY-98~108Xn
|
98~108
|
9
|
1
|
192
|
|
GYFTZY-110~120Xn
|
110~120
|
10
|
0
|
192
|
|
GYFTZY-122~132Xn
|
122~132
|
11
|
1
|
228
|
|
GYFTZY-134~144Xn
|
134~144
|
12
|
0
|
228
|
*Sizes and performance values can be specified by customers.
