Description

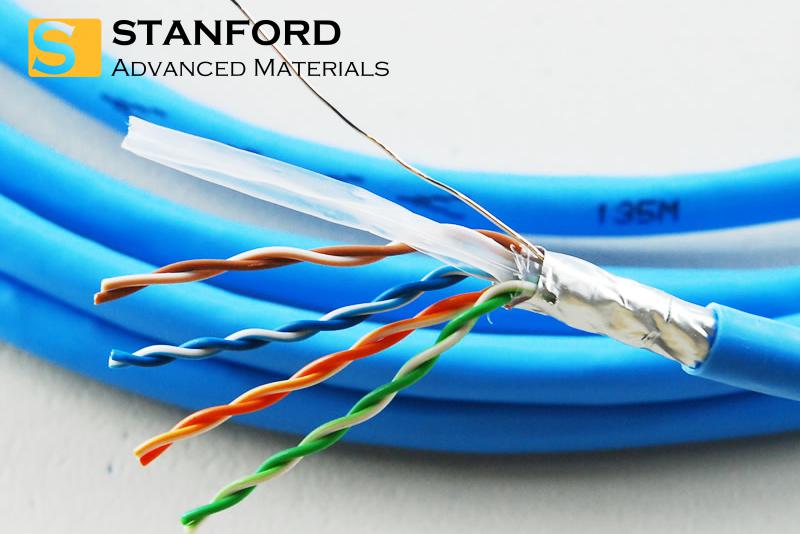

Cat6 Shielded Cables are high-quality networking cables designed to support 10 Gbps data transmission and a bandwidth of 250 MHz. Unlike unshielded cables, these cables are equipped with additional shielding around the twisted pairs to protect against electromagnetic interference (EMI) and crosstalk, ensuring reliable signal integrity in environments with high interference, such as industrial settings or data centers.

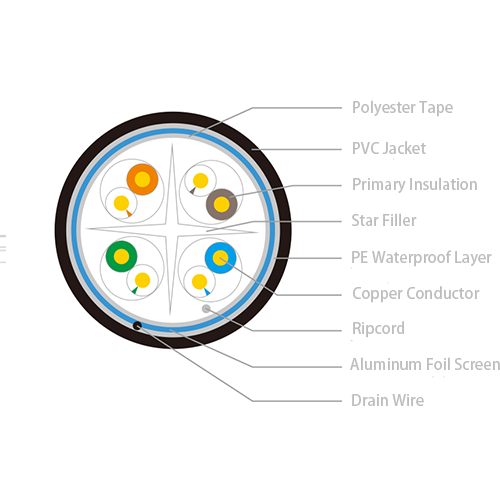

Cable Cross-Section Diagram
Applications
- Data Centers
- Ethernet Networks
- VoIP (Voice over IP)
- High-Speed Internet
- Industrial Environments
- Telecommunications
- Security Systems
- Building Automation Systems
Packaging
Our products are packaged in customized cartons of various sizes based on the material dimensions. Small items are securely packed in PP boxes, while larger items are placed in custom wooden crates. We ensure strict adherence to packaging customization and the use of appropriate cushioning materials to provide optimal protection during transportation.
Packaging: 300 m/Carton, Wooden box, Paper barrel, or customized.
Manufacturing Process
- Wire Drawing: Copper is drawn to the desired thickness (typically 23 AWG or 24 AWG).
- Core Stranding: Copper wires are twisted into pairs, then twisted together to form the cable core.
- Insulation: Each twisted pair is coated with insulating material (usually PE or PP).
- Shielding: The pairs are shielded with foil (FTP), braid (STP), or a combination (S/FTP) for protection against electromagnetic interference (EMI).
- Cable Assembly: Shielded pairs are grouped and twisted together, sometimes with plastic spacers for structure.
- Outer Jacket Extrusion: The cable is covered with a protective outer jacket, typically PVC or LSZH.
- Grounding (if applicable): Shielding is grounded to redirect interference effectively.
- Testing and Quality Control: Cables undergo performance, mechanical, and fire safety testing to ensure they meet Cat 6 standards.
- Cutting and Packaging: The cable is cut to specified lengths, coiled, and packaged for shipment.
Comparison Table
Different Types of Cables
|
Feature
|
Cat 6 Multi-strand UTP Cable
|
Cat 5e Multi-strand UTP Cable
|
Cat 6 Shielded Cable
|
|
Transmission Rate
|
Up to 10 Gbps
|
Up to 1 Gbps
|
Up to 10 Gbps
|
|
Bandwidth
|
250 MHz
|
100 MHz
|
250 MHz
|
|
Construction
|
Multi-strand copper wire
|
Multi-strand copper wire
|
Shielded (Foil/Braided) + Twisted Pairs
|
|
Maximum Distance
for 10 Gbps
|
Up to 55 meters
|
Not suitable for 10 Gbps
|
Up to 55 meters
|
|
Interference Protection
|
Low (no shielding)
|
Low (no shielding)
|
High (shielding prevents EMI)
|
|
Flexibility
|
High
(multi-strand wire)
|
High
(multi-strand wire)
|
Moderate
(shielding makes it less flexible)
|
|
Common Applications
|
Data centers,
office networks,
patch cables
|
Residential networks,
basic Ethernet connections
|
Data centers,
industrial networks,
high-traffic areas
|
|
Price
|
Higher
(due to performance)
|
Lower
(cost-effective)
|
Higher
(due to shielding and protection)
|
|
Items
|
Description
|
|
Conductor Material
|
Electric Copper Wire
|
|
Conductor Dia.
|
0.55 mm ≈23AWG
|
|
Insulation Materials
|
PE
|
|
Insulation Colors
|
1
|
2
|
3
|
4
|
|
White/Blue
|
White/Orange
|
White/Green
|
White/Brown
|
|
Blue
|
Orange
|
Green
|
Brown
|
|
Insulation Overall Dia.
|
≈1.0 mm
|
|
Cross Material
|
0.6/4.7 mm
|
|
Holding Tape Material
|
PE
|
|
Ground Wire Material
|
Tin-plated Copper Wire
|
|
Ground Wire Dia.
|
0.5 mm
|
|
Shielding TAPE Material
|
Soft Aluminum Foil and polyester film
|
|
Outer Jacket Material
|
PVC
|
|
Outer Jacket Color
|
5 colors
|
|
Outer Jacket Thickness
|
0.5 mm
|
|
Overall Completed Diameter
|
7.0 mm
|
|
Approximate Weight
|
50 kg/km
|
Properties
|
Characteristic
|
Specification
|
|
Allowable Tension
|
≤110 N
|
|
Allowable Bending Radius
|
In progress: ≥8 times of Cable Dia.
|
|
Post operation: ≥4 times of Cable Dia.
|
|
Operating Temperature
|
In progress: 0 to 50℃
|
|
In operation: -20 to 60℃
|
|
Conductor Resistance (DC)
|
≤9.38 Ω/100m
|
|
Resistor Unbalance (DC)
|
≤5%
|
|
Capacitance
|
≤5.6nF/100m
|
|
Capacitance unbalance
|
≤330pF/100m
|
|
NVP
|
68.5%
|
*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.
