Description

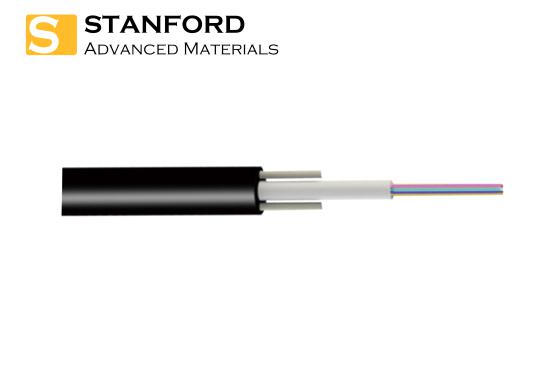

Central Bundle Tube Type Non-metallic Non-armored Optical Cable exhibits good mechanical performance and temperature characteristics. The colored optical fibers are encased in loose tubes made of high-modulus, hydrolysis-resistant material, filled with thixotropic water-blocking gel for superior moisture protection. To ensure full longitudinal water resistance, water-blocking material is applied around the loose tubes. Two parallel glass fiber-reinforced plastic (FRP) rods provide additional strength and stability. The entire assembly is then encased in a durable polyethylene sheath, delivering excellent mechanical performance and environmental resistance.
Feature

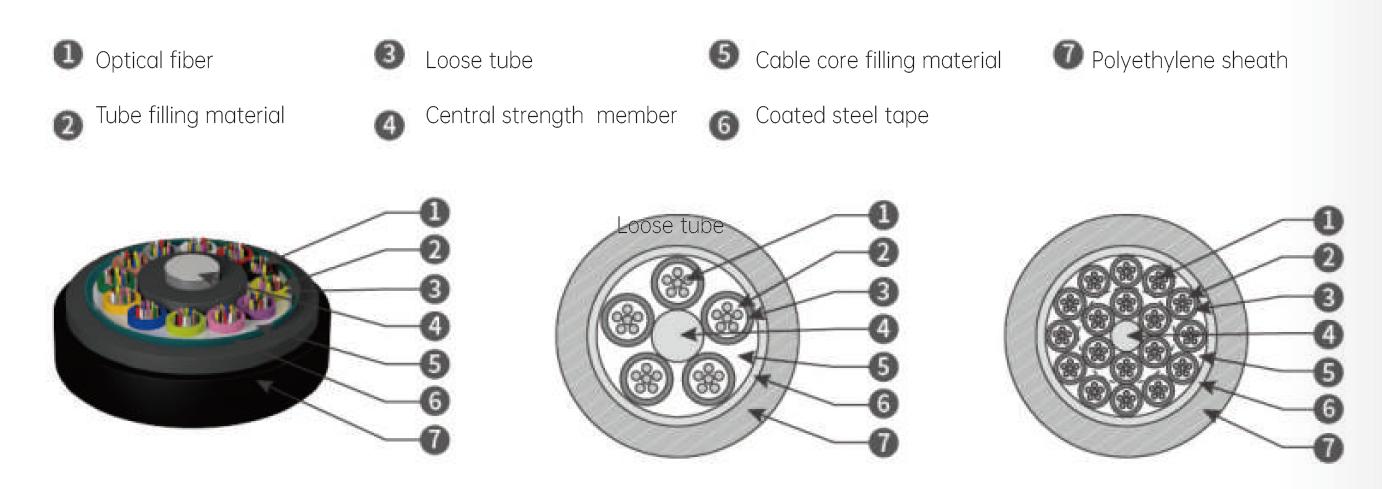

Cross-section Diagram
- Superior Mechanical and Temperature Performance
- Hydrolysis-Resistant Loose Tube Material
Offers excellent durability and pressure resistance, ensuring long-term protection of the optical fibers.
- Specialized Tube Grease Filling
Provides critical safeguarding for optical fibers, enhancing performance and longevity.
Protects the cable from ultraviolet radiation, extending its service life in outdoor environments.
- Reinforced Tensile Strength with Dual FRP Rods
Two parallel FRP (Fiber Reinforced Plastic) rods improve cable stability and tensile performance.
- Compact and Lightweight Design
Small diameter and low weight facilitate easy installation and handling, even for long-distance deployments.
Application Scenario
With its lightweight, non-metallic design and excellent resistance to electromagnetic interference, GYFXY cable is an economical and efficient choice for outdoor optical communication networks, particularly in duct installations, low-stress aerial applications, and EMI-sensitive areas.
- Duct Installation
GYFXY cable is ideal for duct installations, ensuring easy deployment and immunity to electromagnetic interference.
- Aerial Installation
With proper support measures, it can be used as an aerial cable, adapting to weather conditions such as wind and rain, suitable for areas with low mechanical stress.
- Electromagnetic Interference-Sensitive Areas
The non-metallic structure eliminates electromagnetic interference issues, making it ideal for areas near high-voltage power lines or industrial zones.
- Rural and Urban Communication Networks
Widely used in urban backbone networks and rural communication infrastructure, especially in scenarios where additional mechanical protection is unnecessary.
- Low-Mechanical-Stress Areas
Suitable for regions with minimal mechanical stress, such as flat terrains or areas without heavy machinery activity.
- Environments with High Corrosion or Moisture Levels
Its non-metallic and corrosion-resistant properties make it suitable for humid or corrosive environments, such as coastal areas or near chemical plants.
Optical Characteristics
|
Fiber Type
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(±20℃)
|
@850nm
|
-
|
-
|
≤3.0 dB/km
|
≤3.3 dB/km
|
|
@1300nm
|
-
|
-
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
-
|
-
|
|
@1550nm
|
≤0.22 dB/km
|
≤0.23dB/km
|
-
|
-
|
|
Bandwidth
(Class A)
|
@850nm
|
-
|
-
|
≥500 MHz·km
|
≥200 MHz·km
|
|
@1300nm
|
-
|
-
|
≥1000 MHz·km
|
≥500 MHz·km
|
|
Numerical Aperture
|
-
|
-
|
0.200±0.015NA
|
0.275±0.015NS
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1450nm
|
-
|
-
|
Technical Parameters
|
Type
|
Fiber Count
|
Cable Weight
Kg/km
|
Tensile Strength
Long/short term
N
|
Crush Force
Long/short term
N/100mm
|
Bending Radius
Static/Dynamic
mm
|
|
GYFXY-2~12Xn
|
2~12
|
81
|
400/1500
|
300/1000
|
10D/20D
|
|
GYFXY-14~24Xn
|
14~24
|
96
|
*Sizes and performance values can be specified by customers.
